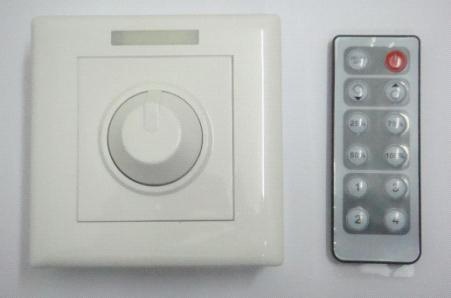

Dimmer Controller with IR (GN-DIM003)

Name: Dimmer Controller with IR (GN-DIM003)
Brand: all-electronics-online.com
SKU: 735397635
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	US $ 4-5/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN-DIM003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Control The LED Lamp
Application:	LED Products
Signal Transmission:	IR Remote Control
Certification:	CE
Transmission Distance:	<50m
Voltage:	12V

Product Description

12-key Infrared Dimmer Is a dedicated intelligent LED lighting dimmer controls, Adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, You can manually adjust the brightness stepless. IR wireless remote control can also be used to remote dimming; Standards for commercial or home a low 86-type switch socket box installation, LED Dimmer switches can be installed to meet the light needs of commercial or home lighting in the different time and different environments, To extend the LED life span, energy saving; Power and low-power LED lighting can be dimmin. Is used to control a variety of led lamps as the light source, For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; With competitive price, easy wiring, simple to use etc.; Through the infrared remote control and dimmers on the knob to adjust brightness; Gray level 255; With custom features, delay shutdown function and a fixed grayscale output.

Technical parameters
Working temperature: -20-60 ° C
Supply voltage: 5V, 12V~24V (for orders specify voltage)
Output: 1 channels
Controller dimension: L87× W87× H53mm
Remote dimension: L86× W33× H7mm
Packing size: L100W100H55mm
Net weight: 145g
Gross weight: 180g
Static power consumption: <1 W
Output current: <6 A
Output power: 5 V: <30W, 12V: <72W, 24V: <144W
