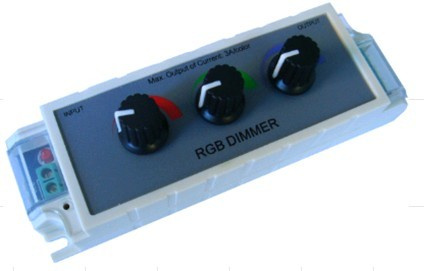

Dimmer Controller with RGB (GN-DIM005)

Name: Dimmer Controller with RGB (GN-DIM005)
Brand: all-electronics-online.com
SKU: 735397805
Availability: InStock
Rating: 5 (137 reviews)

Price:	US $ 4.5-5.5/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN-DIM005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Control The LED Lamp
Application:	LED Products
Certification:	CE
Universal:	Universal
Voltage:	12V
Material:	Plastic

Product Description

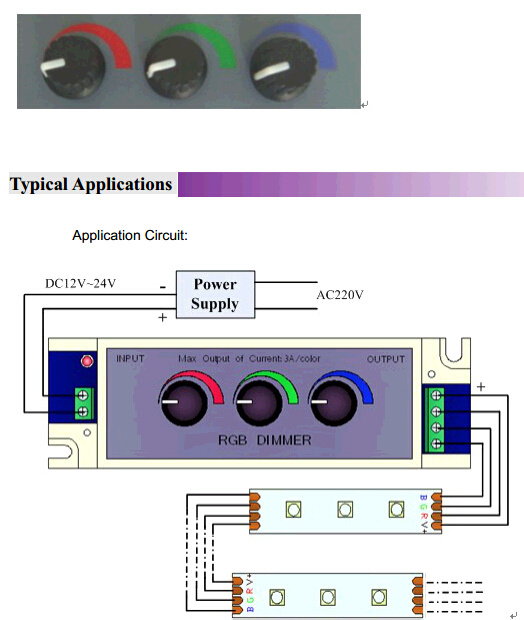

RGB three colors dimmer can achieve stepless dimming. There are 3 outputs in total. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness and color.

Working temperature: -20-60° C
Supply voltage: DC5V, 12V~24V
0utput: 3 channels
External dimension: L130*W40*H45 mm
Packing size: L136*W48*H59mm
Net weight: 100g
Gross weight: 130g
Static power consumption: <1W
Output current: <3A(each channel)
Output power: 5V: <45W, 12V: <108W, 24V: <216W

G-NOR OPTOELECTRONICS Co., Ltd. is a specialized supplier of optoelectronics. We offer wide range of optoelectronic products: Full series of LED lamp, LED display, LED DOT matrix, LED cluster and so on.

Nowadays we dedicated in design and research LED related items. For example: Full series LED Bulbs, LED strips, automobile LED lamp, etc. With a strong R&D department and production capability, we have produced many exquisitely designed high quality products that are favored by clients both at home and abroad. Adopting new technology and rich experience in research, we can provide hundreds of LED related products with superb quality and competitive price. Custom designs and specifications are most welcome. Our technologists meet your requirements promptly whether standard products or special designs.

The goals of Ningbo G-Nor Electronics are to make contribution to industry lighting, provide energy saving and environmently lighting for the world.
