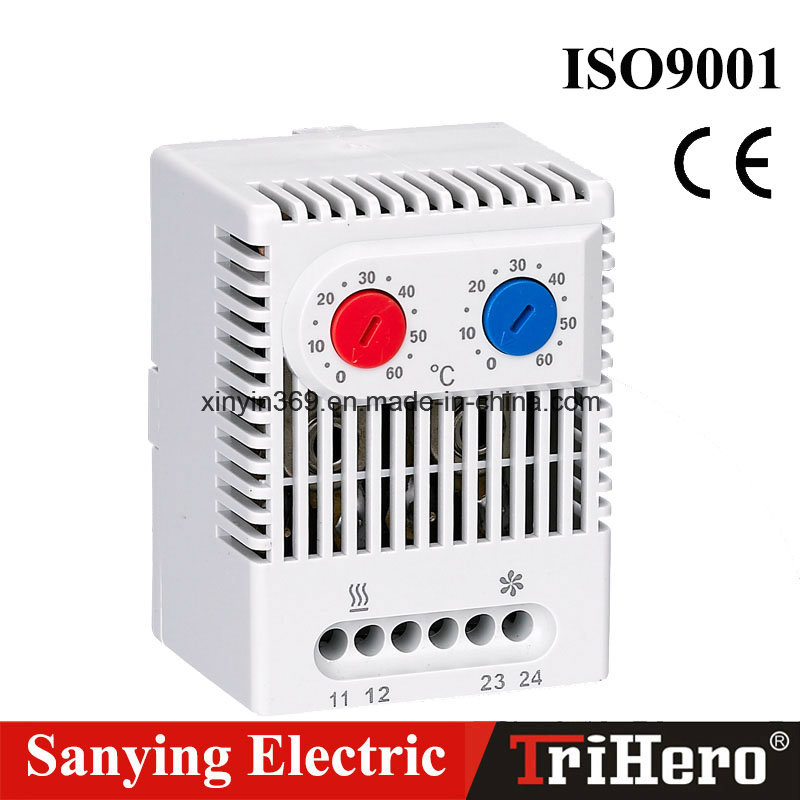

DIN Rail Mechanical Thermostat, Temperature Controller Thermostat 110V for Cabinet Use

Name: DIN Rail Mechanical Thermostat, Temperature Controller Thermostat 110V for Cabinet Use
Brand: all-electronics-online.com
SKU: 787843635
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZR 011

Product Description

high quality thermostat, temperature controller thermostat 110v ,temperature controller ZR011

thermostat, room thermostat,digital thermostat, digital thermometer ,mechanical Thermostat,thermostat switch

Specifications:

1.small compact thermotat
2. CE .ROHS
3. control range 0°C~60°C
4.2 years warranty

Features

Temperature Controller Thermostat 110v

♦ NO and NC in one casing

♦ Separate adjustable temperatures

♦ High switching capacity

♦ Terminals easily accessible

♦ Clip fixing

Introduction

Two thwemostat in one casing :
Thermostat (contact breaker, normally closed) for regulating heater.
Thermostat (contact maker ,normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded. Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.

Data and Drawing

high quality thermostat, temperature controller thermostat 110v ZR011

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostat bimetal
Contact type	snap-action contact
Contact resistance	<10mΩ
Service life	>100,000 cycles
	250VDC, 10(2)A
MAX. Switching capacity	120VDC, 15(2)A
	DC 30W
EMC	acc. to EN 55014-1-2,EN 61000-3-2, EN61000-3-3
Connection	4-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail ,EN60715 or for exit filter EF 118 Series
Casing	plastic according to UL94 V-0, light grey
Dimensions	67x50x46mm
Weight	approx. 90g
Fiting position	variable
Operating/Stroage temperautre	-20 to +80°C (-4 to +176°F)
Protection type	IP20

Art. No	Seting range		Seting range
01172.0-00	contact breaker, normally closed	0 to +60 °C	contact maker, normally open	0 to +60 °C
01172.0-01	contact breaker, normally closed	-32 to +140°F	contact maker, normally open	-32 to +140°F
01175.0-00	contact breaker, normally closed	-10 to +50 °C	contact maker, normally open	-20 to +80 °C
01175.0-01	contact breaker, normally closed	-14 to +122°F	contact maker, normally open	-68 to +176°F
01176.0-00*	contact maker, normally open	0 to +60 °C	contact maker, normally open	0 to +60 °C
01176.0-01*	contact maker, normally open	-32 to +140°F	contact maker, normally open	-32 to +140°F

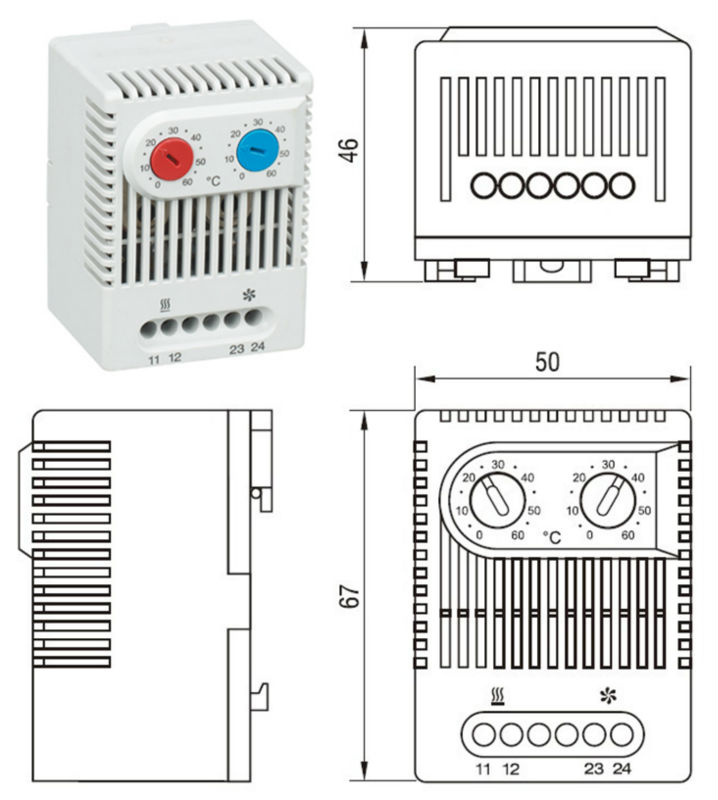

Temperature Controller Thermostat 110v Dimensions

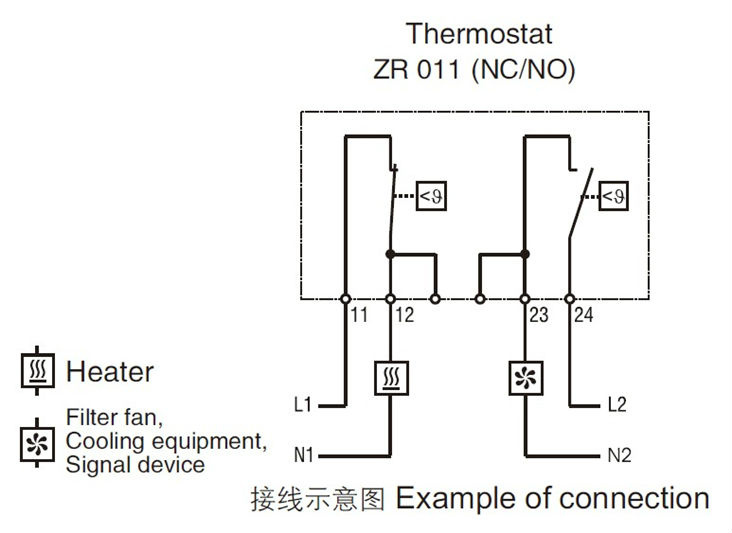

Wiring Diagram

temperature controller thermostat 110v

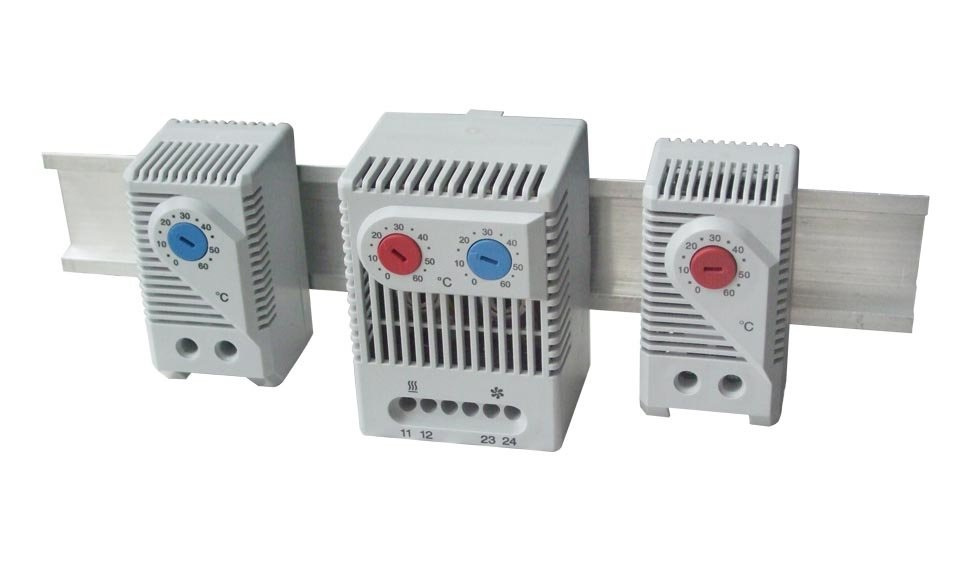

Picture of details

high quality thermostat, temperature controller thermostat 110v
