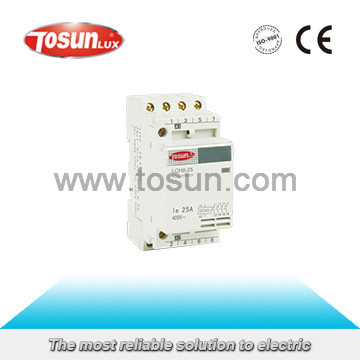

DIN Rail Modular AC Contactor

Name: DIN Rail Modular AC Contactor
Brand: all-electronics-online.com
SKU: 755116305
Availability: InStock
Rating: 4.9 (38 reviews)

Price:	US $ 2.6-7.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LCH8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Poles:	2, 4
Conventional Thermal Current (a):	16-63
Control Circuit Current (a):	16/6 -63/20
Control Circuit Voltage (V):	24, 220 / 230, 240
Control Power (Kw):	3/1 - 40/6.5
Size:	Miniature
Usage:	Household Appliances Relay

Product Description

Specification

Model	Number of Poles	Utilization Category	Conventional Thermal Current (A)	Control Circuit Current (A)	Control Circuit Voltage (V)	Control Power (KW)
LCH8-16	2	AC-1, AC-7a/AC-7b	16	16/6	24, 220/ 230, 240	3/1
LCH8-20		AC-1, AC-7a/AC-7b	20	20/7		4/1.2
LCH8-25		AC-1, AC-7a/AC-7b	25	25/8.5		5.4/1.5
LCH8-32		AC-1, AC-7a/AC-7b	32	32/12	220/ 230, 240	6.5/1.9
LCH8-40		AC-1, AC-7a/AC-7b	40	40/15		8.4/2.4
LCH8-63		AC-1, AC-7a/AC-7b	63	63/20		12/3.8
LCH8-16	4	AC-1, AC-7a/AC-7b	16	16/6	24, 220/ 230, 240	7.5/2.1
LCH8-20		AC-1, AC-7a/AC-7b	20	20/7		10/2.3
LCH8-25		AC-1, AC-7a/AC-7b	25	25/8.5		16/3
LCH8-32		AC-1, AC-7a/AC-7b	32	32/12	220/ 230, 240	20/3.8
LCH8-40		AC-1, AC-7a/AC-7b	40	40/15		26/4.8
LCH8-63		AC-1, AC-7a/AC-7b	63	63/20		40/6.5
