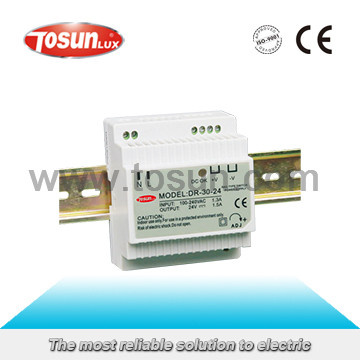

DIN Rail Switching Power Supply

Name: DIN Rail Switching Power Supply
Brand: all-electronics-online.com
SKU: 753373995
Availability: InStock
Rating: 4.6 (100 reviews)

Price:	US $ 12.51-13.04/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DR-30-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency:	84%
Output Type:	Single
Output Power:	1 - 50W
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Tosunlux

Product Description

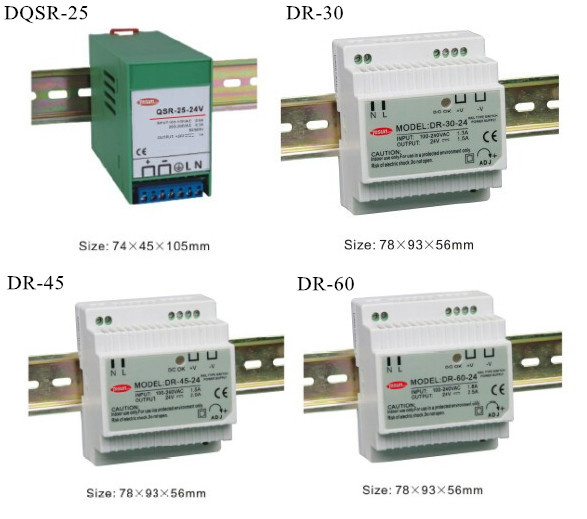

Model	Output	Tol.	Ripple and noise	Efficiency	Power
QSR-25-5	5V, 0.0-5A	±1%	80mV	60%	25W
QSR-25-12	12V, 0.0-2.0A	±1%	80mV	65%	25W
QSR-25-24	24V, 0.0-1A	±1%	100mV	72%	25W
QSR-25-28	48V, 0.0-0.5A	±1%	240mV	75%	25W

Model	Output	Tol.	Ripple and noise	Efficiency	Power
DR-30-5	5V, 0.0-3.0A	±2%	80mV	74%	30W
DR-30-12	12V, 0.0-2.0A	±1%	120mV	81%	30W
DR-30-15	15V, 0.0-2.0A	±1%	120mV	82%	25W
DR-30-24	24V, 0.0-1.5A	±1%	150mV	83%	30W

Model	Output	Tol.	Ripple and noise	Efficiency	Power
DR-45-5	5V, 0.0-5.0A	±2%	100mV	72%	45W
DR-45-12	12V, 0.0-3.5A	±1%	200mV	77%	42W
DR-45-15	15V, 0.0-2.8A	±1%	240mV	77%	42W
DR-45-24	24V, 0.0-2.0A	±1%	480mV	80%	48W

Model	Output	Tol.	Ripple and noise	Efficiency	Power
DR-60-5	5V, 0.0-6.5A	±2%	80mV	76%	60W
DR-60-12	12V, 0.0-4.5A	±1%	120mV	82%	60W
DR-60-15	15V, 0.0-4.0A	±1%	120mV	83%	60W
DR-60-24	24V, 0.0-2.5A	±1%	150mV	84%	60W

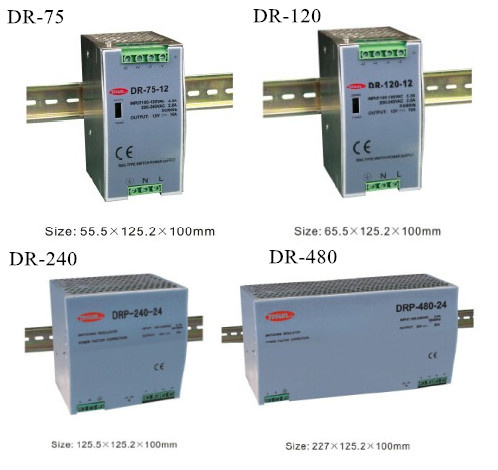

Model	Output	Tol.	Ripple and noise	Efficiency	Power
DR-75-12	12V, 0.0-6.2A	±2%	100mV	76%	60W
DR-75-24	24V, 0.0-3.1A	±1%	150mV	82%	60W
DR-75-48	48V, 0.0-1.5A	±1%	240mV	83%	60W

Model	Output	Tol.	Ripple and noise	Efficiency	Power
DR-120-12	12V, 0.0-10A	±2%	80mV	80%	120W
DR-120-24	24V, 0.0-5.0A	±1%	80mV	84%	120W
DR-120-48	48V, 0.0-2.5A	±1%	100mV	84%	120W

Model	Output	Tol.	Ripple and noise	Efficiency	Power
DRP-240-24	24V 0.0-10.0A	±1%	80mV	84%	240W
DRP-240-48	48V 0.0-5.0A	±1%	150mV	85%	240W

Model	Output	Tol.	Ripple and noise	Efficiency	Power
DRP-480-24	24V 0-20A	±1%	120mV	89%	480W
DRP-480-48	48V 0-10A	±1%	120mV	89%	480W

Why US?

1. Clients' benefit first.

2. Experinced in the line for more than 21 years.

3. Reasonable price and good source of raw material.

4. A group of professional inspectors monitor quality.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

6. Unique design for packing.

7. Experienced salesmen offer one-to-one service.

For More Information

www.tosun.com
www.tosunlux.com

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
