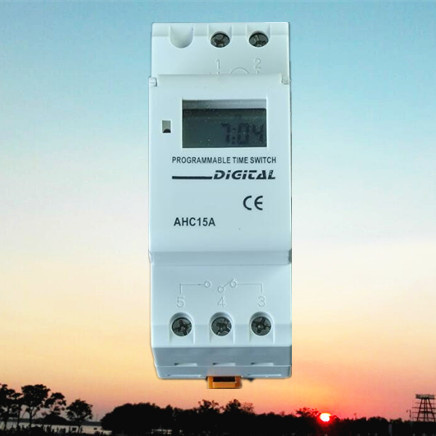

DIN-Rail Weekly Programmable Electronic Digital Timer (AHC15A)

DIN-Rail Weekly Programmable Electronic Digital Timer (AHC15A)
Price: US $ 4.3-12.78/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: AHC15A
Color: White
USB: No, or Can Be with If Necessary
Display: LCD
Cover: Transparent
OEM: Available

Product Description

Digital time switch with weekly program
Display: LCD
ON/OFF operation: 16 on & 16 off
3 year power reserve (lithium battery)
ON-OFF switching times
Permanent ON/OFF switching
Automatic summer/winter time changeover(AHC15A-20A-Three and AHC15A-20A-5 phase)
1 channels

AHC15Max. switching capacity at 250 V AC, cos φ = 0.610A
Operating Voltage110VAC220VAC110VAC - 240VACIncandescent/halogen lamps2300W/2800W
Frequency50-60 HzShortest switching time1 min
Output Current16A20A25A30A--Time accuracy≤ ± 2 s/day(Quartz)
Width2 modulesPower consumption7VA
Installation typeDIN-railProtection classII in accordance with EN 60 730-1
Power reserve3 yearsAmbient temperature-10 °C … +40 °C
Max. switching capacity at 250 V AC, cos φ = 116A--
