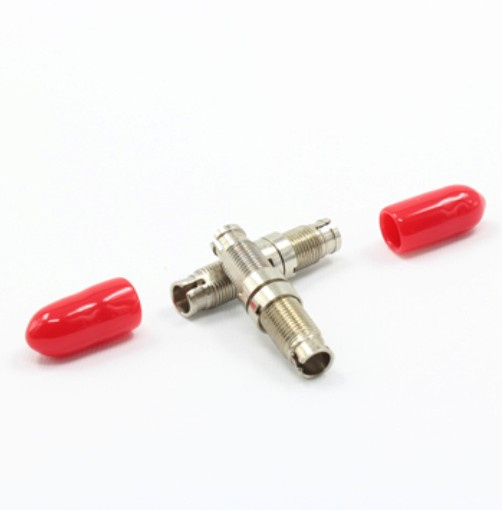

DIN Singlemode Simplex Fiber Optical Adapter

Name: DIN Singlemode Simplex Fiber Optical Adapter
Brand: all-electronics-online.com
SKU: 787013795
Availability: InStock
Rating: 4.3 (119 reviews)

Price:	US $ 1/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DIN
Color:	Metal
Cores:	Simplex
Fiber Mode:	Single Mode
Body Material:	Metal
Sleeve Material:	Ceramic
Transmission Medium:	Single-Mode
Structure:	DIN
Number Of Cores:	Single-Core
Connector Type:	DIN
Brand:	ODM

Product Description

Product Description

Brief Introduction
The DIN adapters are use ceramic sleeve to connect connectors although they are different size and appearance. Each species has a lot of types and colors can be chose. Single mode and multi-mode are different performance and price. These adapters can locking the connectors and get low insertion loss to transmission optical signal,our adapters are meet the Telcordia and IEC-61754 stander, all material compliance RoHS require.

Feature
1.Great repeatability and interchangeability.
2.Low insertion loss.
3.Hign reliability.
4.Compliant with IEC and Rohs standards.

Applications
1.Test equipment.
2.Connection of optical links in optical active devices
3.Jumper connection
4.Production and testing of optical devices
5.Optical fiber communication system,CATV
6.LANs and WANs
7.FTTx

SPECIFICATIONS

ITEM	Parameter
	Single-mode	Multi-mode
Adapter color	Blue,Green	Beige
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.15dB,Max≤0.20dB	typical≤0.15dB,Max≤0.20dB
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB Max change,500 mating
Adapter type	Show as drawing (page of 2~4)
Channels	Simplex,Duplex,4channels
Material	Plastic or metal
Sleeve material	Ceramic(ZrO2) or Customized
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
