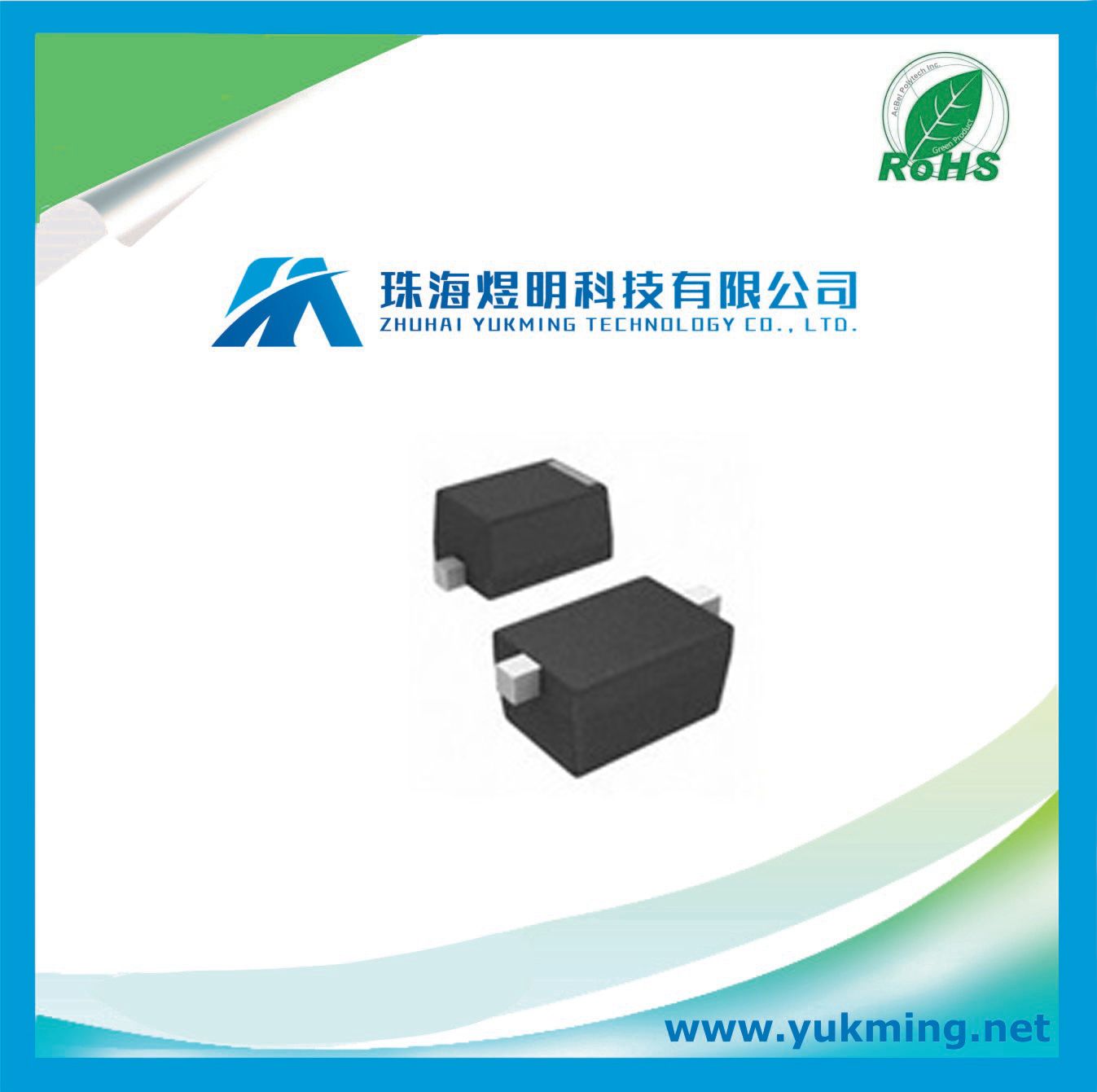

Diode 1n4148wt4 for General Purpose Electronic Component

Name: Diode 1n4148wt4 for General Purpose Electronic Component
Brand: all-electronics-online.com
SKU: 799222405
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	US $ 0.0293/Piece
Min Order:	3000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1N4148WT4
Part Status:	Active
Voltage - DC Reverse (Vr) (Max):	75V
Current - Average Rectified (Io):	200mA
Reverse Recovery Time (Trr):	4ns
Current - Reverse Leakage @ Vr:	5ua @ 75V
Capacitance @ Vr, F:	5PF @ 0V, 1MHz
Shape:	SOD-523f-2
Function:	Genaral Purpose
Encapsulation Structure:	SOD-523f-2

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Features
• Fast Switching Speed
• Ultra-Small Surface Mount Package
• For General Purpose Switching Applications
• High Conductance
• Lead Free By Design/RoHS Compliant (Note 1)
• Qualified to AEC-Q101 Standards for High Reliability
• "Green" Device, Notes 4 and 5

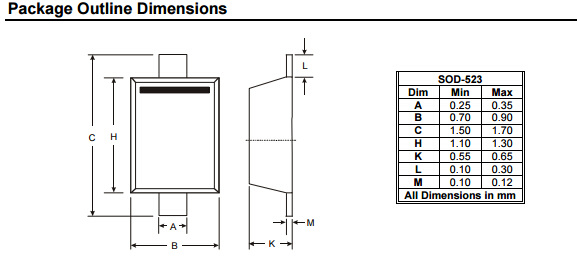

Mechanical Data
• Case: SOD-523
• Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminal Connections: Cathode Band
• Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
• Marking Information: See Page 2
• Ordering Information: See Page 2
• Weight: 0.0014 grams (approximate)

Applications
· Isolated Voltage Sensing in AC and Servo Motor Drives
· Isolated DC-Bus Voltage Sensing in Solar Inverters,
Wind Turbine Inverters
· Isolated Sensor Interfaces
· Signal Isolation in Data Acquisition Systems
· General Purpose Voltage Isolation

Category	Discrete Semiconductor Products
Family	Diodes - Rectifiers - Single
Manufacturer	Fairchild Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	5µA @ 75V
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523F
Supplier Device Package	SOD-523F
Operating Temperature - Junction	-55°C ~ 150°C
