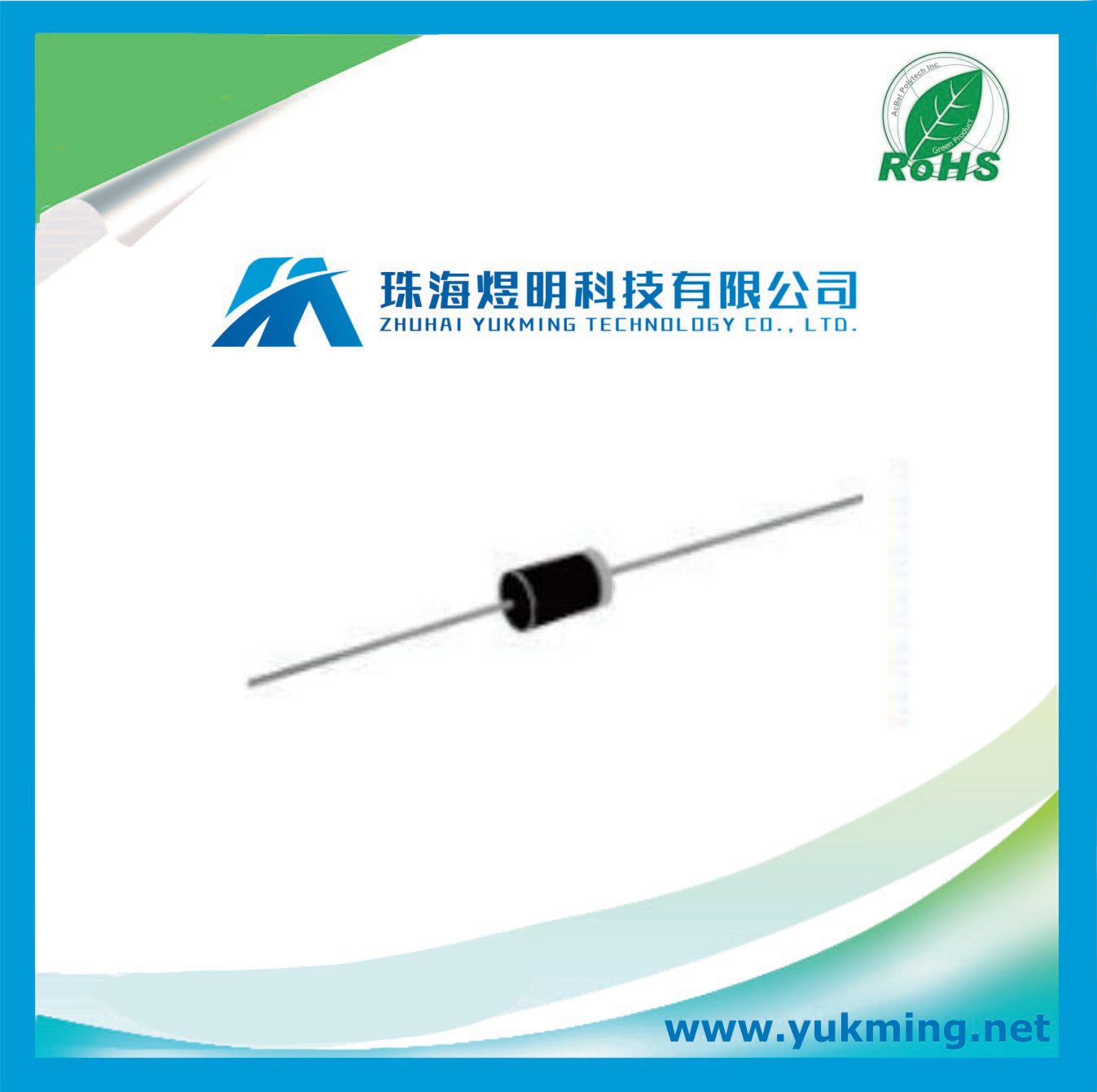

Diode 1n825A Temperature Compensated Zener Reference

Name: Diode 1n825A Temperature Compensated Zener Reference
Brand: all-electronics-online.com
SKU: 796767835
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 0.091/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1N825A
Shape:	Do-35

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Microsemi

PRODUCT CATEGORY
Zener

DESCRIPTION
Diode Zener Single 6.2V 5% 500mW 2-Pin DO-35

Now you can operate a diode in its reverse breakdown region by using a temperature compensated 1N825A zener diode from Microsemi. Its maximum leakage current is 2 μA. Its test current is 7.5 mA. Its maximum power dissipation is 500 mW. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 175 °C. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%.

Specifications
Type Temperature Compensated
Configuration Single
Test Current (mA) 7.5
Nominal Zener Voltage (V) 6.2
Maximum Zener Impedance (Ohm) 10
Zener Voltage Tolerance 5%
Maximum Reverse Leakage Current (uA) 2
Maximum Voltage Regulation (mV) 19

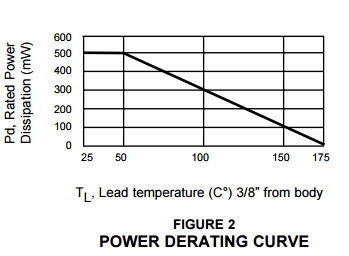

Maximum Power Dissipation (mW) 500
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 175

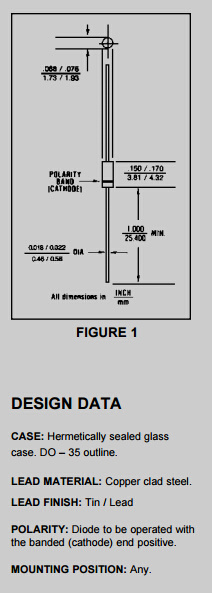

Package Diameter (mm) 2.29(Max)
Mounting Through Hole
Package Length (mm) 5.08(Max)
PCB changed 2
Standard Package Name DO-204-AH
Supplier Package DO-35
Pin Count 2
Lead Shape Through Hole

FEATURES
• Temperature compensated
• Reference voltage range:
5.89 to 6.51 V (typ. 6.20 V)
• Low temperature coefficient range:
max. 0.0005 to 0.01 %/K.

APPLICATION
• Voltage reference sources in
measuring instruments such as
digital voltmeters.
