Diode Mmsz5233bt1g0sr of Zener Voltage Regulator

Name: Diode Mmsz5233bt1g0sr of Zener Voltage Regulator
Brand: all-electronics-online.com
SKU: 797017965
Availability: InStock
Rating: 4.4 (104 reviews)

Price:	US $ 0.049/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MMSZ5233BT1G0SR

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Description
Zener Voltage Regulators
Three complete series of Zener diodes are offered in the convenient,

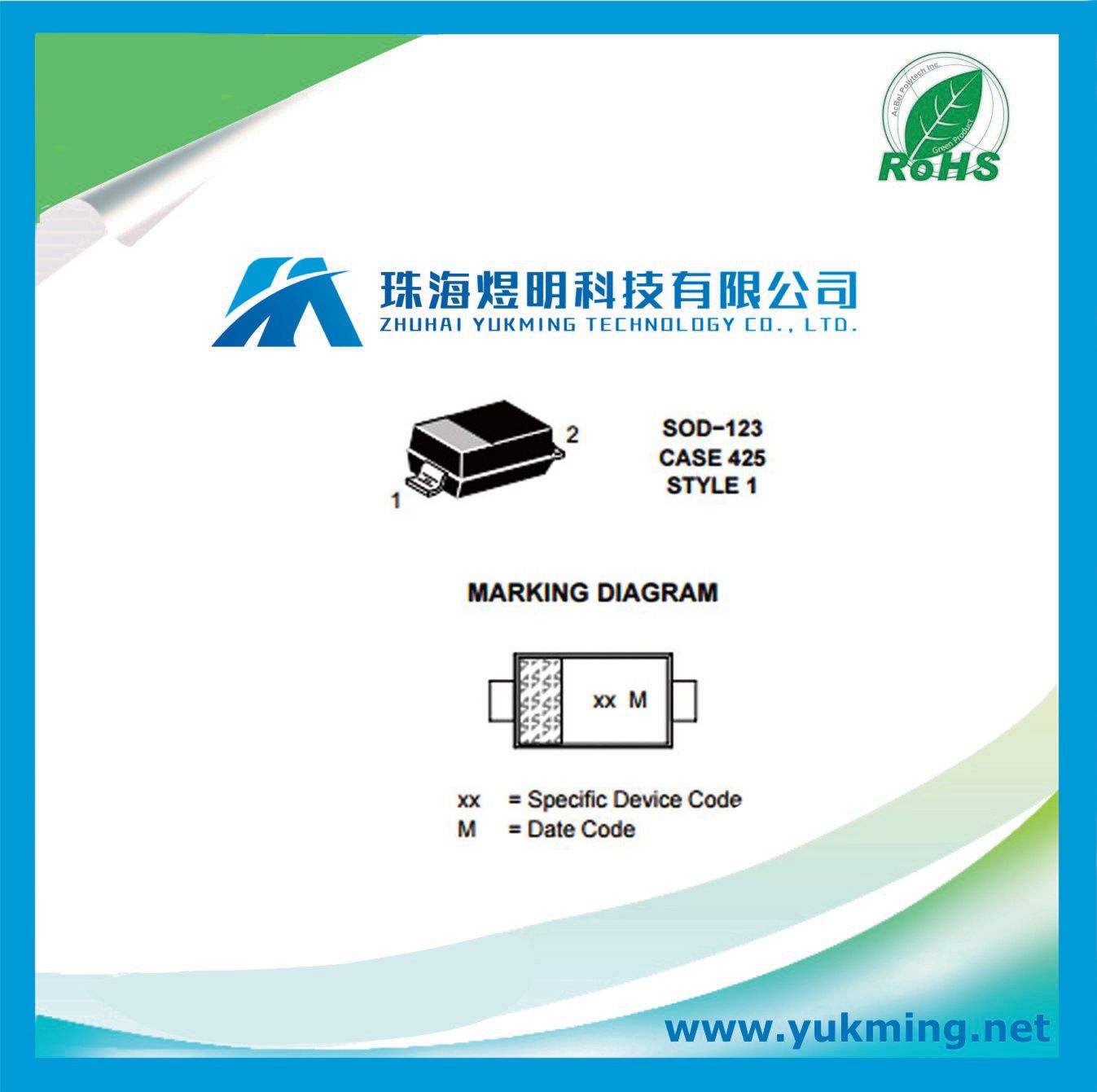

surface mount plastic SOD−123 package. These devices provide a
convenient alternative to the leadless 34−package style.

Features
• 500 mW Rating on FR−4 or FR−5 Board
• Wide Zener Reverse Voltage Range − 2.4 V to 110 V
• Package Designed for Optimal Automated Board Assembly
• Small Package Size for High Density Applications
• General Purpose, Medium Current
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• Pb−Free Packages are Available

Mechanical Characteristics
CASE: Void-free, transfer-molded, thermosetting plastic case
FINISH: Corrosion resistant finish, easily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260°C for 10 Seconds
POLARITY: Cathode indicated by polarity band
FLAMMABILITY RATING: UL 94 V−0

Category	Discrete Semiconductor Products
Family	Diodes - Zener - Single
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	6V
Tolerance	±5%
Power - Max	500mW
Impedance (Max) (Zzt)	7 Ohm
Current - Reverse Leakage @ Vr	5µA @ 3.5V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	SOD-123
Supplier Device Package	SOD-123
