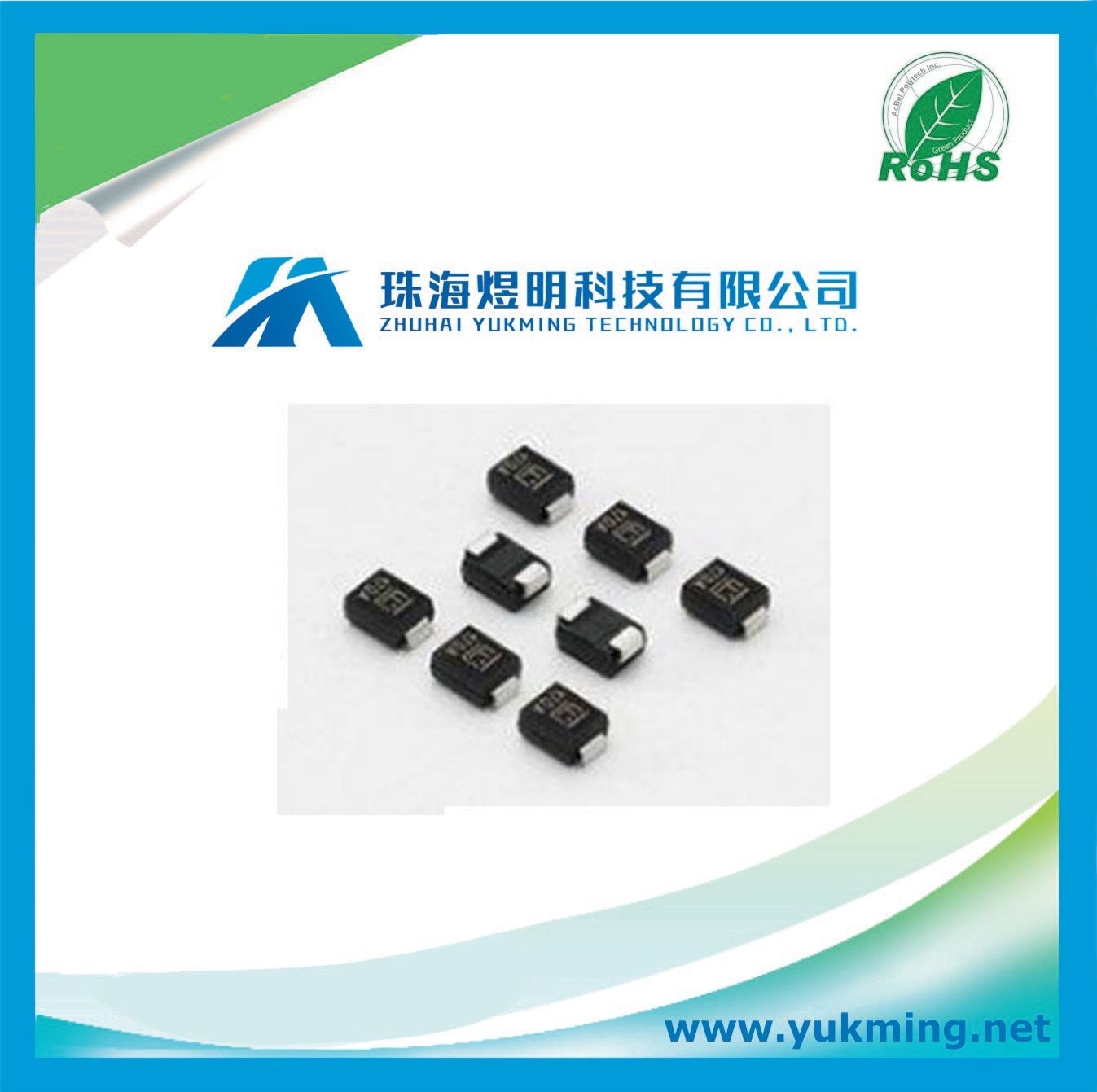

Diode P6SMB100ca of Transient Voltage Suppression

Name: Diode P6SMB100ca of Transient Voltage Suppression
Brand: all-electronics-online.com
SKU: 797150785
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 0.0047/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	P6SMB100CA
Shape:	Do-214AA

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Description
The P6SMB series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.

Features
• For surface mounted applications in order to optimize board space.
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Typical ID less than 1.0µA above 10V
• Plastic package has Underwriters Laboratory
Fammability Classification 94V-O
• High temperature soldering : 260°C /10 seconds at terminals
• In compliance with EU RoHS 2002/95/EC directives

Mechanical Data

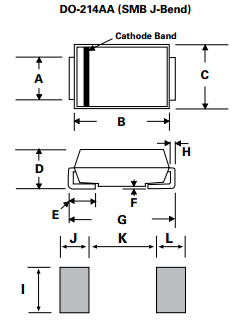

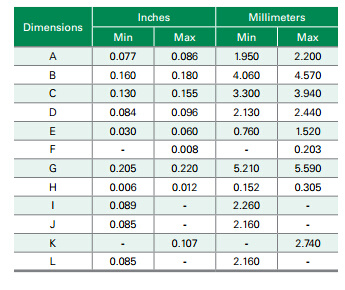

• Case: JEDEC DO-214AA ,Molded plastic over passivated junction
• Terminals: Solder plated,solderable per MIL-STD-750,Method 2026
• Polarity: Color band denotes positive end (cathode)
• Standard Packaging:12mm tape (EIA-481)
• Weight: 0.003 ounce, 0.093 gram

Category	Circuit Protection
Family	TVS - Diodes
Manufacturer	Bourns Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	85.5V
Voltage - Breakdown (Min)	95V
Voltage - Clamping (Max) @ Ipp	137V
Current - Peak Pulse (10/1000µs)	4.5A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
