Diode Pesd15vs4ud of Quadruple ESD Protection

Name: Diode Pesd15vs4ud of Quadruple ESD Protection
Brand: all-electronics-online.com
SKU: 799594735
Availability: InStock
Rating: 5 (105 reviews)

Price:	US $ 0.1673/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PESD15VS4UD
Family:	ESD Protection Diode Arrays
ESD Protection Of:	4 Lines
ESD Protection:	3kv
Max. Peak Pulse Power:	Ppp = 200 W
Ultra Low Leakage Current:	Irm = 50 PA
Low Clamping Voltage:	Vcl = 12 V at Ipp = 20 a

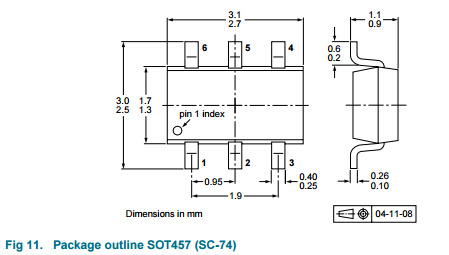

Shape:	Sot-457

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

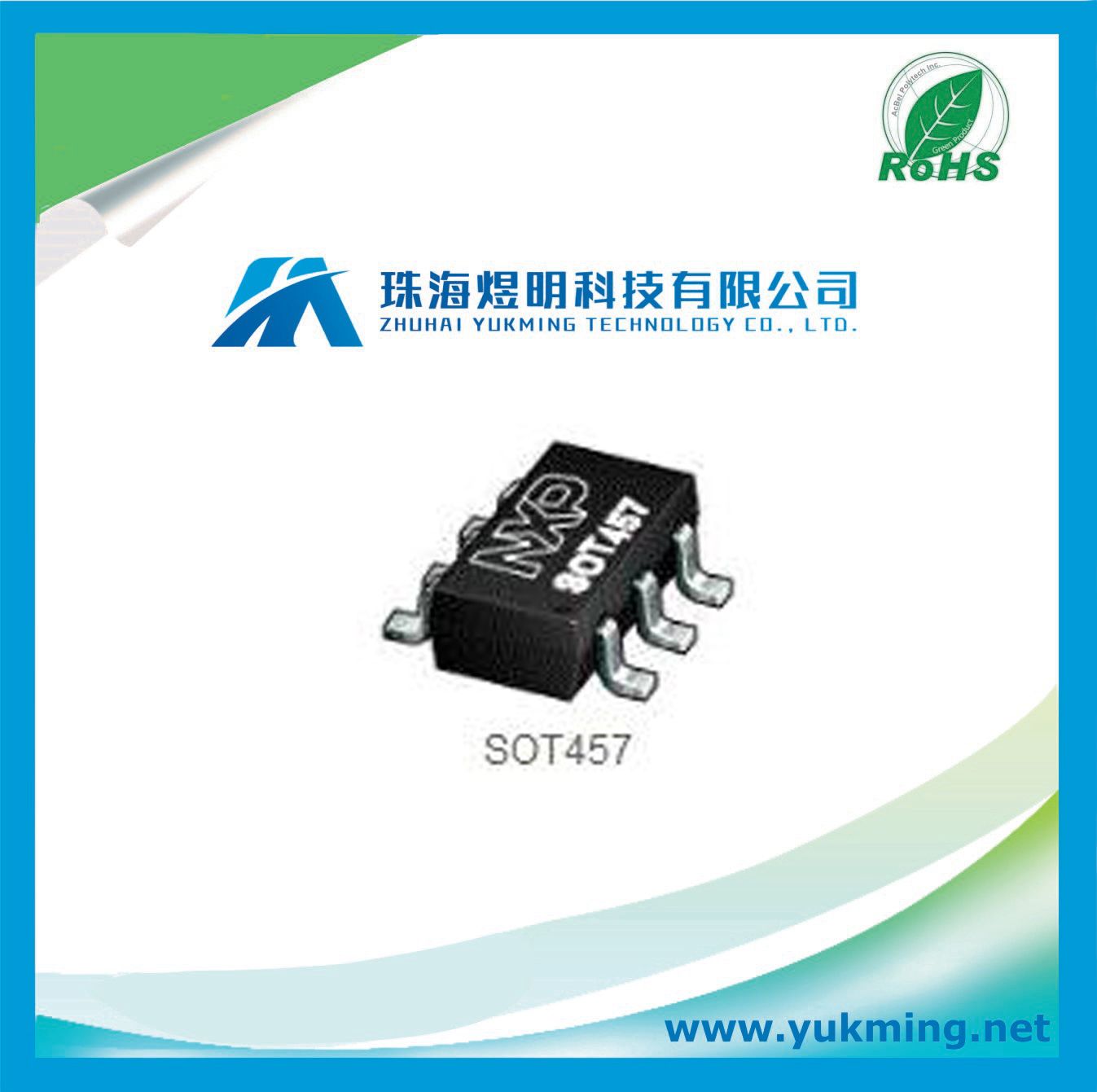

Quadruple ESD protection diode arrays in a SOT457 package

General description
Quadruple ElectroStatic Discharge (ESD) protection diode arrays in a SOT457 (SC-74)
small Surface-Mounted Device (SMD) plastic package designed to protect up to 4 signal
lines from the damage caused by ESD and other transients.

Features
ESD protection of up to 4 lines
ESD protection up to 30 kV
Max. peak pulse power: PPP = 200 W
IEC 61000-4-2; level 4 (ESD)
Ultra low leakage current: IRM = 50 pA
IEC 61000-4-5; (surge); IPP up to 20 A
Low clamping voltage: VCL = 12 V at IPP = 20 A
AEC-Q101 qualified

Target Applications
Computers and peripherals
Communication systems
Audio and video equipment
Portable electronics
Cellular handsets and accessories
Subscriber Identity Module (SIM) card protection
