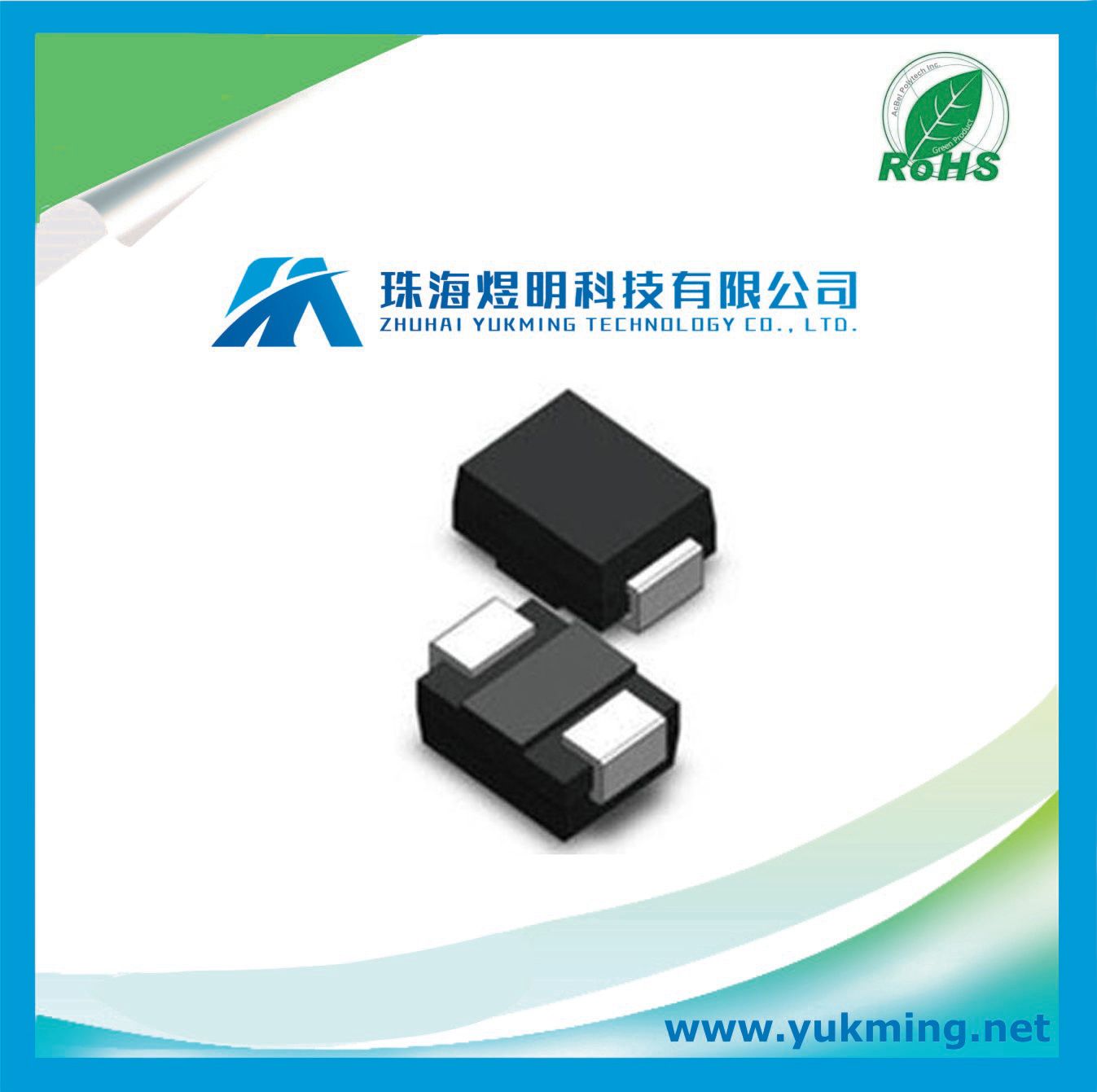

Diode Smbj16ca of SMT Voltage Suppressor Electronic Component

Name: Diode Smbj16ca of SMT Voltage Suppressor Electronic Component
Brand: all-electronics-online.com
SKU: 796329265
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	US $ 0.047/Piece
Min Order:	750/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMBJ16CA
Shape:	Do-214-AA

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER

Fairchild Semiconductor

PRODUCT CATEGORY

TVS

DESCRIPTION

Diode TVS Single Bi-Dir 16V 600W 2-Pin SMBJ T/R

Save yourself hassle by equipping your device with Fairchild Semiconductor's SMBJ16CA TVS diode which will react to sudden or momentary overvoltage conditions. Its test current is 1 mA. This device's maximum clamping voltage is 26 V and minimum breakdown voltage is 17.8 V. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.

Features
· 600W Peak Pulse Power Dissipation
· 5.0V - 170V Standoff Voltages
· Glass Passivated Die Construction
· Uni- and Bi-Directional Versions Available
· Excellent Clamping Capability
· Fast Response Time
· Lead Free Finish/RoHS Compliant (Note 4)

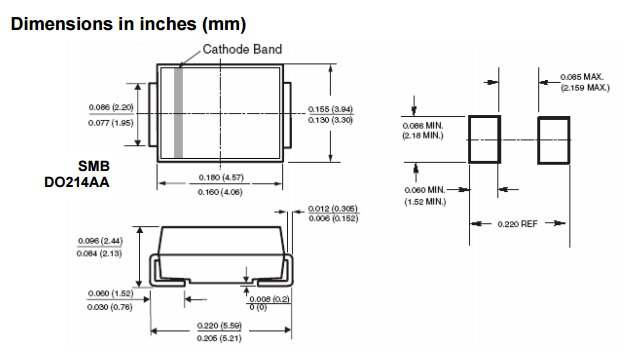

Mechanical Data
· Case: SMB
· Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
· Moisture Sensitivity: Level 1 per J-STD-020C
· Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
· Polarity Indicator: Cathode Band
(Note: Bi-directional devices have no polarity indicator.)
· Marking: Date Code and Marking Code
See Page 4
· Ordering Info: See Page 4
· Weight: 0.1 grams (approximate)

Specifications
EU RoHS Compliant
Direction Type Bi-Directional
Maximum Reverse Stand-Off Voltage (V) 16
Maximum Reverse Leakage Current (uA) 5
Maximum Clamping Voltage (V) 26
Maximum Peak Pulse Current (A) 23.1
Minimum Breakdown Voltage (V) 17.8
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Operating Junction Temperature (°C) -55 to 150
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Unknown
Mounting Surface Mount
Package Height (mm) 2.45(Max)
Package Length (mm) 4.75(Max)
Package Width (mm) 3.95(Max)
PCB changed 2
Standard Package Name DO-214-AA
Supplier Package SMBJ
Pin Count 2
Lead Shape J-Lead
