Diode Tvs Single

Prod Model:	SM6T150A
Maximum Reverse Stand-off Voltage (V):	128
Maximum Reverse Leakage Current (Ua):	0.2
Maximum Clamping Voltage (V):	265
Maximum Peak Pulse Current (a):	15
Minimum Breakdown Voltage (V):	143
Test Current (Ma):	1
Peak Pulse Power Dissipation (W):	600

Product Description

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
TVS

DESCRIPTION

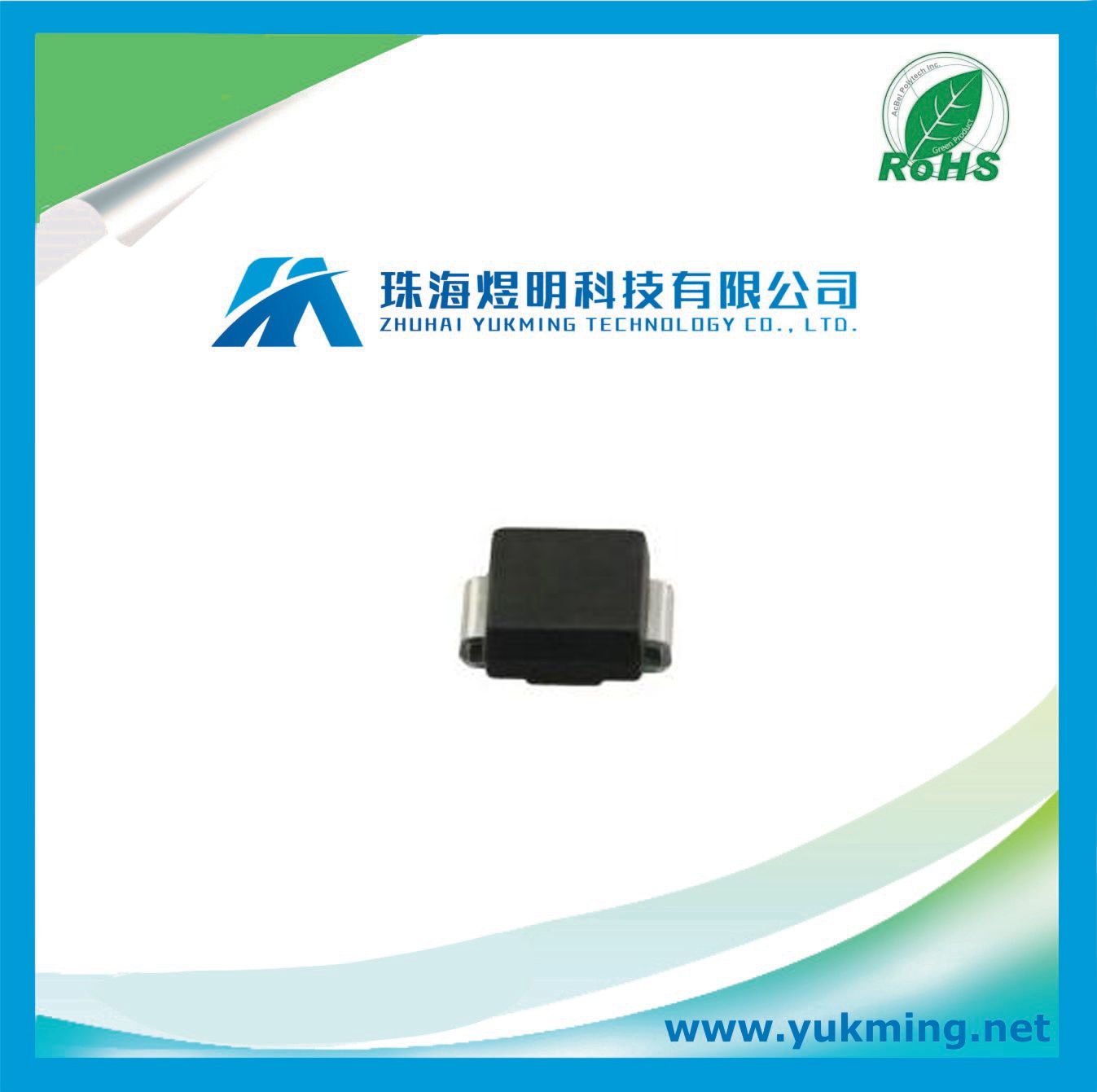

Diode TVS Single Uni-Dir 128V 600W 2-Pin SMB T/R

Protect vulnerable electronic circuits against over voltages by equipping your device with this SM6T150A TVS diode from STMicroelectronics. Its maximum leakage current is 0.2 μA. This device's maximum clamping voltage is 265 V and minimum breakdown voltage is 143 V. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Specifications
EU RoHS Compliant
Direction Type Uni-Directional
Maximum Reverse Stand-Off Voltage (V) 128
Maximum Reverse Leakage Current (uA) 0.2
Maximum Clamping Voltage (V) 265
Maximum Peak Pulse Current (A) 15
Minimum Breakdown Voltage (V) 143
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Operating Junction Temperature (°C) -55 to 150
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Yes
Mounting Surface Mount
Package Height (mm) 2.45(Max)
Package Length (mm) 4.6(Max)
Package Width (mm) 3.95(Max)
PCB changed 2
Standard Package Name DO-214-AA
Supplier Package SMB
Pin Count 2
Lead Shape J-Lead
