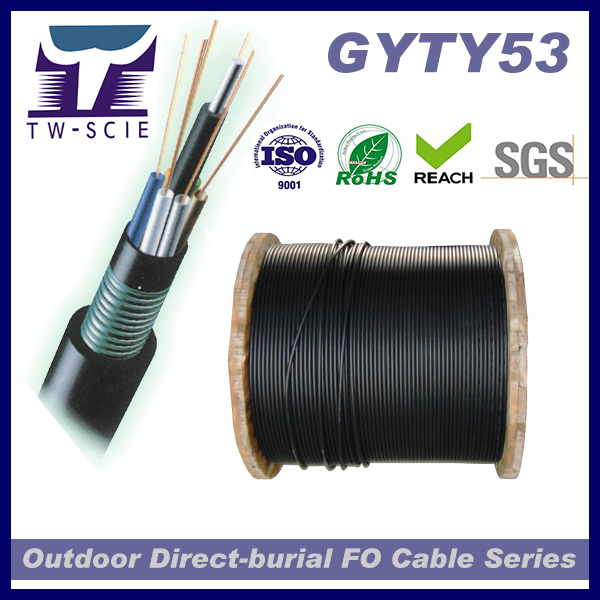

Direct Burial Layer Stranded Optical Cable/Cable Optics GYTY53

Product Description

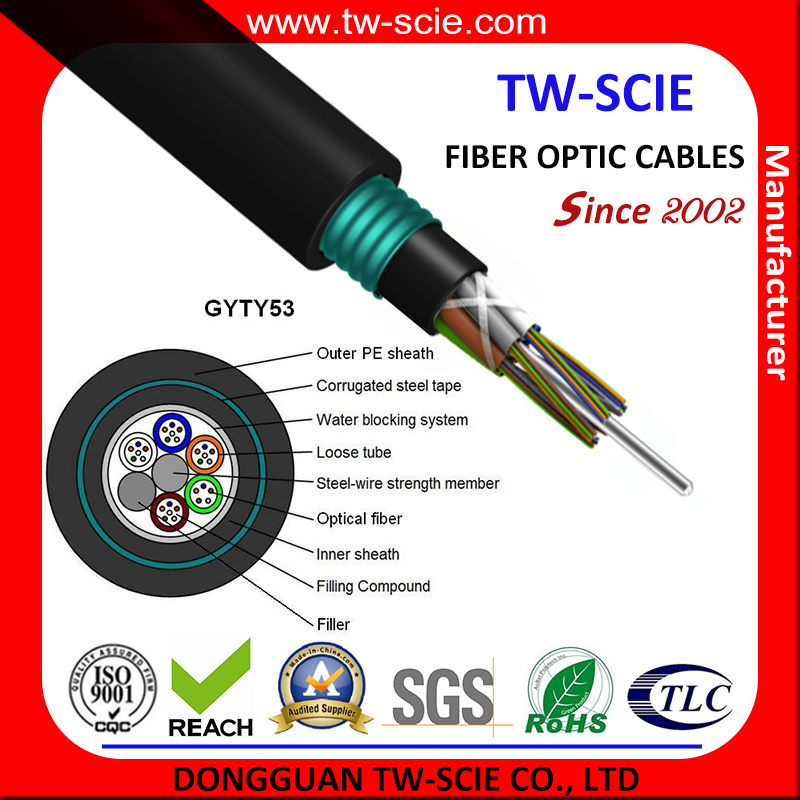

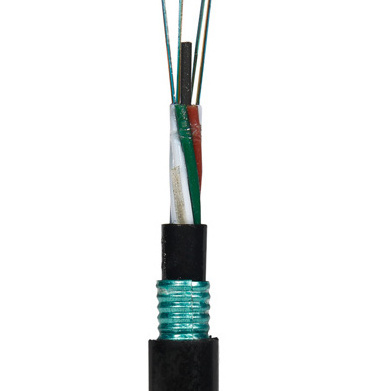

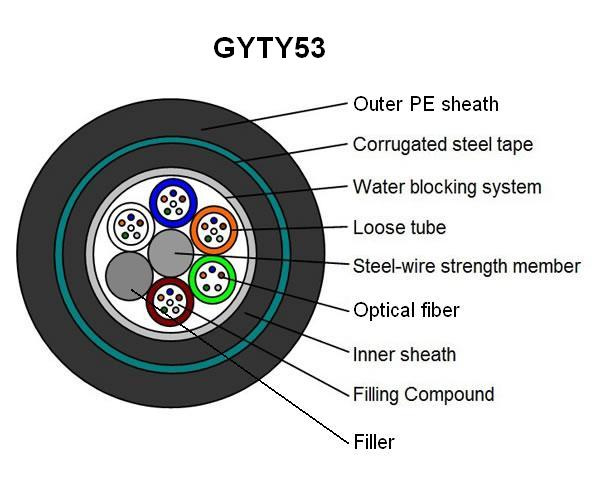

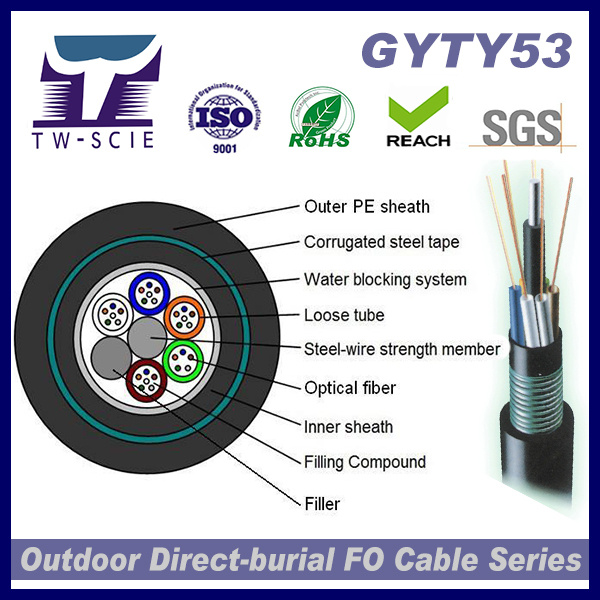

The fibers,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE) for cable with high fiber count,locates in the center of core as metallic strength member.Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.An Aluminum Polyethylene Laminate(APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress.Then the cable core is covered with a thin PE inner sheath.After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE sheath.

Fiber Optic Cable Feature Description
1. Good mechanical and temperature performance.
2. Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable form ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
6. Loose tubs filling compound
7. Corrugated Steel Tape enhancing mostiure-proof
8. Water-blocking material
