Direct Buried Armored 12 Core Network Fiber Cable

Prod Model:	GYTA33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Material:	Doped Silica
Fiber Type:	Sm G652D
Fiber Counts:	2-288
Material Of Jacket:	HDPE/Lszh Sheath/Flame Retardant Sheath/Anti-Roden
Loose Tube:	Stranded Loose Tube/Sz Stranded
Armored:	Aluminium Tape/Steel Tape
Strength Member:	Steel Wire/FRP
Bending Radius:	Static 15*Cable-D: Dynamic 30*Cable-D
Operating Temperature:	-40 ~ +60 C
Applications:	Direct Buried
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-288
Brand:	Efon
Sheath Material:	HDPE/Flame Retardant Sheath/Anti-Roden

Product Description

Performance

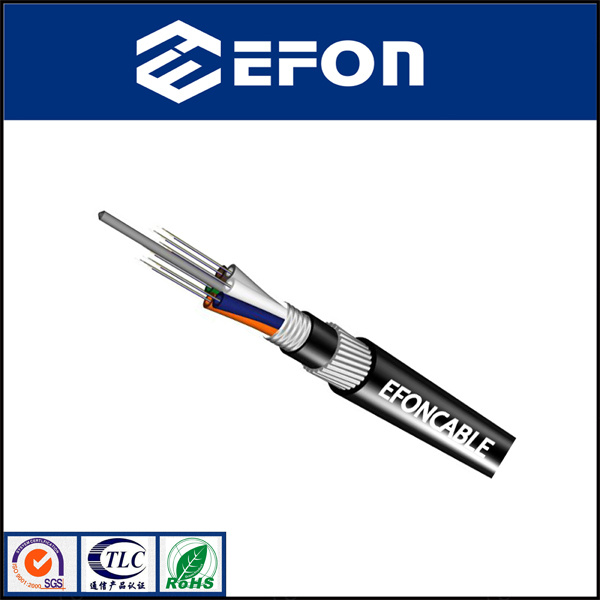

GYTA33 is an outdoor communication optical cable of metallic strength member of the loose tube jelly-filled structure, with Al-polyethylene laminated sheath and single-layer thin round steel wire armored polyethylene outer sheath.
The loose tubes are made of high modulus plastics (PBT) and filled withwater resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. The corrugated aluminum tape is longitudinally applied over the cable core, and combined with polyethylene (PE) inner sheath. Galvanized steel wires are stranded around inner sheath, and then extruded with PE outer sheath.

Feature
1, High quality optical fiber provides good transmission performance
2, Accurate fiber excess length control ensures excellent mechanical and temperature performance
3, Special filling gel filled loose tubes provide perfect optical fiber protection
4,All section water blocking ensure the cable core reliable performance of moisture-proof and water block
5, Corrosion resistance phosphated steel wire with high Young's modulus as central strength member givesdesirable tensile strength
6, Longitudinally Armor with both side coated aluminum tape and stranded steel wires armoring meet therequirements of high crush resistance, tensile strength, bulletproof property, heavy duty direct buryunderwater installation
7, Strict craft and raw material control enable lifespan over 30 years

Performance
Applications: Long-distance communication and indoor communication
Way of laying: Direct burial, underwater laying
Operating temperature: -40 ~ + 70 ° C
Bend radius: Static 15x cable diameter
Dynamic 30x cable diameter

Mechanical Performance:
Max Tension Performance: IEC 60794–1-2-E
Max. Operation Tension: IEC 60794–1-2-E1
Crush Test: IEC 6079 –1-2-E3
Impact Test: IEC 60794–1-2-E4
Repeated Bending: IEC 60794–1-2-E6
Torsion Test: IEC 60794–1-2-E7
Cable bend: IEC 60794–1-2-E11A
Attenuation Coefficient: ITU-T G. 652
Structural Test: IEC-60793-1-20
Environmental Performance
Temperature Cycling: IEC 60794–1-2-F1
Water Penetration: IEC 60794–1–2-F5B
Filing Compound Flow: IEC 60794-1-E14

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2 ~ 30	15.5	407	6	5	10000	4000	5000	3000
32 ~ 36	16.0	437	6	6	10000	4000	5000	3000
38 ~ 60	16.6	463	12	5	10000	4000	5000	3000
62 ~ 72	17.2	499	12	6	10000	4000	5000	3000
>72	Available upon customer's request
Note: 1. According to different applications, GYTA333, GYTS33, GYTS333, GYTY53+33, GYTY53+333, GYTA53+33, GYTA53+333 can provided. 2.  S pecial cable structure can be designed and manufactured on customer's request.
