Discrete Semiconductor Transistors - Fets, Mosfets

Name: Discrete Semiconductor Transistors - Fets, Mosfets
Brand: all-electronics-online.com
SKU: 829581895
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 0.1-2/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK100S04N1L
Drain To Source Voltage (Vdss):	40V
Power Dissipation (Max):	100W (Tc)
Operating Temperature:	175 Deg C (Tj)

Product Description

Hello, Thank you for your visiting!

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Categories Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
Manufacturer Toshiba Semiconductor and Storage
Series U-MOSVIII-H
Packaging ? Digi-Reel® ?
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40V
Current - Continuous Drain (Id) @ 25°C 100A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Max) @ Id 2.5V @ 500µA
Gate Charge (Qg) (Max) @ Vgs 76nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 5490pF @ 10V
Vgs (Max) ±20V
FET Feature -
Power Dissipation (Max) 100W (Tc)
Rds On (Max) @ Id, Vgs 2.3 mOhm @ 50A, 10V
Operating Temperature 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package DPAK+

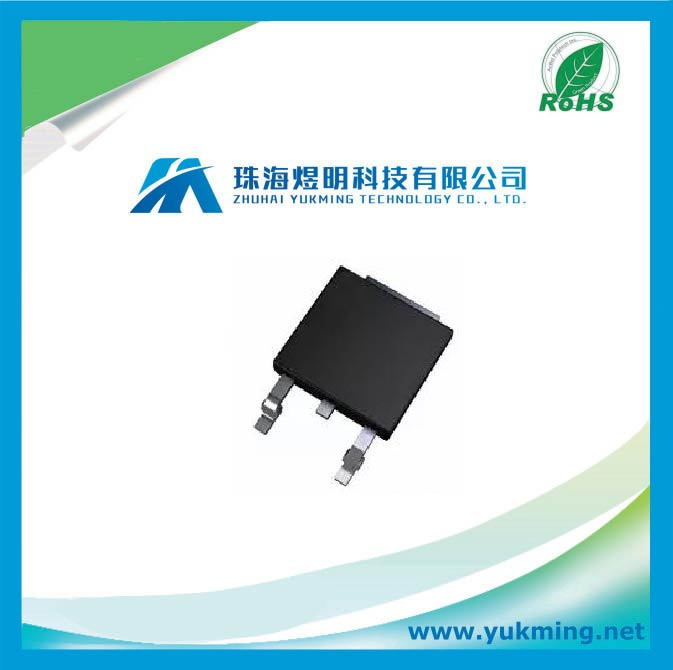

Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
