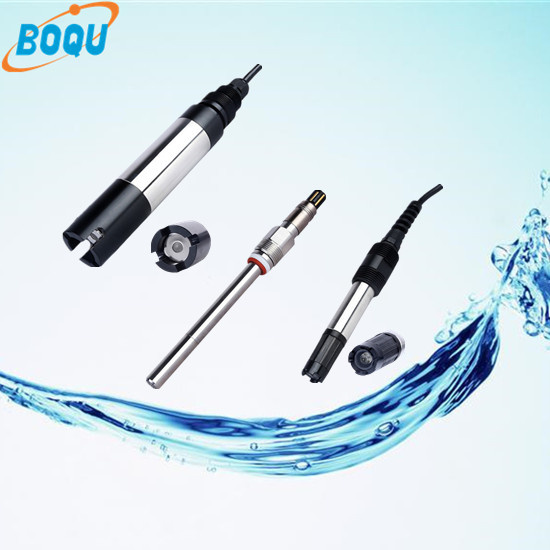

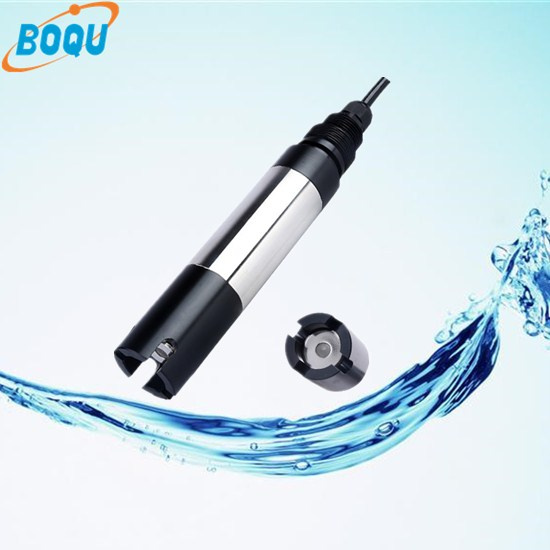

Dissolved Oxygen Probe Do Electrode (DOG-209FA)

Name: Dissolved Oxygen Probe Do Electrode (DOG-209FA)
Brand: all-electronics-online.com
SKU: 758928225
Availability: InStock
Rating: 4.9 (43 reviews)

Price:	US $ 160-1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DOG-209FA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	0-20mg/L
Electrode Shell Material:	PVC or 316L Stainless Steel
Output:	Analog Sensor
Usage:	Liquid Level Sensor, Thermal Sensor
Theory:	Polarography
Membrane:	Steel Grit Metal Membrane

Product Description

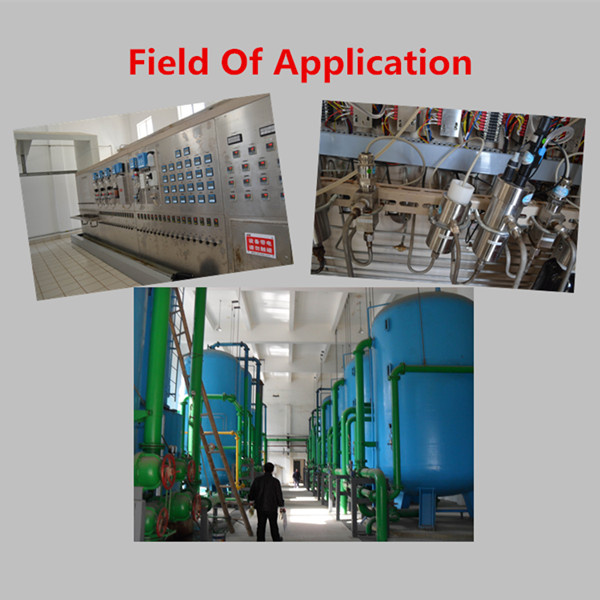

DOG-209FA type oxygen sensor improved from the previously dissolved oxygen electrode, change diaphragm into a grit mesh metal membrane, with high stability and stress resistant, can be used in a more harsh environment, maintain volume is smaller, suitable for urban sewage treatment, industrial wastewater treatment, aquaculture and environmental monitoring and other fields of continuous measurement of dissolved oxygen.

	Technical Indexes
1.	Ultra resistant to pressure (0.6Mpa) wallop, imported (grit mesh metal membrane)
2.	Up thread: M32 x 2.0
3.	Measuring range: 0-20mg / L
4.	Measuring principle: Current type sensor (polarographic electrode)
5.	Breathable membrane thickness: 100μm
6.	Electrode shell material: PVC or 316L stainless steel
7.	Temperature compensation resistance: Pt100, Pt1000, 2.252K etc
8.	Sensor life:> 2 years
9.	Cable length: 5m
10.	Detection low limit: 0.01 mg / L (20ºC)
11.	Measurement up limit: 40 mg / L
12.	Response time: 2min (90%, 20ºC)
13.	Polarization time: 60min
14.	Minimum flow rate: 2.5cm / s
15.	Drift: <2% / month
16.	Measurement error: <± 0.01 mg / L
17.	Output Current: 50-80nA/0.1 mg / L Note: Maximum current 3.5uA
18.	Polarization voltage: 0.7V
19.	Zero oxygen: <0.01 mg / L
20.	Calibration interval:> 60 days
21.	Measured water temperature :0-60 ºC

Shanghai Boqu Instrument Co., Ltd was established in 2007, and located in Kangqiao Town Pudong New Area Shanghai. It is the professional manufacturer of electrochemical instrumentation and electrode combine with the R&D, production and sales. The main products include pH, ORP, conductivity, ion concentration, dissolved oxygen, turbidity, alkali acid concentration and electrode etc.

Our company focus on product quality and after-sales service, adhere to the quality principle of"Aspiring excellence, Creating perfect", obedience to the work style of "Integrity rigorous, Pragmatic and Efficient", to promote "Innovation, Development and Win-Win " spirit of enterprise, with advanced technology and equipment, professional technology as the foundation, high-quality products and perfect after-sales service won the trust of our customers and partners!

We sincerely hope that on the basis of mutual benefit with friends at home and abroad to join hands in creating development and harmonious! Welcome domestic and foreign merchants to come to seek common cause!
