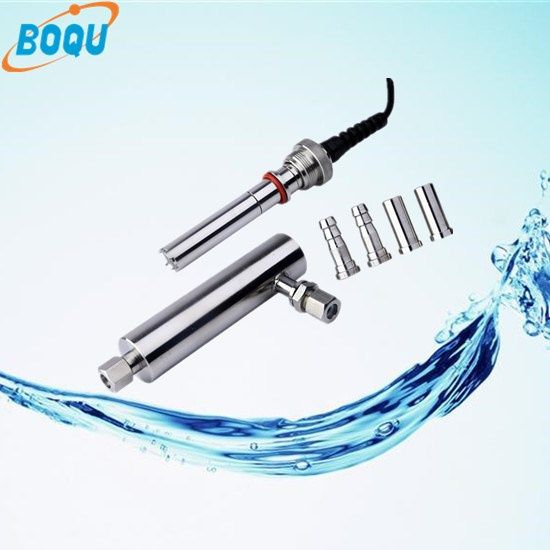

High Quality Ppb Dissolved Oxygen Electrode (DOG-208F)

Name: High Quality Ppb Dissolved Oxygen Electrode (DOG-208F)
Brand: all-electronics-online.com
SKU: 758929315
Availability: InStock
Rating: 4.3 (130 reviews)

Price:	US $ 100-1300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DOG-208F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	0-100ug/L 0-20mg/L
Temperature Compensation Resistor:	2.252k 22k Ptl00 Ptl000
Output:	Switching Sensor
Usage:	Liquid Level Sensor
Theory:	Polarography
Measuring Medium:	Water
Output Signal Type:	4-20mA
For:	Thermal Power Plants, Chemical Fertilizer, Metallu

Product Description

Features
1.Applicable Polarography Principle for DOG-208F Dissolved Oxygen Electrode
2.With platinum (Pt) as cathode and Ag / AgCl as anode
3.The electrolyte is 0.1 M potassium chloride (KCI).
4.The silicone rubber permeable membrane imported from U.S.
serves as the permeable membrane.
5.It has silicone rubber and steel gauze.
6.It is featured by collision resistance, corrosion resistance, hightemperature resistance,shape retention and other performance

	Technical Indexes
1.	Measuring range: 0-100ug/L 0-20mg/L
2.	Electrode shell material: 316L stainless steel
3.	Temperature compensation resistor: NTC: 2.252K 22K Ptl00 Ptl000 and so on.
4.	Sensor life: >3 years
5.	Cable length: 5m (double shielded)
6.	Detection lower Limit: 0.1ug/I(ppb)(20ºC)
7.	Measurement upper limit: 20mg/l(ppm)
8.	Response time: ≤3min(90%, 20ºC)
9.	Polarization time: >8h
10.	Minimum flow rate: 5cm/s; 515 L/h
11.	Drift: <3%/month
12.	Measurement error: <±1 ppb
13.	Output current: 50-80nA Note: Maximum current 20-25 uA
14.	Polarization voltage: 0.7V
15.	Zero Oxygen: <5ppb(60min)
16.	Calibration intervals: >60 days
17.	Measured water temperature:0~60ºC

Scope of application
Applied to thermal power plants, power plant desalted water,.
boiler feed water etc places of trace oxygen content.
