Distance Laser Sensor GLS-B200h Laser Sensor

Name: Distance Laser Sensor GLS-B200h Laser Sensor
Brand: all-electronics-online.com
SKU: 781251585
Availability: InStock
Rating: 4.7 (150 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLS-B200H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Distance:	0.2-6m
Distance Resolution Ratio:	<0.5% When The Measuri
Resolution Ratio:	<1% Full Measuring Range
Angle Resolution Ratio:	<1°
Type:	Distance Laser Sensor GLS-B200h

Product Description

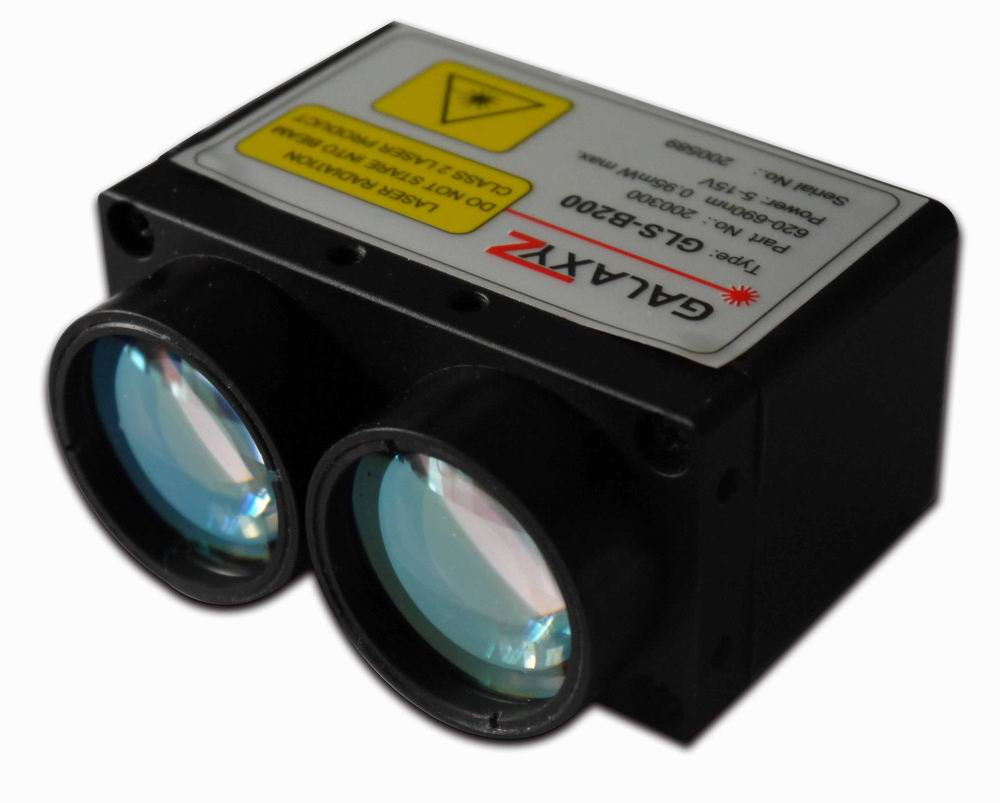

Distance Laser Sensor GLS-B200H
High Frequency :200 hZ and Accuracy 5cm

Specification :

1.Laser Wave Length: 905nm
2.Measuring Range:1-200m
3.Control Way: Automatic Working once open the Power / Controlled by Keyboard / Controlled by Controlling Cable.
4.Repeat Frequency : ≥200hz
5.Data Output: SPI or RS232
6.Measuring Accuracy: ±5cm
7.Working Voltage: +5V or +6~12V
8.Size :40*78*65 mm
9.Waterproof Grade: IP67 Waterproof and Dustproof ( Default)
                     Can be Dipped in 0.5m water ( for especial requirements )
10. Working Temperature: -20°C ~ +60°C( Default)
-40°C~+70°C(for especial requirements)

Baud Rate: 19200bps
Data Bit : 8
Stop Bit: 1
Parity Bit:  No
Power Voltage : 5V      Allow the Difference  5%.
The Sensor will be Burned up if the Voltage is too high .

Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Shanghai Galaxy International Trade Co., Ltd is special line in all kind survey instruments.

· Variety Survey Instruments:

Total Station, GPS, Theodolite, Auto Level, Distance Laser Sensor, Tripod, Prism, Prism Pole, Battery, Charger, Data Cable, ect.

· Perfect Technique Service:

We have a strong technique Team: Studying, Researching, Developing and can repair all kind brand Survey Instruments.

· Production Capacity:

We have own factory to produce our brand Total Station, Theodolite, Distance Laser Sensor, ect. OEM can be done.

· The Guarantee of After -Sales Service:

We promise supply the after-Sales Service and let our Customers has no worries about the quality of our products.
