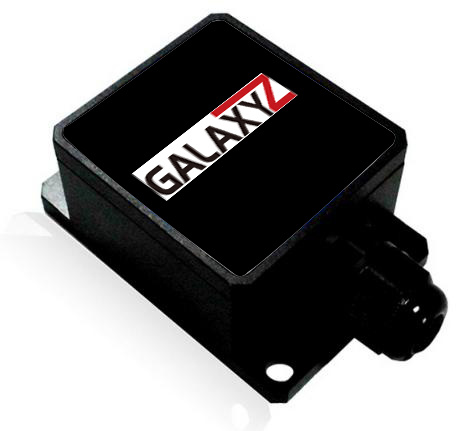

Tilt Angle Sensors Gls316 Tilt Angle

Prod Model:	GLS316
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Analogue Output:	4-20mA
Output:	Analog Sensor
Usage:	Position Sensor

Product Description

GLS316 is a dual axis tilt sensor with a smaller size and low cost. It is a serial output port. Output port :RS232,RS485or TTL port to option .
This sensor adopts the  newest technology of Micro-electron-mechanical production process inclination of unit. It is small size ,low power consumption,consistency ,and high stability .The degree of Linearity is corrected easily for it is the Digital Type Tilt Angle Sensor which is make up the simulation model for the modified not enough lead to the Precision degradation .
It is a Tilt Angle Module with high competitive price with the Operating Temperature up to Industrial Level : -40~+85  .
GLS316 takes the non-contact measuring way, which can time-really output the current attitude angle . It is simple to use and don't need find back the relative change of the two sides of  the installation.
GLS316 adapts the shielding wire transfer , strongly resistances to the outside world electromagnetic interference  and has strong sustaining impact shock .
GLS316 is a industrial instrument which is a good choice for the platform measuring posture.

Main Features:
Dual Axis Tilt Measuring
Measuring Distance :±10~±90°to be option
Long-Term Stability 0.1°
Power Output : to be option
Output: RS232,RS485,TTL
Wide Temperature : -40~+85
IP65 Protest Class
High Shake proof  >3500g
High Resolution  0.01
Small Size : 55×37×24mm(OEM can be done)

 Products Application :
The Electric Chair for The Blind Leveling
Cradle Head Monitor Operation
Satellite Antenna Search the Stars
Auto Mobile Chassis Measuring
Four-Wheel Positioning System
Laser Leveling Instruments
Based on the direction of the Angle Measurement
Infrared Imaging Instrument

Pram	Condition	Min.Value	Typical Value	Max.Value	Unit
Supply Voltage	According to the Voltage to change		To be Option		V
Working Current	Non-Loaded		60		mA
Working Temperature		-40		+85
Stocking Temperature		-55		+125


Specification of Products:

Pram.	Condition	GLS316 -10	GLS316 -30	GLS316 -90	Unit
Rang of Measuring		±10	±30	±90	°
Measuring Axis		X-Y	X-Y	X-Y
Zero Temperature Drift	-25~85°	±0.01	±0.01	±0.01	°
Sensitivity Error	25	±1	±1	±1	%
Response Frequency	DC response	100	100	100	100
Resolution Rate	Bandwidth 5Hz	0.01	0.01	0.01	°
Accuracy	Indoor Temperature	0.1	0.2	0.4	°
Impacting	3500g,0.5ms,3Times/Axis
Weight	55g(no including the box )
