Distance Laser Sensor Gls-B70 Distance Laser Sensor

Name: Distance Laser Sensor Gls-B70 Distance Laser Sensor
Brand: all-electronics-online.com
SKU: 675223151
Availability: InStock
Rating: 4.7 (73 reviews)

Price:	US $ 500-560/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLS-B70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Analogue Output:	4-20mA
Output:	Analog Sensor
Usage:	Position Sensor
Output Signal Type:	Digital Type or Analog Type

Product Description

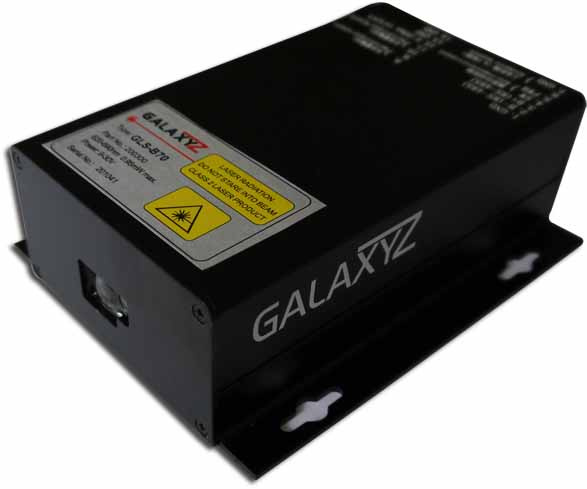

The GLS-B70 Distance Laser Sensor is the new generation of powerful and robust distance measuring modules designed to meet the demands of the industrial measurement market. These modules offer many outstanding features:
· Measuring range 0.05 to 70m.
· Serial interface (RS232, RS485 )
· Programmable analogue output
· Two programmable digital outputs
· Digital output for error signalization
· D-SUB connector and screw terminal for easy connection
· Solid aluminum metal housing
· IP65 ( protected against ingress of dust and water)
· Complementary configuration software
· Laser class II (<0.95mW)
· Can be mounted with three M4 screws
· Wide range power supply (9 to 30VDC)
· Analogue output: 4-20mA

Important Technical Data	GLS-B70
Typical Measuring Accuracy	±1.0 mm
Maximum Measuring Accuracy	±2.0 mm
Measuring range on natural surfaces	0.05 - 70 m
Diameter laser dot
@10 m	8 mm
@50 m	28mm*14mm
@100 m	40mm*25mm
Time for measurement
@Single measurement	0.1 ~ 3sec*
@Continuous measurements	0.1 ~ 3sec*
Power Supply	DC 9-30 V
Power Consumption
Temperature range
@Operation Single measurement	-10°C - 50°C
@Operation Continuous measurements	-10°C - 45°C
Storage	-40°C - 70°C

Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Shanghai Galaxy International Trade Co., Ltd is special line in all kind survey instruments.

· Variety Survey Instruments:

Total Station, GPS, Theodolite, Auto Level, Distance Laser Sensor, Tripod, Prism, Prism Pole, Battery, Charger, Data Cable, ect.

· Perfect Technique Service:

We have a strong technique Team: Studying, Researching, Developing and can repair all kind brand Survey Instruments.

· Production Capacity:

We have own factory to produce our brand Total Station, Theodolite, Distance Laser Sensor, ect. OEM can be done.

· The Guarantee of After -Sales Service:

We promise supply the after-Sales Service and let our Customers has no worries about the quality of our products.
