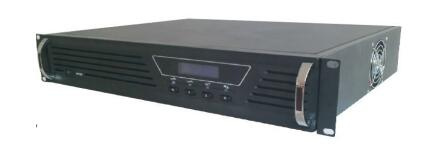

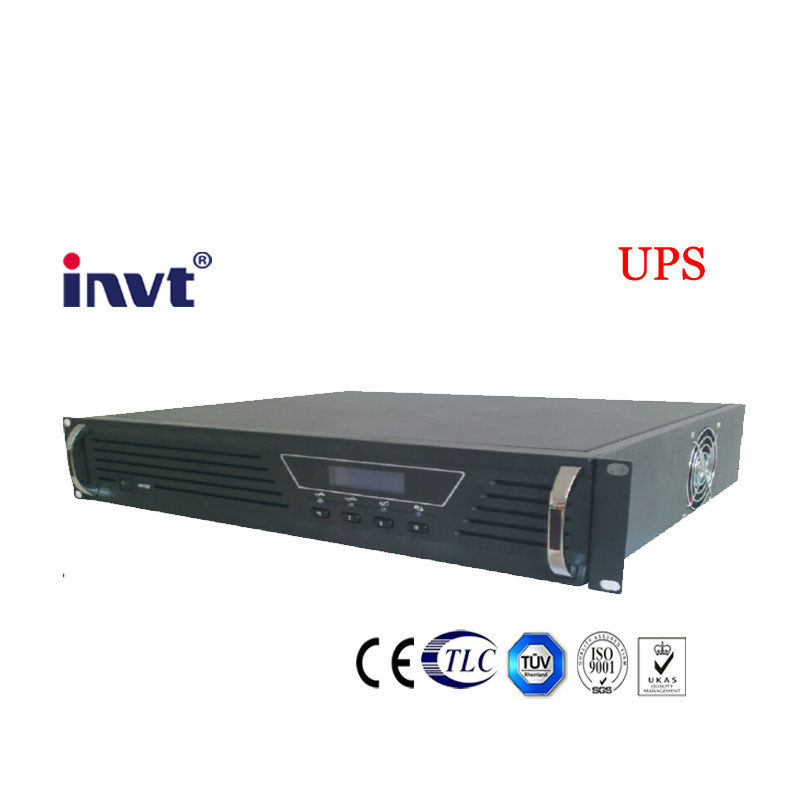

Div Series Power Inverter 500-6000va (DIV500)

Name: Div Series Power Inverter 500-6000va (DIV500)
Brand: all-electronics-online.com
SKU: 830377915
Availability: InStock
Rating: 5 (130 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	DIV500
Capacity:	500va
DC Input:	12V/24V/48V/110V/220V
AC Bypass Bypass Volt:	265V-185V
AC Output Rated Capacity:	500va
Voltage And Frequency:	220VAC/50Hz
AC Output Wave Form:	Sine Wave
Thdu:	3%
Isolation(in/out):	1500VAC/1min

Product Description

Features
CPU control technology
SPWM technology with pure sine wave
Powerful load capability and high compatibility
Advanced reverse noise technology
Settable to AC model and DC model
Fault protection
Interface: RJ45,Dry contacts

MODEL		DIV500	DIV1000	DIV2000	DIV3000	DIV4000	DIV5000	DIV6000
Capacity		500VA	1000VA	2000VA	3000VA	4000VA	5000VA	6000VA
DC Input	Input voltage(Vdc)	12V/24V/48V/110V/220V
DC Input	Reverse noise current	10%
AC Bypass	Bypass volt(Vac)	265V-185V(±10V)
	Input current(A)	2.3	4.5	9.1	13.6	18.2	22.7	27.3
	Transfer time(ms)	≤5ms
AC Output	Rated capacity(VA)	500VA	1000VA	2000VA	3000VA	4000VA	5000VA	6000VA
	Output power(W)	400W	800W	1600W	2400W	2800W	3500W	4200W
	Voltage and Frequency	220Vac,50Hz
	Rated current(A)	1.8	3.6	7.2	10.8	14.5	16	19.1
	Voltage precision(V)	220±1.5%
	Frequency precision(Hz)	50±0.1%
	Wave form	Sine wave
	THDu	3%
	Transient response	5%
	Power factor(PF)	0.8/0.7
	Overload capability	120%,30 sec
	Efficiency	≥85%
	Transfer to bypass	≤5ms
Environment	Isolation(IN/OUT)	1500Vac,1min
	Noise(1 meter)	≤40dB
	Operation temperature	-25ºC-+50ºC
	Humidity	0-90%(non-condensing)
	Altitude(m)	≤2000
Mechanical	Standard (WDH)(mm)	48235688 (500VA;1kVA;2kVA) 48238888 (3kVA;4kVA;5kVA) 482400176 (6kVA)
Mechanical	Weight(kg)	8.5KG(500VA,1000VA,2000VA,3000VA);12KG(4000VA) ; 1

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
