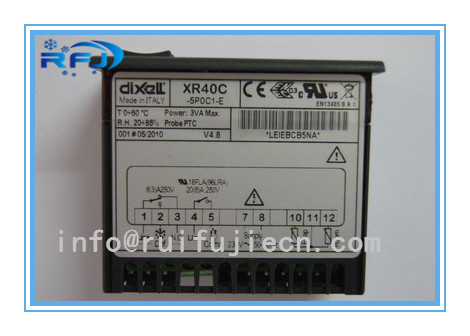

Dixell Four-Output Thermostat Xr40cx-5p0c1 Refrigeration Temperature Controller
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
XR40CX-5P0C1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Temperature Controller |
| Usage: |
Refrigerator |
| Control Type: |
Digital |
| Display Type: |
LED |
| Installation Type: |
The Embedded |
| Material: |
Plastic |
Product Description
Dixell Refrigeration Temperature Controls
Low temperature type 4 output thermostat XR75CX built-in clockWe have all kinds of We have all kinds of temperature controls for different needs. If you are interested in our product, pls contact me.
DIXELL electronic temperature controls is a Italy brand.
We have models as follows:
XR02CX,
XR04CX,
XR06CX,
XR20CX,
XR30CX,
XR40CX,
XR60CX,
XR70CX,
XR75CX,
XT110C,
XT120C
The new PRIME series in CX format, is an innovative range of products that Dixell has introduced to the market for both heating and L.T., N.T. refrigeration. The CX family (32x74mm) has new functions plus an innovative and attractive design. The revolutionary introduction of 6 keys allows the user direct access to all main functions rapidly and intuitively, while the display with illuminated icons allows an instant view of the machine's status. All the instruments in CX format incorporate the latest know how and technology, both in software and hardware to ensure the highest standards of performance. - Easy and intuitive installation
- 9 - 40Vdc power supply for refrigerated trucks (for models with 8A compressor)
- Energy saving cycles triggered via a digital input; for example, it is possible to work at a set point that is different from the normal one in order to, for instance, accumulate cold when electric power is cheaper
- Continuous cycle with dedicated set; it allows the machine to work during rapid cooling cycles to achieve the right product temperature
- Regulation stop by auxiliary probe (beer dispenser applications); it is possible to supervise the tube temperature, stopping the compressor when the temperature becomes too low, and restarting when the correct values have been restored
- Regulation re-start with door switch alarm
- Max and Min temperature or HACCP function
- Digital input configurable as probe
- Virtual probe for air on / air off application; used in multideck applications where it is important to regulate temperature using the average of 2 temperatures
- Dual thermostat function; is available, on demand, in applications such as white or red wine rooms where it is necessary to maintain 2 different temperatures
- Condenser temperature management to prevent critical situations in the system
- TTL serial connection for monitoring systems (using XJ485CX)
- Connection for remote display X-REP (excludes TTL)
|
|
Controllers for Medium and Low Temperature
| XR60CX | Controller for MT and LT ventilated applications with dual humidity function on demand, this allows the user to activate or deactivate ventilation directly through keys, in order to regulate the humidity depending on the kind of product (ideal for pastry applications) | | XR64CX | Controller for MT and LT ventilated applications with twin evaporators; normal regulation restarts only when both evaporators have reached defrost termination temperature | | XR70CX | Controller for MT and LT ventilated applications, with auxiliary relay and with dual humidity function on demand, this allows the user to activate or deactivate ventilation directly through keys, in order to regulate the humidity depending on the kind of product (ideal for pastry applications) | | XR71CX | Controller for MT and LT ventilated applications with anti-sweat heater management; created for applications that utilize heating elements such as anti-mist or anti-freeze heaters on doors (heater elements can be actived by pushing a key or through a dedicated probe) | | XR72CX | Controller for MT and LT ventilated applications with dual compressor management | | XR75CX | Controller for MT and LT ventilated applications with auxiliary relay, dual humidity function and RS485 | | XR77CX | Controller for MT and LT ventilated applications with Real time clock with RS485 |
|
|
| FEATURES | XR60CX | XR64CX | XR70CX | | Power supply | 12, 24Vac/dc,
24,110Vac,230Vac
9 - 40Vdc | 24,110Vac, 230Vac | 24,110Vac, 230Vac | 12Vac/dc | 24,110Vac, 230Vac | 12Vac/dc | | Display : number digits | ± 3 d.p. | ± 3 d.p. | ± 3 d.p. | ± 3 d.p. | ± 3 d.p. | ± 3 d.p. | | Probe inputs | | Thermostat | NTC / PTC | NTC / PTC | NTC / PTC | NTC / PTC | NTC / PTC | NTC / PTC | | Thermostat 2 | - | - | - | - | - | - | | Defrost | NTC / PTC | NTC / PTC | NTC / PTC | NTC / PTC | NTC / PTC | NTC / PTC | | Defrost 2 | - | - | NTC / PTC | NTC / PTC | - | - | | Condenser | NTC / PTC on hot key | | Digital input | Alarm,start defrost, AUX,
door switch, pressure switch, probe | Configurable | Configurable | Configurable | Configurable | Configurable | Configurable | Alarm,start defrost, AUX,
door switch, pressure switch | - | - | - | - | - | - | | Relay outputs | | Compressor | 8A/16A | 20A | 8A/16A | 16A | 8A/16A | 16A | | Compressor 2, | - | - | - | - | - | - | | Thermostat 2 | - | - | - | - | - | - | | Defrost | 8A | 8A | 8A | 16A | 8A | 16A | | Defrost 2 | - | - | 8A | 16A | - | - | | Fan | 8A | 5A | 5A | 16A | 5A | 16A | | Light or Alarm | - | - | - | - | 8A | 16A | | Anti - sweat | - | - | - | - | - | - | | Other | | Hot key / Programming Tool Kit output | Present | Present | Present | Present | Present | Present | | Remote display output | X - REP option | | Serial output | TTL | TTL | TTL | TTL | TTL | TTL | | Buzzer | available only with compressor = 8A | | Real time clock | - | - | - | - | option | option |
|
| FEATURES | XR71CX | XR72CX | XR75CX | XR77CX | | Power supply | 24, 110Vac,
230Vac | 12Vac/dc | 24, 110Vac,
230Vac | 12Vac/dc | 24, 110Vac,
230Vac | 230Vac | | Display : number digits | ± 3 d.p. | ± 3 d.p. | ± 3 d.p. | ± 3 d.p. | ± 3 d.p. | ± 3 d.p. | | Probe inputs | | Thermostat | NTC / PTC | NTC / PTC | NTC / PTC | NTC / PTC | NTC / Pt1000 | NTC / PTC | | Thermostat 2 | - | - | - | - | - | - | | Defrost | NTC / PTC | NTC / PTC | NTC / PTC | NTC / PTC | NTC / Pt1000 | NTC / PTC | | Defrost 2 | - | - | - | - | - | - | | Condenser | NTC / PTC on hot key | NTC / Pt1000 | NTC / PTC | | Digital input | Alarm,start defrost, AUX,
door switch, pressure switch, probe | Configurable | Configurable | Configurable | Configurable | Configurable | Configurable | Alarm,start defrost, AUX,
door switch, pressure switch | - | - | - | - | Configurable | Configurable | | Relay outputs | | Compressor | 8A/16A | 16A | 8A/16A | 16A | 8A/16A | 16A | | Compressor 2, Thermostat 2 | - | - | 8A | 16A | - | - | | Defrost | 8A | 16A | 8A | 16A | 8A | 8A | | Defrost 2 | - | - | - | - | - | - | | Fan | 5A | 16A | 5A | 16A | 5A | 5A | | Light or Alarm | - | - | - | - | 8A | 8A | | Anti - sweat | 8A | 16A | - | - | - | - | | Other | | Hot key / Programming Tool Kit output | Present | Present | Present | Present | Present | Present | | Remote display output | X - REP option | | Serial output | TTL | TTL | TTL | TTL | RS485 | RS485 | | Buzzer | available only with compressor = 8A | | Real time clock | - | - | - | - | option | Present |
|
