Dixell Xr Series Temperature Controller Single Output Thermostat Xr02cx-5n0c1/5r0c1

Name: Dixell Xr Series Temperature Controller Single Output Thermostat Xr02cx-5n0c1/5r0c1
Brand: all-electronics-online.com
SKU: 742544365
Availability: InStock
Rating: 4.3 (131 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XR02CX-5N0C1/5R0C1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Dixell
Type:	Temperature Controller
Usage:	Air Conditioner, Refrigerator
Control Type:	Digital
Display Type:	LED
Control Method:	Electronic Type
Cooling Purpose:	Air Conditioner
Installation Type:	The Embedded
Material:	Plastic

Product Description

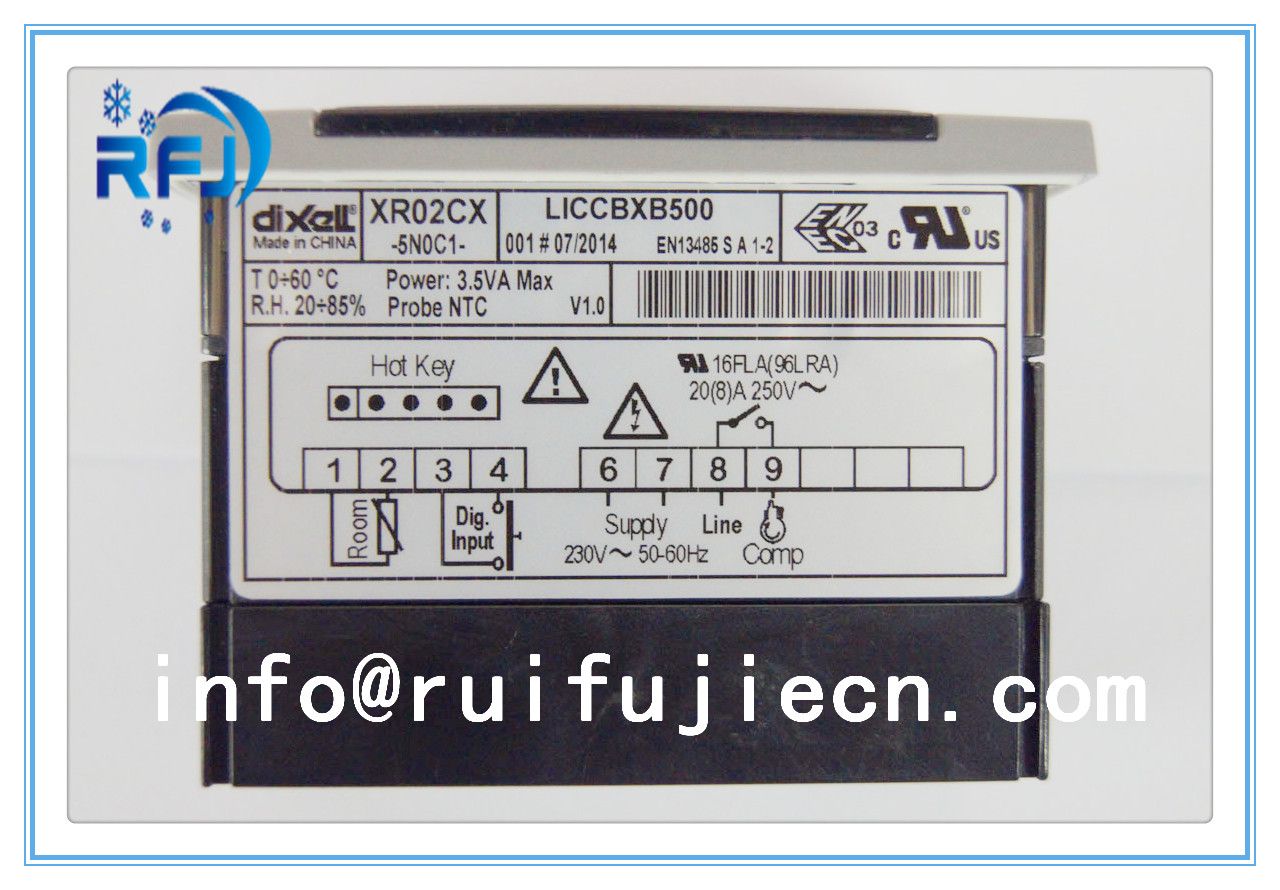

Dixell single output digital display temperature controller

Model:XR02CX-5N0C1/5R0C1

Product description:

Origin: Italy (now Chinese factories have production)

Shell: ABS sublight flame retardant plastic;

Dimensions: front 32x74 mm;Deep 50 mm;

Mounting dimensions: fixed in the open hole for 71x29mm panel;

Overall protection level: IP20;Front panel protection level: IP65;

Wiring terminal: edge card connection, wire diameter is less than 2.5 mm2;

Power supply: 230Vac + 10%, 50/60hz;110Vac plus or minus 10%, 50/60hz.Please refer to the nameplate in kind.

Power consumption: maximum 3VA;

Display: 2 red digital tubes (quantity reached, blue can be ordered,), 14.2 mm high;Input: 1 channel NTC input;

Digital input: 1 channel passive digital signal input

Output relay: compressor SPST 8(3) A, 250Vac;20 (8) A 250 vac.

Data storage: electrically erasable electronic writing memory (EEPROM).

Control level: 1B;

Environmental level: 2;

Software level: A;

Maximum insulation voltage: 2500V;Grade of overvoltage: II;

Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.

Relative humidity: 20~85RH% (unexposed)

Measure and control temperature range: NTC - 40 ~ 110 ° C;

Resolution: 0.1 ° C or 1 ° C;

Precision (at the ambient temperature of 25 ° C), plus or minus 0, 7 ° C plus or minus one

XR01CX-5N0C1		XR02CX
XR02CX-5N0C1		XR03CX
XR03CX-5N0C0		XR04CX
XR04CX-5N0C1		XR06CX
XR06CX-5N0C1		XR10CX
XR10CX-5N0C1		XR30CX
XR30CX-5N0C1		XR40CX
XR40CX-5N0C1		XR60CX
XR60CX-5N0C1		XR20CX
XR30CX-5R0C1
XR60CX-5R0C1
