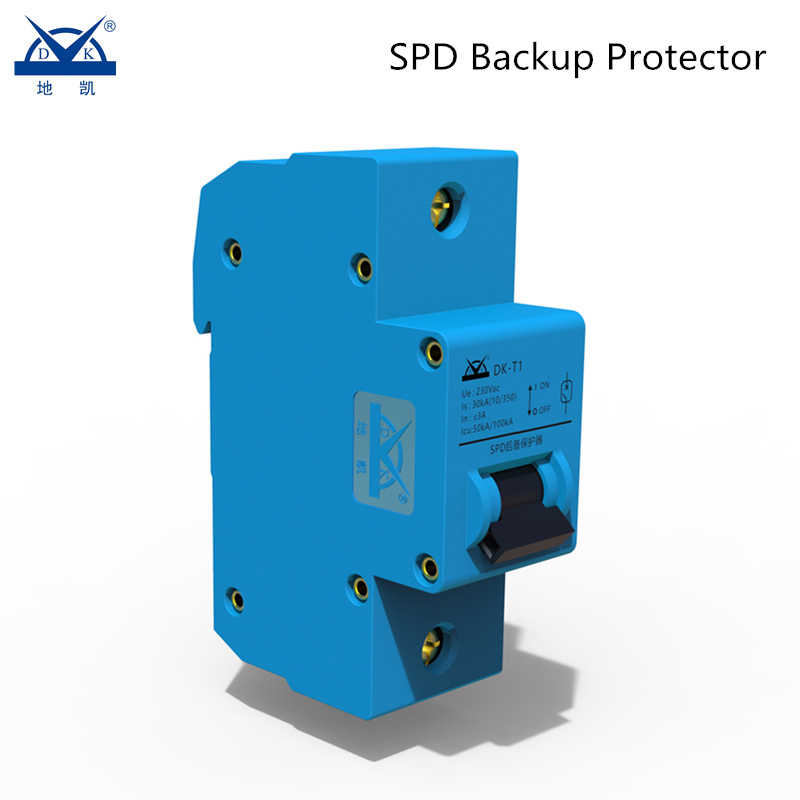

Dk-T1 SPD Backup Protector Special Circuit Breaker Scb
| Price: |
US $ 25.5-30/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
DK-T1 |
| Rated Working Voltage: |
230/400V AC |
| Impact Endurance Capacity: |
30ka(10/350) 150ka(8/20) |
| Power Frequency Action Current: |
Less Than 3A |
| Rated Limit Short-Circuit Capacity: |
50ka/100ka |
| Shell Protection Class: |
IP20 |
| Working Environment: |
Minus 25 to 70 Centigree |
| Relative Humidity: |
Less Than 95%(Under 25 Degree) |
| Non Tripping Impulse Current Endurance: |
According with GB18802.1-2011 |
| Protection Level: |
T1,T2 |
| Installation Rail: |
En60715(35mm) |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Oil-immersed Type |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
Cnasa |
Product Description
Product Description
According to relative standards "GB18802.1 and GB50057", the front return circuit of Surge Protective Device(short for SPD) must be in series connection with current protector. Since the fuse and circuit breaker can't coordinate and cooperate, it may lead to fire and accident of Equipment damage from lightning stroke when the SPD breaks down or occurs short circuit. Special Circuit Breaker(short for SCB) is specially designed for SPD. It doesn't disconnect under high impulse current and can disconnect quickly when there is power current after SPD breaks down, which can eliminate the associated potential risks.
Installation Location
Between LPZ0 and LPZ1
Between LPZ1 and LPZ2
Border between LPZ0 and LPZ1, or border of following lightning protection areas| Installation Location | Main Distribution Cabinet | Floor Distribution Box | Electric Equipment |
| Recommended Item | DK-T1 | DK-T2 | DK-T3 |
| Protection Level | T1 | T2 | T3 |
| Non tripping impulse current Is | 30kA(10/350µs)
150kA(8/20µs) | 80kA(8/20µs) | 80kA(8/20µs) |
| Application Scope | 30kA(10/350)/150kA(8/20) | Suitable for all SPD which is under 80kA |
| Recommended Matched SPD | DK-50G | DK-80/DK-40 | DK-20/DK-CP |

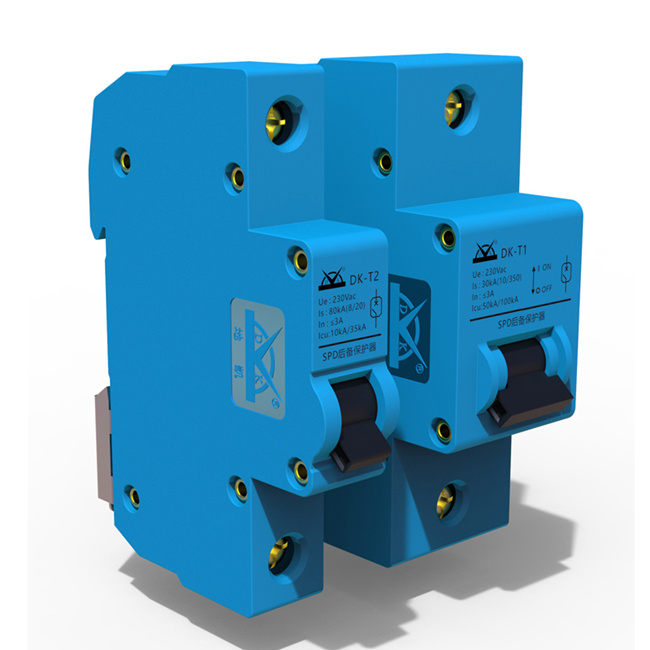

Technical Parameter| Specification | DK-T2 | DK-T1 |
| Non tripping impulse current Is | 80kA(8/20µs) | 30kA(10/350µs)
150kA(8/20µs) |
| Non Tripping Impulse Current Endurance Capacity | According
with GB18802.1-2011 | According
with GB18802.1-2011 |
| Non Tripping Impulse Current Endurance Capacity | T2 Testing Standard | T1 Testing Standard |
| Rated Working Voltage Ue | Monopole | 230V AC | 230/400V AC |
| Rated Working Voltage Ue | Multistage | 440V AC | 440/690V AC |
| Over Current Protection Value In | ≤3A |
| Power Frequency Short-circuit Current Break-time Tcs | ≤10ms |
| Power Frequency Short-circuit Limitation Breaking Capacity Icu | 10kA/35kA | 50kA/100kA |
| Shell Protection Class | IP20 | IP20 |
| Working Environment | Temperature: -25ºC~70ºC Relative Humidity: 95%(Under 25ºC) |
| DIN-Rail | EN60715(35mm) |
Application Scope
DK-T1 Special Circuit Breaker is suitable for Surge Protective Device(SPD) of the Class I Testing.
DK-T2 Special Circuit Breaker is suitable for Surge Protective Device(SPD) of the Class II Testing.
DK-T3 Special Circuit Breaker is suitable for Surge Protective Device(SPD) of the Class III Testing.
