Name: SPD Backup Failure Protection MCB Special Circuit Breaker (SCB)
Brand: all-electronics-online.com
SKU: 792996525
Availability: InStock
Rating: 4.8 (138 reviews)

Price:	US $ 26-30/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

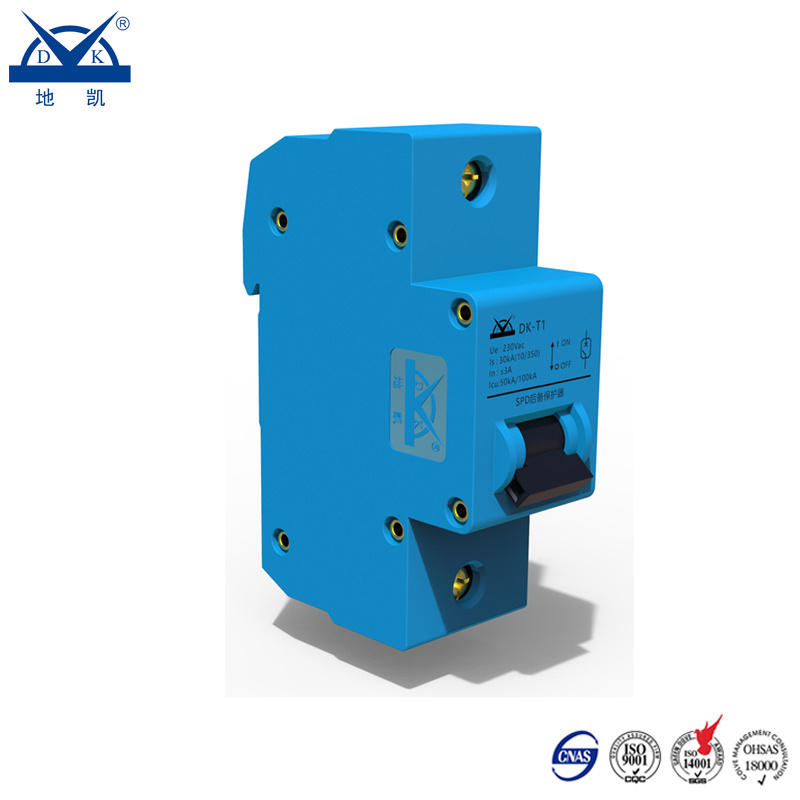

Prod Model:	DK-T1 Special Circuit Breaker
Rated Working Voltage:	230/400V AC
Impact Endurance Capacity:	30ka(10/350) 150ka(8/20)
Power Frequency Action Current:	Less Than 3A
Rated Limit Short-Circuit Capacity:	50ka/100ka
Shell Protection Class:	IP20
Working Environment:	Minus 25 to 70 Centigree
Relative Humidity:	Less Than 95%(Under 25 Degree)
Non Tripping Impulse Current Endurance:	According with GB18802.1-2011
Protection Level:	T1,T2
Installation Rail:	En60715(35mm)
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	Cnas

Product Description

Product Description

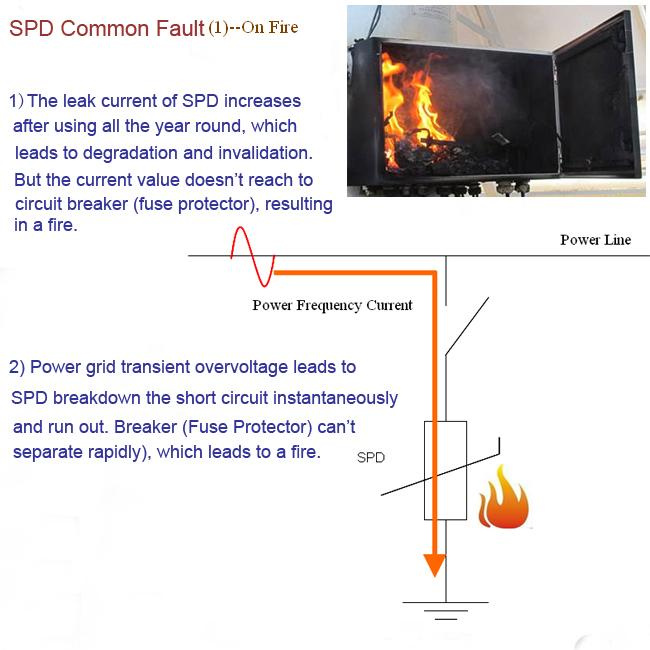

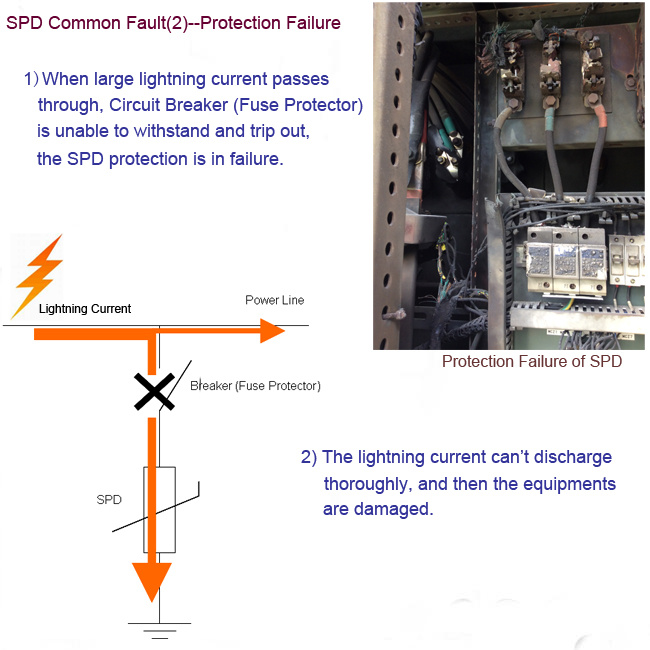

According to the relative standards "GB18802.1 and GB50057", the front return circuit of Surge Protective Device(short for SPD) must be in series connection with overcurrent protector. Since the fuse and circuit breaker can't coordinate and cooperate, it may lead to fire and accident of equipment damaged from lightning stroke when the SPD breaks down or occurs short circuit.

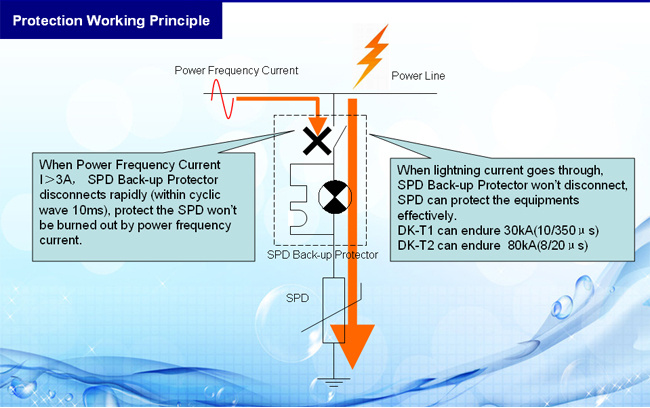

Special Circuit Breaker(short for SCB) is specially designed for SPD. It won't disconnect under high impulse current, and can disconnect quickly when there is power current after SPD breaks down, which can eliminate the associated potential risks.

Installation Location
Between LPZ0 and LPZ1
Between LPZ1 and LPZ2
Border between LPZ0 and LPZ1, or border of following lightning protection areas

Installation Location	Main Distribution Cabinet	Floor Distribution Box	Electric Equipment
Recommended Item	DK-T1	DK-T2	DK-T3
Protection Level	T1	T2	T3
Non tripping impulse current Is	30kA(10/350µs) 150kA(8/20µs)	80kA(8/20µs)	80kA(8/20µs)
Application Scope	30kA(10/350)/150kA(8/20)	Suitable for all SPD which is under 80kA
Recommended Matched SPD	DK-50G	DK-80/DK-40	DK-20/DK-CP

Technical Parameter

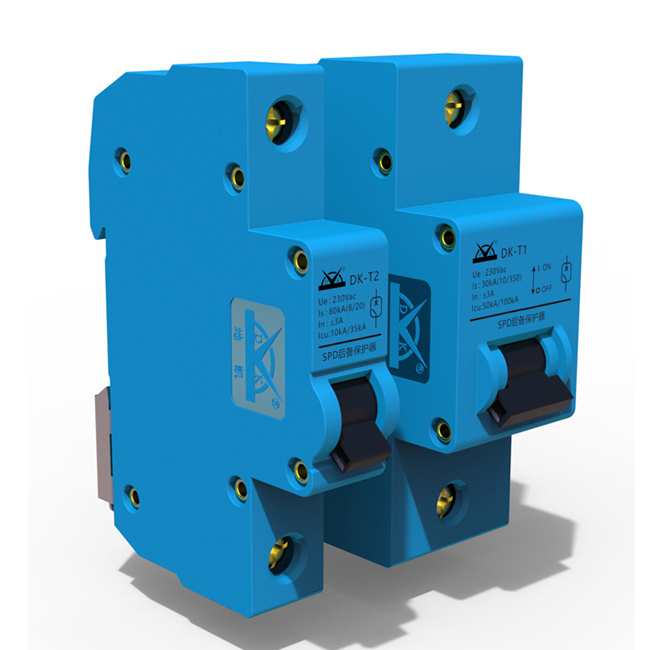

Specification		DK-T2	DK-T1
Non tripping impulse current Is		80kA(8/20µs)	30kA(10/350µs) 150kA(8/20µs)
Non Tripping Impulse Current Endurance Capacity		According with GB18802.1-2011	According with GB18802.1-2011
Non Tripping Impulse Current Endurance Capacity		T2 Testing Standard	T1 Testing Standard
Rated Working Voltage Ue	Monopole	230V AC	230/400V AC
Rated Working Voltage Ue	Multistage	440V AC	440/690V AC
Over Current Protection Value In	≤3A
Power Frequency Short-circuit Current Break-time Tcs	≤10ms
Power Frequency Short-circuit Limitation Breaking Capacity Icu		10kA/35kA	50kA/100kA
Shell Protection Class		IP20	IP20
Working Environment		Temperature: -25ºC~70ºC Relative Humidity: 95%(Under 25ºC)
DIN-Rail		EN60715(35mm)

Application Scope
DK-T1 Special Circuit Breaker is suitable for Surge Protective Device(SPD) of the Class I Testing.
DK-T2 Special Circuit Breaker is suitable for Surge Protective Device(SPD) of the Class II Testing.
DK-T3 Special Circuit Breaker is suitable for Surge Protective Device(SPD) of the Class III Testing.
