Dl Aluminum Tubular Cable Terminal Lug with Two Holes

Name: Dl Aluminum Tubular Cable Terminal Lug with Two Holes
Brand: all-electronics-online.com
SKU: 719646442
Availability: InStock
Rating: 4.6 (34 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL
OEM:	Accept
Sample:	Free
Finished:	Acid Cleaning
Purity Aluminum:	99.5%
Material:	Aluminum
Application:	Conduct Electricity
Type:	Crimp Terminal, Lug
Character:	High Conductivity
Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimping
Certification:	SGS
Brand:	Haiwe

Product Description

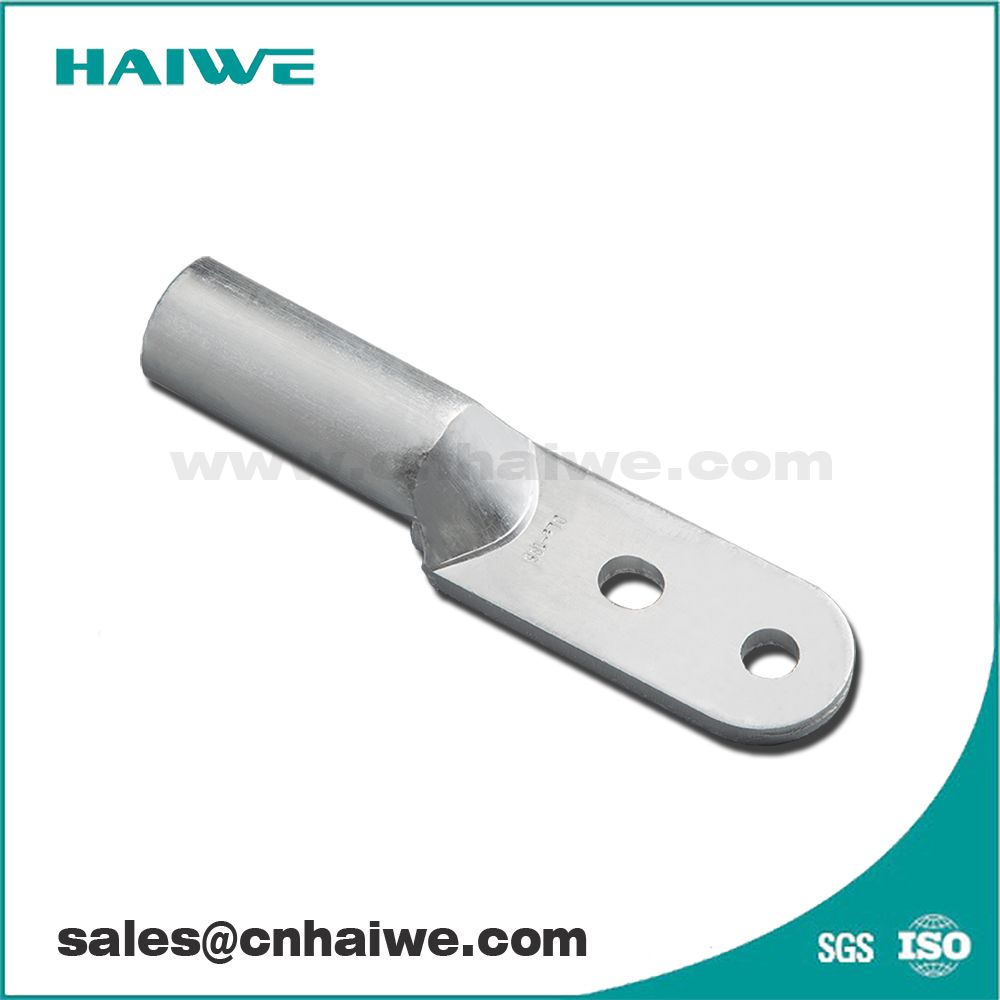

DL aluminum tubular cable terminal lug with two holes

Technical Requirements
Material: Aluminum, Good conductivity

Marking: The marking should be clearly, well-proportioned

Surface Treatment: Acid cleaning, bright or tin plated

Product Property: It is used to connect the Aluminum conductor end

Type No	Main Dimensions(mm)
Type No	D	d	L	L	A	L
DL2-35	14	8.5	37	111	22	60
DL2-50	16	9.8	42	1120	22	60
DL2-70	18	11.5	47	127	28	65
DL2-95	20	13.5	50	135	28	65
DL2-120	22	15	52	137	34	65
DL2-150	25	16.5	55	143	34	65
DL2-185	27	18.5	58	149	40	66
DL2-240	30	21	60	153	40	66
DL2-300	30	23	65	173	50	80
DL2-400	34	26	65	180	50	80
DL2-500	38	30	70	190	50	80
