Dlt Crimping Power Cable Terminal Lug

Name: Dlt Crimping Power Cable Terminal Lug
Brand: all-electronics-online.com
SKU: 719597052
Availability: InStock
Rating: 4.7 (36 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DLT
OEM:	Accept
Sample:	Free
Technique Of Production:	Friction Welding
Finished:	Acid Cleaning
Application:	Conduct Electricity
Type:	Cable Lugs
Material:	Copper,Aluminum
Character:	High Conductivity
Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimping
Certification:	SGS
Brand:	Haiwe

Product Description

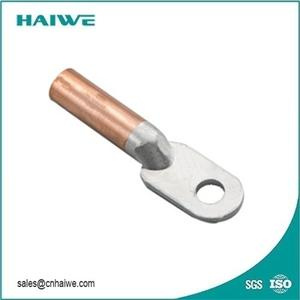

DLT crimping power cable terminal lug

Product Description
Application:
Bimetallic lug are mostly useful where an aluminum cable has to be terminated by a copper busbar or copper contact.

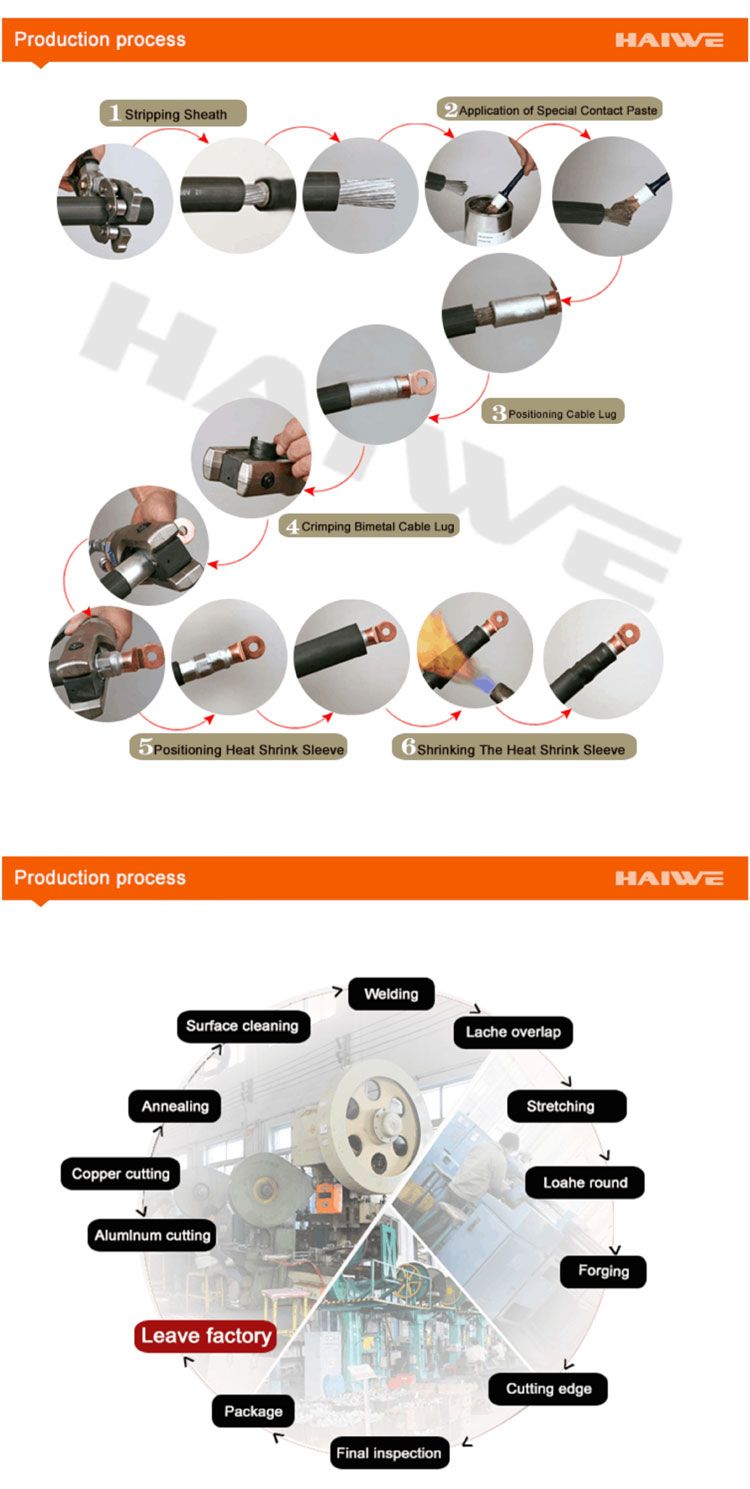

Technique of production: friction welding.

Barrels are supplied capped and filled with jointing compound to avoid oxidation of the aluminum conductor.

Material: 99.9% purity copper & 99.5% purity aluminum

Conductivity: copper 99.7% IACS Aluminum 61.2% IACS(1050)

Final treatment: Acid cleaning

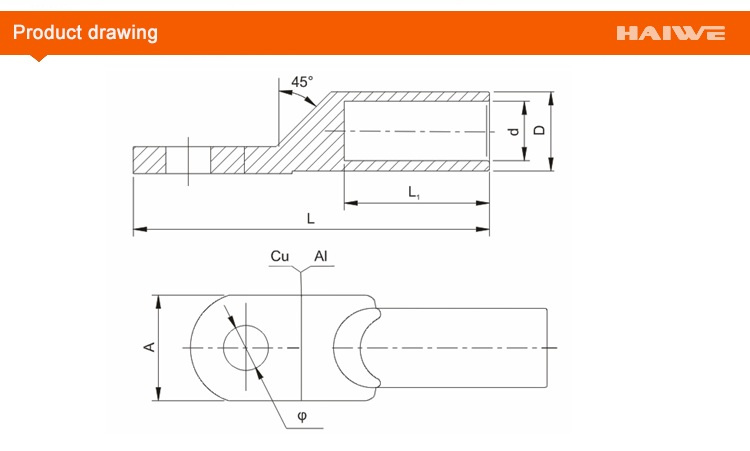

Type No.	Main Dimensions(mm)
Type No.	Φ	D	d	L	L1	A
DLT-10	8.5	9	5	67	27	15
DLT-16	8.5	10	6	67	28	15
DLT-25	8.5	11	7	72	32	16
DLT-35	10.5	12	8.5	76	34	18
DLT-50	10.5	14	10	85	38	20
DLT-70	12.5	18	12	92	42	23
DLT-95	12.5	20	13.5	106	46	26
DLT-120	14.5	22	15	113	50	28
DLT-150	14.5	24	17	120	51	31
DLT-185	16.5	27	19	128	53	34
DLT-240	16.5	30	21	142	58	36
DLT-300	21	34	23	148	60	45

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet

5.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free

6.How to contact us?
A:Send your inquiry details in the below,Click "send" now!
