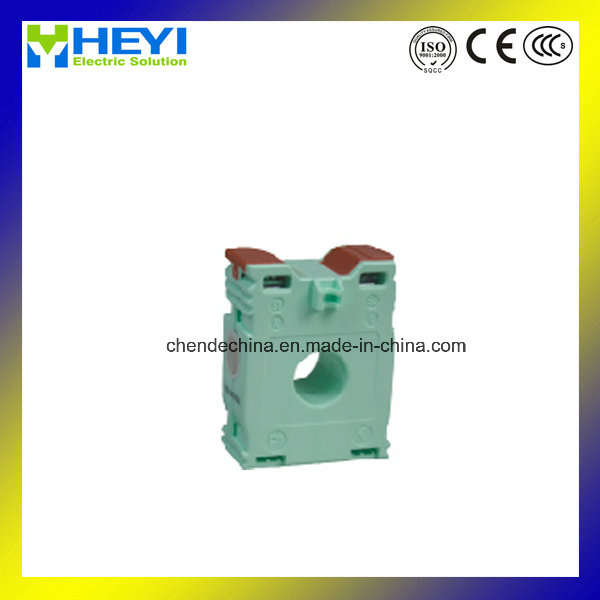

Dm Series Current Transormer

Name: Dm Series Current Transormer
Brand: all-electronics-online.com
SKU: 796340245
Availability: InStock
Rating: 4.9 (113 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DM
Model:	Dm Series Current Transformer 13mm
Is Customized:	Yes
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

DM series of current transformer can be applied to test, control, display and record the running of the electrical equipment, and to protect the equipment against the damage, in the AC circuit with the rated voltage value below 660V and the frequency of 50 - 60Hz. DM can be also applied to form a complete set of mine Transformer.
Feature:
1:AC circuit
2:Two built in fixing methods: DIN rail; Busbar mounting
3:Built in hinged terminal cover
4:Compact design
5:Primary current from 15A to 300A.
6:The DM series of current transfomer are convenient for mounting in many ways.
7:The most current transformer need the special mounting and the DM series used
the mounting of DIN typing without a lot of time.
8:The protective cover for the terminal block used the switching device with safety and quick
STANDARD:
IEC6044-1, EN60044-1, VDE0414-44-1, GB1208-2006
Technique Index:

Rated Frequency					50/60Hz
Withstand voltage					AC3kV(1min)
Rated thermal current					60ln
Dynamic stability current					2.5lth
Rated voltage					AC0.72KV
Burden					1.2ln
Operating temperature range					-10°C-50°C
Prevent combustion level					V0
Accuracy limit class					FS5
Secondary current					5A,1A

Technical Data

Type	current ratio(A)	Burden(VA)		Packing for Quaility
		Accuracy class:0.5	Accuracy class:1.0
DM-B	5/5-40/5	2.5	3.75	40
	5/5-50/5	2.5	3.75	40
	5/5-60/5	2.5	3.75	40
	5/5-75/5	2.5	3.75	40
	5/5-100/5	2.5	3.75	40
	5/5-150/5	2.5	3.75	40

Type	current ratio(A)	Burden(VA)		Packing for Quaility
		Accuracy class:0.5	Accuracy class:1.0
DM-20	50/5	2.5(3T)	2.5(3T)	40
	75/5	2.5(2T)	2.5(2T)	40
	100/5	1.5	2.5	40
	150/5	2	3.75	40
	200/5	2.5	5	40

Type	current ratio(A)	Burden(VA)		Packing for Quaility
		Accuracy class:0.5	Accuracy class:1.0
DM-30	50/5	1.5(4T)	1.5(3T)	40
	60/5	1.5(4T)	1.5(3T)	40
	75/5	1.5(3T)	1.5(2T)	40
	100/5	2.5(4T)	2.5	40
	150/5	2.5	2.5	40
	200/5	2.5	3.75	40
	250/5	2.5	5	40
	300/5	5	5	40

Type	current ratio(A)	Burden(VA)		Packing for Quaility
		Accuracy class:0.5	Accuracy class:1.0
DM-40	200/5	1.5	2.5	40
	250/5	2.5	2.5	40
	300/5	3.75	5	40
	400/5	5	5	40

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
