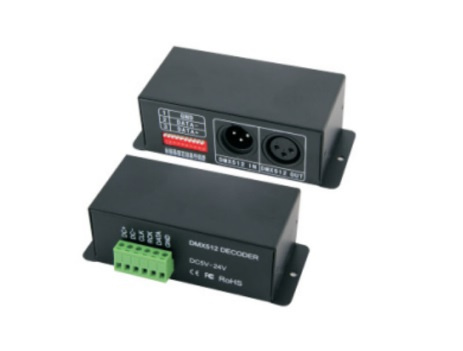

DMX512 LED RGB Digital Control Signal Pixel Decoder

Prod Model:	DMX512
CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Voltage:	12V
Material:	Metal
Battery Type:	Driver

Product Description




Product Description
DMX512 signal decoder using advanced microcomputer control technology, the widely used DMX512/1990 standard digital control signal into a variety of LED control chip control signal. Can be connected with the DMX digital console, and can increase the decoder constantly expanding the output channel, in order to achieve more dimming or a variety of program changes. When the decoder is not connected with the DMX console, the machine can be used as a synchronization controller, and can be used for the synchronization control of a plurality of decoders and LED lamps.

Specifications


Model	6803	2811,2812,1903,1809	2801
Input Voltage	DC5-24V
Input Signal	DMX512/1990
Output Signal	6803	2811/2812/1903/1809	2801
Decode Channel	510	510	510
Control LED QTY	170	170	170
Control LED QTY	Standard XLR-3
Size (mm)	125*54*43(mm)
Weight	275g
fittings	A pair of XLR plugs

Direction for use

Each universal DMX controller takes up 3 DMX addresses. It adopts 2 ways (auto-index addressing and code switch) to set up the address. When adopting the auto-index addressing, all switches are "off" status. When adopting the code switch to set up address, the 10th bit(FUN) is "off" status, and other 9 bits are  binary value code switch which are used to set up the DMX starting address code. The first bit is the lowest order bit, and the ninth is the highest order bit. That can set up 511 address codes. The DMX starting address code is equal to the sum of 1st to 9th bit. If move down one bit of code switch ("ON" set "1"), you can get the place-value of this bit. If move up (set "0"), the place-value is 0. For example: if you want to set up DMX starting address code for 73, you should move down the 7th, 4th, and 1st bit of code switch for "1", and others for "0", Then the place-value's sum of 1st to 9th bit is 64+8+1. That is to say, the DMX512 starting address code is 73. (The correspondence dials code position is as follows)
To choose the channel from the Dial in-line Package(DIP) Switch:


Decimals	1	2	3	4	5	6	7	8	9	10
Weight-number	1	2	4	8	16	32	64	128	256	FUN




Other function's direction for use
1.    Test function:
The DIP switch's 10th bit is "FUN", for built-in function key. When "FUN"="OFF", is for DMX decoder function. This is used to adopt DMX signal.
1-9 switch OFF: black
Switch 1=ON: Full color flutter
Switch 2=ON: Sub seven color move back-for-ward direction
Switch 3=ON:Sub seven color jump and move back-for-ward
Switch 4=ON: Sub seven color background move back-for-ward
Switch 5=ON: Sub seven color background move single direction
Switch 6=ON:Sub seven color stretch to single direction
Switch 7=ON: Sub seven color background overlay to left and right
Switch 8=ON: Sub seven color spread to single direction
Switch 9=ON:Sub seven color water move to left and right
                                                                                                                                                                                                                                         Conjunction Instruction:

DATA	6803/2801 signal line
CLK	6803/2801 clock line
GND	With the positive pole  is connected
DC+	With the negative pole  is connected

DATA	2811/2812/1903/1809 signal clock
GND	With the positive pole  is connected
DC+	With the negative pole  is connected
