| CCT: |
Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available |
| Lead Time: |
3 Working Days |
| Warranty: |
3years |
| Application: |
Building |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Voltage: |
3V |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
Product Description
1. Key & Black remote design,all Single Color/CCT/RGB/RGBW receiver use the same remote.
2. one remote control 4 zones separately or together.
3. Control distance:20-30 meters.
4. PWM dimming
5. For Led strips / Led Module and other DC5-24V led lights with 5 cables input.
6. Application: Commercial lighting, Fun lighting, Christmas Lighting....
Specifications | Item | Parameter |
| Supply Voltage | 3V(1.5V AAA*2 batteries) |
| Transmission frequency | 2400-2483.5MHZ |
| Control mode | GFSK |
| Transmission power | 6db |
| Static power consumption | 10uA |
| Remote distance | 20-30 meters |
| External dimension | 150*38*14mm |
INTRODUCTION : This is a 3 zone RF Touch Remote Control, which adopt the most advance PWM control technology, can control all kinds of DC led lights.Such as led strips light, led module, led source etc. It can control 3 zones separately, 30 meters tops control distance.
PROGRAM LIST: Dimmer | NO | MODE | NO | MODE |
| 1 | Static Color | 3 | Fade In And Fade Out |
| 2 | Strobe Flash | 4 | Blasting Flash |
CCT| NO | MODE | NO | MODE |
| 1 | Warm Color | 5 | Warm Color & Cool Color Cross Fade |
| 2 | Cool Color | 6 | Warm Color Strobe Flash |
| 3 | Warm Color Fade In And Fade Out | 7 | Cool Color Strobe Flash |
| 4 | Cool Color Fade In And Fade Out | 8 | Warm Color & Cool Color Strobe Flash |
RGB(W)
| NO | MODE | NO | MODE |
| 1 | Red | 9 | Strobe White |
| 2 | Green | 10 | RGBW Fade in Fade out |
| 3 | Blue | 11 | 7 Color Flash |
| 4 | yellow | 12 | Red Color Ramp up and Flash |
| 5 | purple | 13 | Green Color Ramp up and Flash |
| 6 | Cyan | 14 | Blue Color Ramp up and Flash |
| 7 | White | 15 | White Color Ramp up and Flash |
| 8 | 7 Color Fade in and Fade out | 16 | Color change+ Flash |
| | | | |
Grouping of several lights:
You can add lights to a zone on the 4 channel remote by linking the lights to different zones. This way you are completely flexible in creating different group combinations, below you can see some grouping examples.
Link: Press any number(1,2,3,4) button of the 4 zones immediately once you switch the light, the link is done once the light blink 3 times.
Unlink: Long press the number(1,2,3,4) button of the linked zone immediately once you switch on the light. The unlink is done once the light blinks 9 times.
DIAGRAM FOR THE RECEIVERS Single color dimmer
CCT Led Controller

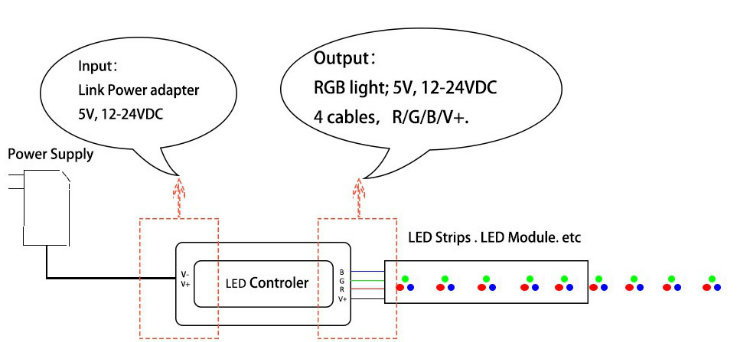

RGB Led Controller

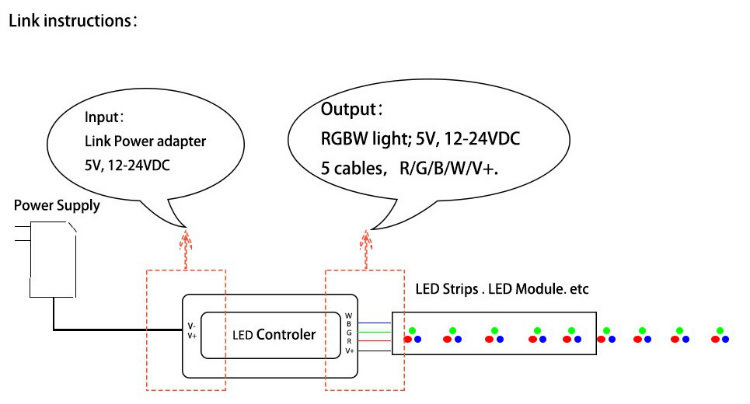

RGBW Led Controller

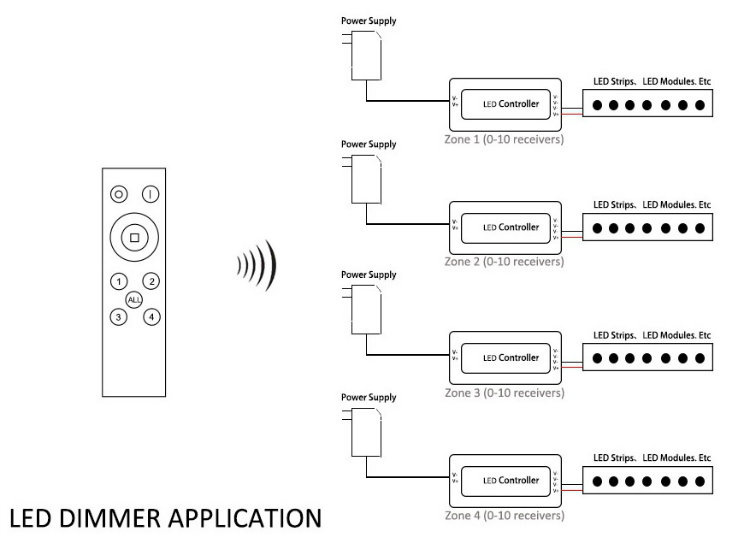

TYPICAL APPLICATIONS
CAUTIONS:1,Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
2,Overload are prohibited.
