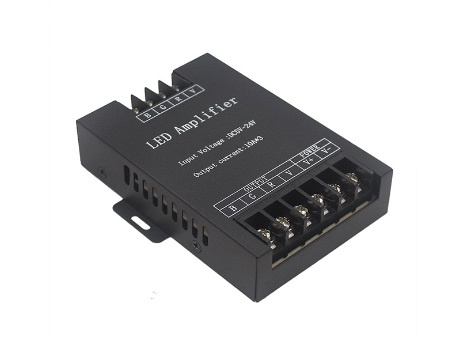

360W Power Repeater RGB Controller Signal

Power:	360W
CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Voltage:	12V
Material:	Metal
Battery Type:	Button Battery

Product Description

1. It is suitable for all power-output style controllers' power expansion.
2. It accepts PWM control.
3. 30A/360W tops output.

Product Description:
This RGB amplifier is suitable for all kinds of constant voltage led RGB controller. It can enlarge the led controller signal through the RGB to receive the PWM (pulse width modulation),and output the signal to the load ,then it can make the same effect with the controller. When add each additional amplifier, can connect and controlled twice more LED lights. Theoretically, one controller can connector with thousands of this RGB amplifier, and can make the same effect.


Direction for use:

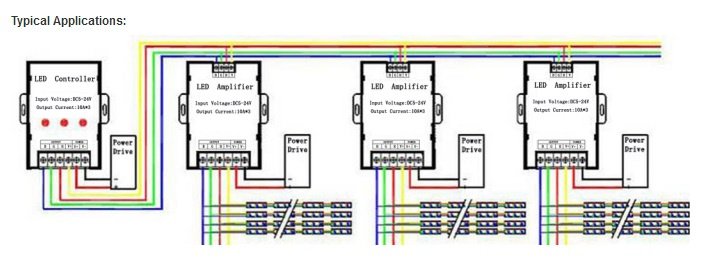

Connect the input and output wire in sequence according to the specification one the label of the amplifier, make sure that no short circuit phenomenon, then connect the amplifier to the DC5V-24V power supply , and used with the led light , the wiring diagram are as follows:






Specifications  :                                                                                      Working temperature:-20-60ºC
Input voltage:DC5V~24V
Output:3 circuit
Connection mode:Common anode
product's size:L110.7×W75.1×H25.5mm
package size:L140.4*W97.4*H50.7
Net weight:150g
Gross weight:170g
Static power consumption:<1W
Output current:<10A/ch
Output power:5V :<150W, 12V:<360W,  24V:<360W
