Double Color 24key LED Color Temperature Controller

Name: Double Color 24key LED Color Temperature Controller
Brand: all-electronics-online.com
SKU: 795792605
Availability: InStock
Rating: 4.8 (86 reviews)

Price:	US $ 2.18-2.19/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-DC-24
Packing Size:	385315210cm/100 Pieces
Working Temperature:	-20 - 60
0utput:	3 Channel
Static Power Consumption:	<1W
Output Current:	<3A
Application:	LED Products
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Voltage:	3V
Material:	Plastic
Battery Type:	Button Battery

Product Description

Basic Info

Model NO.: LYD-DC-24
Signal Transmission: IR Remote Control
Certification: RoHS, CE
Transmission Distance: <50m
Material: Plastic
Supply Voltage: DC5V, 12V-24V
Gross Weight: 60g
Output Current: <3A (Each Circuit)
Carton Size: 385*315*210cm
Trademark: louita
Origin: Shenzhen Guangzhou

Application: LED Products
Type: Button
Universal: Universal
Voltage: 3V
Battery Type: Button Battery

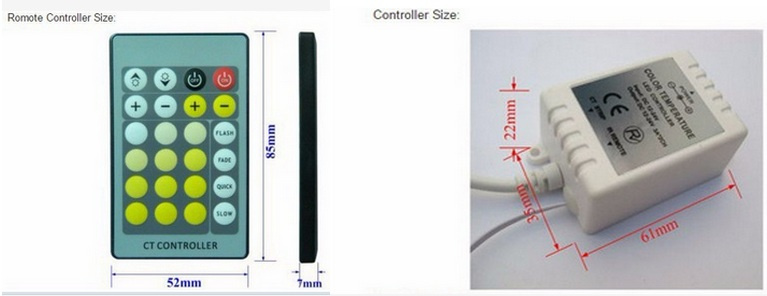

Dimension: 61*35*22mm
Output: 3 CMOS Open Drain Output
Output Power: 5V<30W, 12V<72W, 24V<144W
Product Feature: Wireless Remote Controller
Specification: CE, RoHS, LVD, EMC
HS Code: 8537109090

Product Description

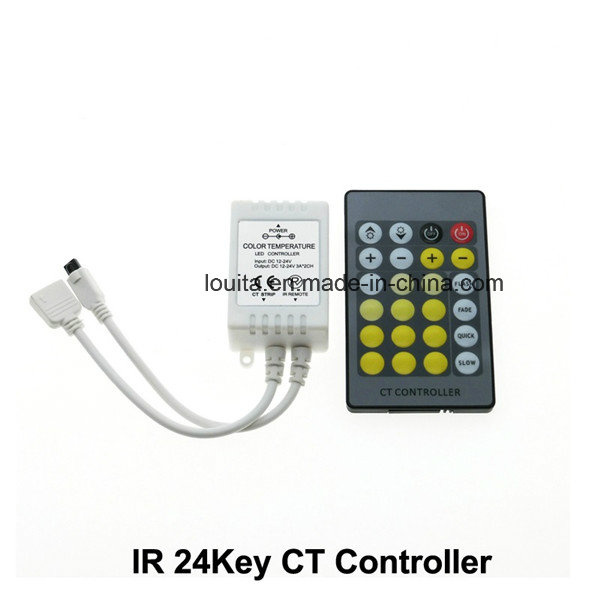

IR 24Key LED Color Temperature Controller for Double Color LED Strip

Specification:

Working temperature	-20-60°C
Supply voltage	DC5V, 12V~24V optional
0utput	3 channel
Connecting mode	Common anode/cathodeoptional
External dimension	613522mm
Packing size	385315210cm/100 pieces
Static power consumption	<1W
Output current	<3A
Output power	5V<30W, 12V<72W, 24V<144W

Common Problems

Problems	Possible cause	Solution
Lamp does not light after power	Power cord is not properly connected, or there is not output switching power supply	Connect the power cord properly or replay the power
Lamp does not light after power	Lamp power cord is not connected or short circuit	Connected lighting power cord
2. After connecting some of the load the controller does not work	The connected load is too large,so that it has burned in some of the components of the controller	Replace parts of components or replace the controller
3. After connecting to power the controller is working properly,but remote control can not work	1. The blank on the button cell of remote controller did not pulled out 2. the remote controller do not target the receiver	1.Take away the transparent blank 2.Target the remote controller to the receiver

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
