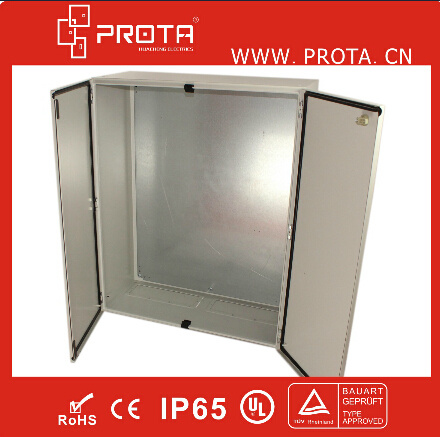

Double Doors Ptd Steel Wall Mounting Enclosures
| Price: |
US $ 20-220/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Material: |
Cold-Rolled Sheet Steel |
| Color: |
Ral7032 & Ral7035 |
| Surface Finish: |
Epoxy Thermosetting Powder Coating |
| Thickness: |
1.2mm&1.5mm |
| Lock: |
Plastic Lock & Metal Lock |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Application Range: |
Electrical Distribution |
| Shell Protection Grade: |
IP66 |
| Brand: |
Porta |
Product Description
Waterproof Metal Wall Mounting Enclosures with Plexiglass Door
Standard Configuration1. Standard configuration: galvanized / orange painted mounting plate, locking system, gland plate, sealing gasket and fixing accessories.
2. Material and thickness: cold-rolled sheet steel
Door: 1.2mm & 1.5mm
Body: 1.2mm & 1.5mm
Mounting plate: 1.5mm & 2.0mm
When the enclosure is less than 800mm high, body and door is 1.2mm THK, mounting plate is 1.5mm THK; if over 800mm high, body and door is 1.5mm THK, mounting plate is 2.0mm THK.
3. Surface: epoxy thermosetting powder coating, textured finish
4. Color: RAL 7032 RAL 7035 or any other colors on your request
5. Protection degree: IP 66
Craftsmanship feature
1. There are strengthening strips with pilot holes is welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2. The PU foam sealing gasket inside the door.
3. The door can be opened 130° by the plugging hinges
4. The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.
5. There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.
6. There's a sealing gasket at the bottom gland plate, ensures the IP protection level
Selection Table| Model No. | H(mm) | W(mm) | D(mm) | Model No. | H(mm) | W(mm) | D(mm) |
| PTP2 215 | 200 | 200 | 150 | PTP5 425 | 500 | 400 | 250 |
| PTP3 215 | 300 | 200 | 150 | PTP6 425 | 600 | 400 | 250 |
| PTP3 315 | 300 | 300 | 150 | PTP7 525 | 700 | 500 | 250 |
| PTP4 315 | 400 | 300 | 150 | PTP8 625 | 800 | 600 | 250 |
| PTP5 315 | 500 | 300 | 150 | PTP9 625 | 900 | 600 | 250 |
| PTP3 2520 | 300 | 250 | 200 | PTP4 330 | 400 | 300 | 300 |
| PTP3 320 | 300 | 300 | 200 | PTP5 530 | 500 | 400 | 300 |
| PTP4 420 | 400 | 400 | 200 | PTP6 430 | 600 | 400 | 300 |
| PTP5 520 | 500 | 500 | 200 | PTP7 630 | 700 | 600 | 300 |
| PTP6 620 | 600 | 600 | 200 | PTP8 630 | 800 | 600 | 300 |
| PTP7 620 | 700 | 600 | 200 | PTP9 630 | 900 | 600 | 300 |
| PTP8 620 | 800 | 600 | 200 | PTP4 440 | 400 | 400 | 400 |
| PTP3 2525 | 300 | 250 | 250 | PTP5 540 | 500 | 500 | 400 |
| PTP4 325 | 400 | 300 | 250 | PTP6 640 | 600 | 600 | 400 |
| PTP5 325 | 500 | 300 | 250 | PTP7 640 | 700 | 600 | 400 |
Other sizes avaliable onrequest .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, ple4se contact with us.
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

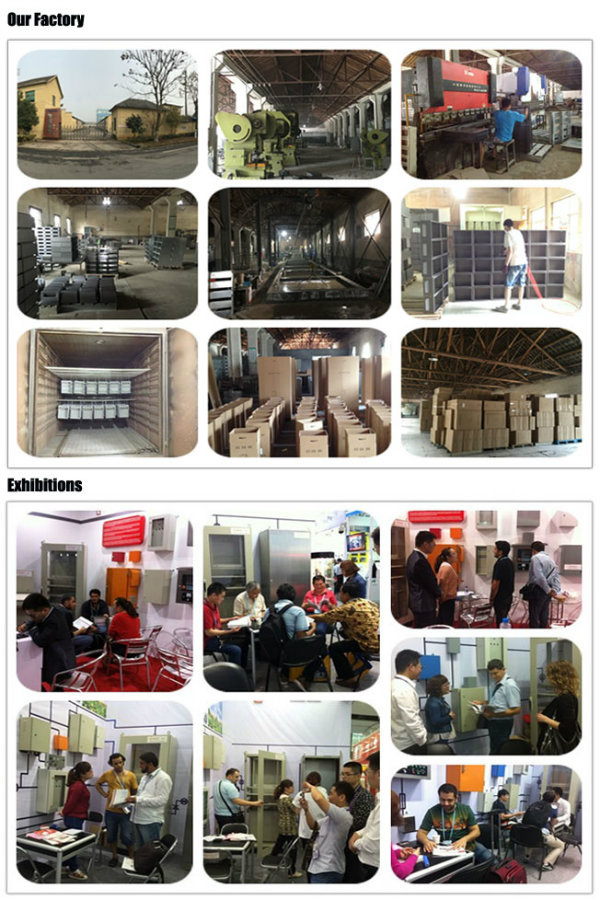

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information

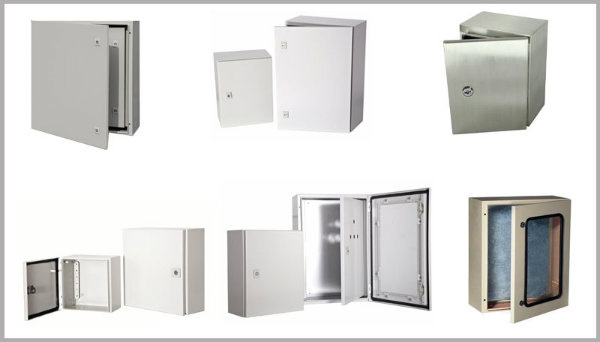

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
