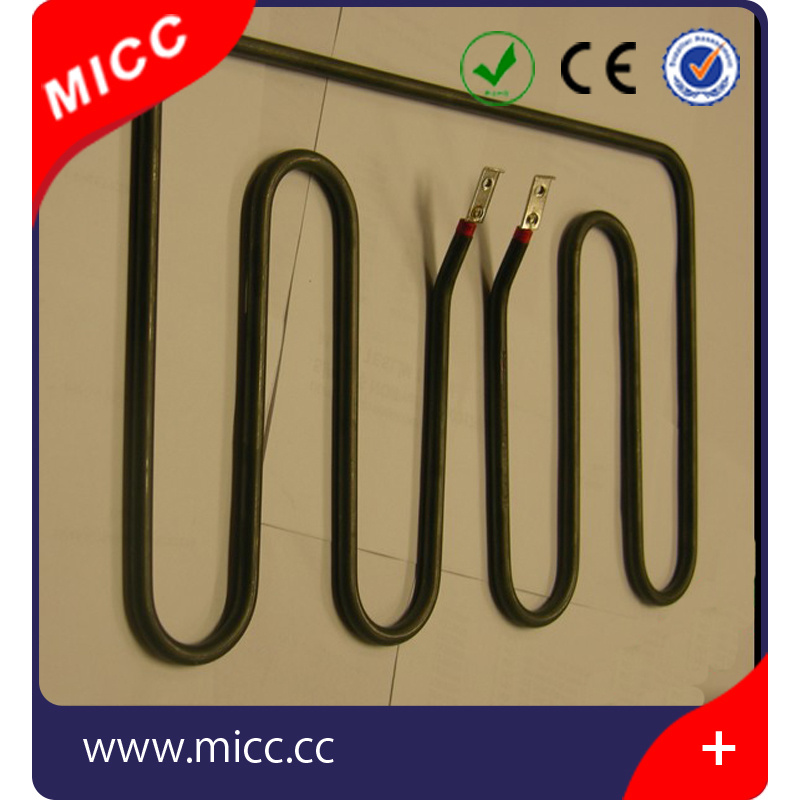

Double Heating Element

Name: Double Heating Element
Brand: all-electronics-online.com
SKU: 729468855
Availability: InStock
Rating: 4.7 (107 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Voltage:	12V~440V
Materials:	Stainless Steel, Copper
Power(W):	6000W
Application:	Heater
Structure Material:	Metal Material
Heat Transfer Surface:	Tubular Heat Exchanger

Product Description

Specifications

Tubular Elements are the most versatile, dependable and rugged of any heat generation device. These qualities make it an ideal heat source for many applications. ASB uses precision wound 80-20 nickel-chrome wire to deliver an even heat distribution to the element sheath. High purity, grade A magnesium oxide is used as the internal insulation to insure the best thermal transfer and insulation resistance. A variety of electrical terminations, mounting fittings and brackets, along with the wide array of bending options, allow for easy integration into any heating system.

230v electric tubular heater element
Electric tubular heater element
Tech
Heat intensity
Not exceeding 30Wcm2 (advisable)
Power
Depends on the dimension
Escape of current (when cold)
<=0.1mA a 242 v.
Insulation (when cold)
5 Min Ohmios 500 Watts minimum
Dielectric strength
1500v. 1/seg
Working temperature
750º G max.
Tolerance of length
+/-1.5%
Tolerance of diameter
-0.01 a -0.06 m/m
Tolerance of cut of connexion
+/-15 mlm
Power tolerance (w)
5 % - 10 %
Cold areas
Depends on length and diameter 5-25mm
Advantage

1. Simple structure2. Long-time usage3. High efficient heater exchange 4. It could easy to bent into many kinds of shape5. Good insulation could withstand high voltage
Applications:
1. Caustic Cyanide used in gold processing

2. Hot water storage

3. Asphalt Wax

4. Caustic solutions Detergent

5. Sterilizing equipment

6. Heating oils

7. Plastic processing&packaging machinery

8. Ovens&dryers

9. Dies&Tools

10. Water& Oil heating appliances

11. Vending machines

12. Kitchen equipments

13. Medical equipments
Specially dimension also could be made as customer's demands. Pls supply detailed information about what you need. We are warranty the quality for two years at least.

MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!

According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.

We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
