| Prod Model: |
GYFTY53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Type: |
G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125 |
| Fiber: |
Doped Silica |
| Fiber Count: |
2-288 Cores |
| Tube: |
Loose Tube Stranded/Sz Stranded |
| Armored: |
Corrugated Steel Tape/Aluminium Tape |
| Central Strength Member: |
Steel Wire/FRP |
| Material Of Jacket: |
HDPE/Lszh /Flame Retardant Sheath |
| Bending Radius: |
Static 12.5*Cable-D: Dynamic 25*Cable-D |
| Applications: |
Direct Buried |
| Temperature: |
-40°c~+70°c |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Other |
| Core: |
2-288 |
| Brand: |
Efon |
| Sheath Material: |
HDPE/Lszh Sheath/Flame Retardant Sheath/Anti-Roden |
Product Description

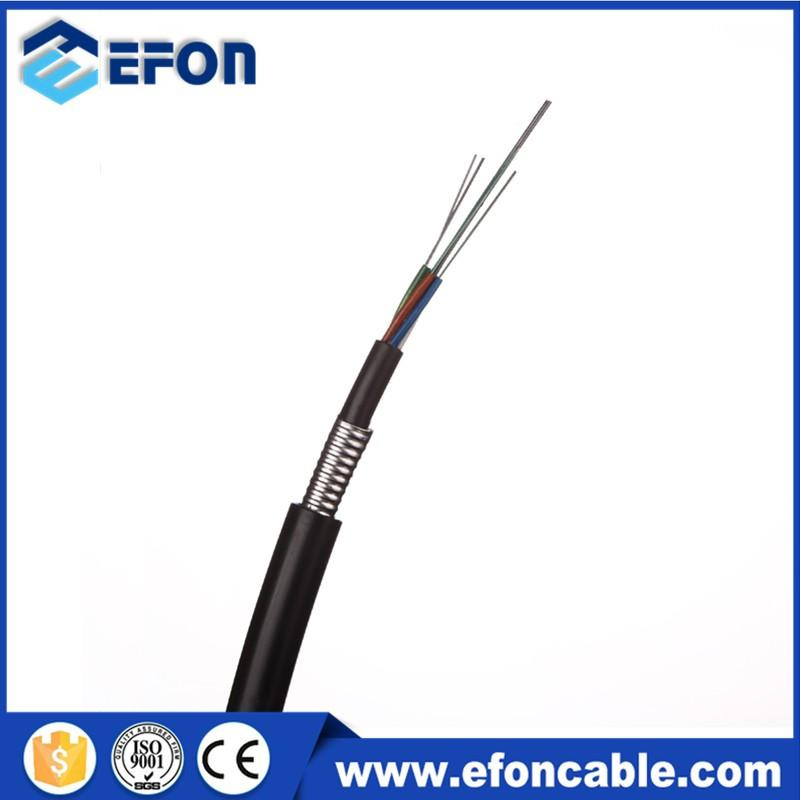

Double Jackets 12 Core G652D Singlemode Fiber Optic Cable OutdoorDescription:
Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts
with the flexibility and versatility required for today's most demanding installations, including direct buried. With
fiber counts up to 288 and S-Z strand designs.

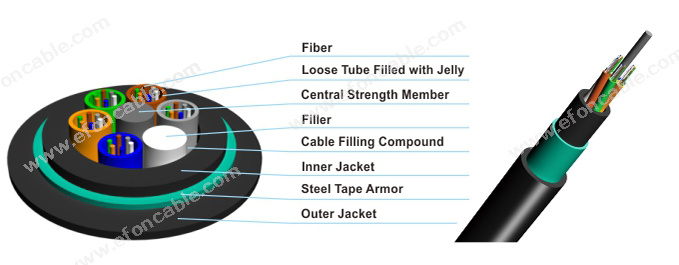

Cable Structure
Product Construction:
Fiber:
2-288 fiber
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire.
Armor:
Aluminum Tape Armor
Outer Jacket:
Black UV Polyethylene(PE)
Features:
- Up to 288 fibers.
- Loose tube gel-filled construction for superior fiber protection.
- Aluminum tape armor to protect cable from mechanical damage.
- UV and waterproof design.
Application:
- Interbuilding voice or data communication backbone.
- Installed in duct, underground conduit .
Optical Characteristics:
Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
Attenuation (+20X) | 850 nm | | | <3.0 dB/km | <3.3 dB/km |
1300 nm | | | <1.0 dB/km | <1.0 dB/km |
1310 nm | <0.36 dB/km | <0.40 dB/km | | |
1550 nm | <0.22 dB/km | <0.23 dB/km | | |
Bandwidth | 850 nm | | | >500 MHz-km | >200 Mhz-km |
1300 nm | | | >500 MHz-km | >500 Mhz-km |
Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | | |
Structure and Technical Specifications
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) |
Short Term | Long Term | Short Term | Long Term |
2~36 | 14.1 | 193 | 6 | 6 | 3000 | 1000 | 3000 | 1000 |
38~72 | 15.1 | 212 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
74~96 | 16.3 | 246 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
98~120 | 17.8 | 288 | 12 | 10 | 3000 | 1000 | 3000 | 1000 |
122~144 | 19.4 | 336 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
>144 | Available upon customer request |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
We produce and test cable comply with following standard:
Mechanical Performance |
Max Tension Performance | IEC 60794-1-2-E |
Max. Operation Tension | IEC 60794-1-2-E1 |
Crush Test | IEC 6079 -1-2-E3 |
Impact Test | IEC 60794-1-2-E4 |
Repeated Bending | IEC 60794-1-2-E6 |
Torsion Test | IEC 60794-1-2-E7 |
Cable bend | IEC 60794-1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance |
Temperature Cycling | IEC 60794-1-2-F1 |
Water Penetration | IEC 60794-1-2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
