Double Jackets Single Steel Tape Armoing Aeiral Self-Supporting Aerial Cable

Prod Model:	GYTC8Y53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Fiber Count:	2-288
Fiber:	Single Mode
Tube:	Sz Stranded
Armored:	Corrugated Steel Tape
Material Of Jacket:	PE/Lszh /Flame Retardant PE
Diameter Of Self Support Member:	7*1.0, 7*1.2, 7*1.4, 7*1.6mm
Self-Supporting Strength Member:	7 Stranded Steel Wires
Applications:	Aerial
Certificate:	ISO9001 Tlc RoHS
Type:	Single-mode Fiber
Application:	Communication
Certification:	CCC
Brand:	Efon
Core:	2-288
Sheath Material:	Lszh/PE Sheath/Flame Retardant Sheath/Anti-Rodent
Connection Structure:	Other

Product Description

Product Description

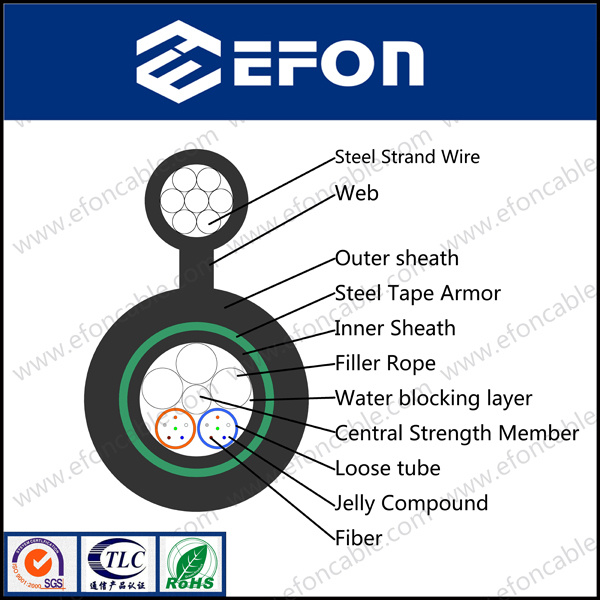

   The loose tube are made of high modulus plastics(PBT), which are filled with water resistant gel. Loose tube are stranded around the metallic central strength member.  Cable core is filled with filling compound which used for water resistance.  The PE jacket is applied for inner sheath. The corrugated steel tape is applied over inner sheath which provide for crush resistant. Outer sheath is made of UV resistance PE jacket. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.

Characteristics:

1.Self-supporting member could be  7*1.0, 7*1.2, 7*1.4, 7*1.6mm
2.Excellet mechanical and environmental performance.
3.Double sheath single armoring provide good crush and rodent resistant

Application:

1.Adopted to Outdoor distribution.
2.Suitable for aerial install.
3.Long distance and local area network communication.

Products Standard

Mechanical Performance :
Max Tension Performance  : IEC 60794–1-2-E
Max. Operation Tension     : IEC 60794–1-2-E1
Crush Test                        : IEC 6079 –1-2-E3
Impact Test                      : IEC 60794–1-2-E4
Repeated Bending              : IEC 60794–1-2-E6
Torsion Test                     : IEC 60794–1-2-E7
Cable bend                        : IEC 60794–1-2-E11A
Attenuation Coefficient       : ITU-T G.652
Structural Test                  : IEC-60793-1-20
Environmental Performance
Temperature Cycling         : IEC 60794–1-2-F1
Water Penetration             : IEC 60794–1–2-F5B
Filing Compound Flow      : IEC 60794-1-E14

Technical Parameters:  Sample cable with 7*1.0mm self-supporting steel wires
Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)			minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage  temperature
	(MM)	(KG)	short term		long term	short term	long term	short term	long term	(ºC)
4-36	12×20.2	210.00	4000		1000	3000	1000	20D	10D	-40+60
36-72	13.2x21.4	240.00	4000		1000	3000	1000	20D	10D	-40+60
72-96	14.8x23.0	270.00	4000		1000	3000	1000	20D	10D	-40+60
96-144	16.9x25.1	315.00	4000		1000	3000	1000	20D	10D	-40+60
