| Prod Model: |
GYTY53 Armoured 12 Core Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Gyty53 Armoured 12 Core Fiber Optic Cable |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jerry |
| Color Of Loose Tube: |
Orange,Green , Brown,Red etc |
| Central Strength Member: |
Steel Wire or FRP |
| Double Armour Material: |
Corrugated Steel and Aluminium Tape |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Direct-Burial and Duct |
| Application: |
Armoured 12 Core Fiber Optic Cable |
| Certification: |
Reach,Tlc,etc |
| Type: |
Single-Mode or Multi-Mode Fiber |
| Brand: |
Tw-Scie or OEM |
| Allowed Lateral Pressure: |
Short Term 3000n; Long Term 1000n |
| Allowed Tensile Strength: |
Short Term 3000n; Long Term 1000n |
| Core: |
2-288 Core |
| Sheath Material: |
MDPE / HDPE / Lszh PE |
| Connection Structure: |
Armoured 12 Core Fiber Optic Cable |
Product Description

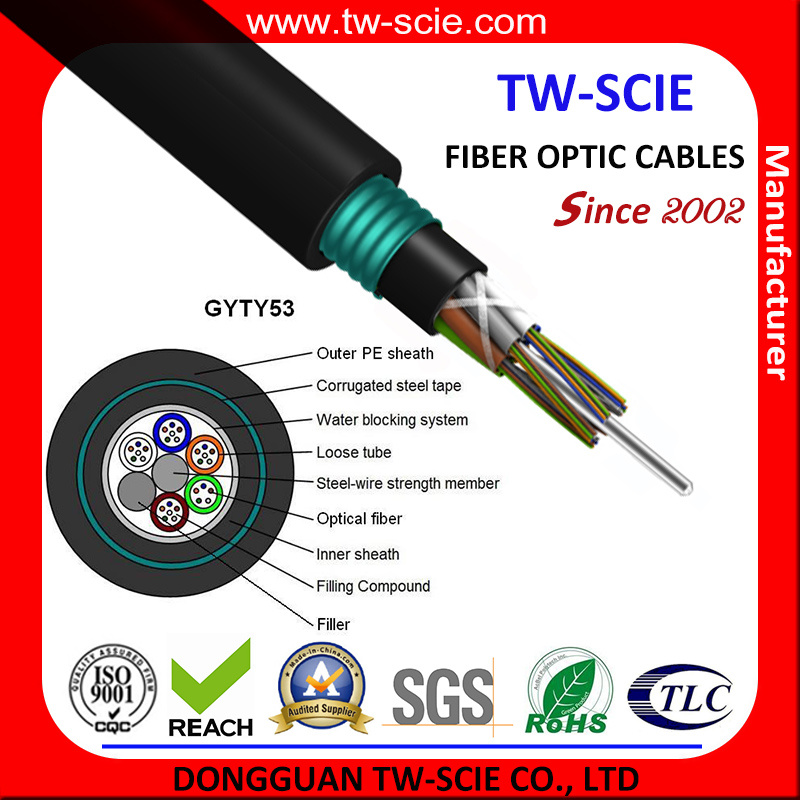

Double Sheath Armoured 12 Core Fiber Optic Cable Details:
Product Description
This Double Sheath Armoured 12 Core Fiber Optic Cable are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. Double Sheath Armoured 12 Core Fiber Optic Cable are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Double Sheath Armoured 12 Core Fiber Optic Cable Features:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible bending radius
Double Sheath Armoured 12 Core Fiber Optic Cable Application:
Long haul / backbone application
Direct-Burial and Duct installation
Double Sheath Armoured 12 Core Fiber Optic Cable Technical data:
Technical data: |
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-24 | 13.3 | 210 | 12.5 times O.D. | 25 times O.D. | 3000 | 1000 | 3000 | 1000 |
| 26-36 | 13.6 | 220 |
| 38-60 | 14.1 | 225 |
| 62-72 | 14.6 | 255 |
| 74-96 | 16.2 | 305 |
| 98-120 | 17.7 | 350 |
| 122-144 | 19.1 | 395 |
| 146-216 | 19.6 | 420 |
| 218-240 | 22.8 | 530 |
| 242-288 | 25 | 620 |
