Double Sided Flexible PCB 0.3mm Thick FPC Immersion Gold
| Price: |
US $ 1.35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-1827-V46 |
| Board Thickness: |
0.3mm |
| Surface Cu Thickness: |
35 Um (1oz) |
| Coverlay Colour: |
Yellow |
| Color Of Silkscreen: |
No Required |
| Peeling Test Of Coverlay: |
No Peelable |
| Surface Finish: |
Immersion Gold |
| RoHS Required: |
Yes |
| Thickness Of Coverlay: |
25 Um |
| Stiffener Thickness: |
None |
| Test: |
100% Electrical Test |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Wireless Router |
Product Description

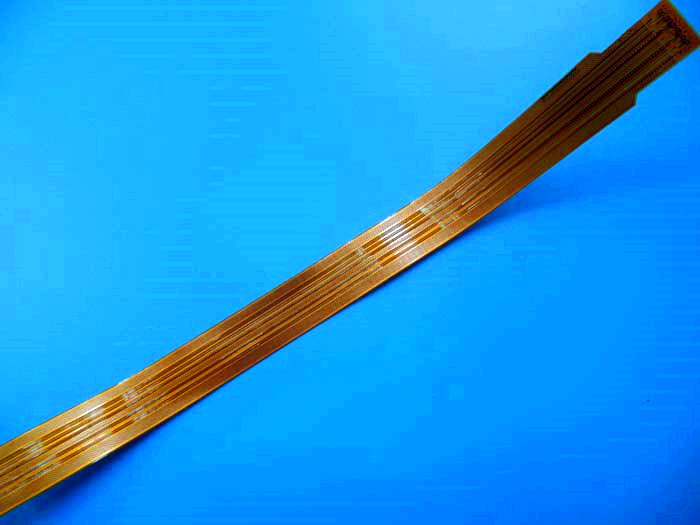

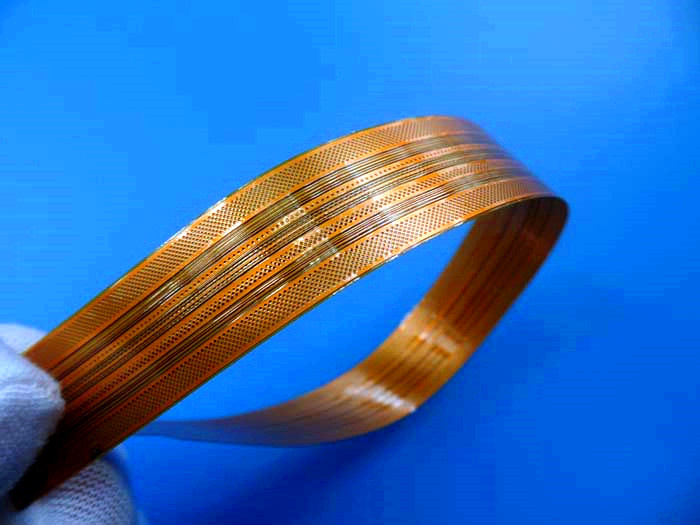

Wireless router Double-Sided Flexible PCB 0.3mm thick FPC with Immersion Gold 383
Commodity Introduction
This is a type of Flexible PCB for the application of Wireless Router. It's a double sided FPC at
0.3mm thick. The base laminate is using from Shengyi. It's fabricated per IPC 6012 Class 2 usi
-ng supplied Gerber data.
Parameter & Data Sheet| Size of Flexible PCB | 300.5X 25.5mm |
| Number of Layers | 2 |
| Board Type | Flexible circuits |
| Board Thickness | 0.30mm |
| Board Material | Polyimide (PI) 25µm |
| Board Material Supplier | Shengyi |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | ≥20 µm |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35um |
| |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | NO |
| Stiffener Thickness | N/A |
| |
| Type of Silkscreen Ink | NO |
| Supplier of Silkscreen | N/A |
| Color of Silkscreen | N/A |
| Number of Silkscreen | N/A |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
