Double Sided LED PCB Circuit with Blask Mask

Name: Double Sided LED PCB Circuit with Blask Mask
Brand: all-electronics-online.com
SKU: 826862225
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	US $ 0.81/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-09292-V1
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Processing Technology:	Immersion Gold
Base Material:	Copper Clad Laminate
Brand:	Bicheng

Product Description

Double sided PCB cirucits With Immersion Gold Blask Mask

Commodity Introduction

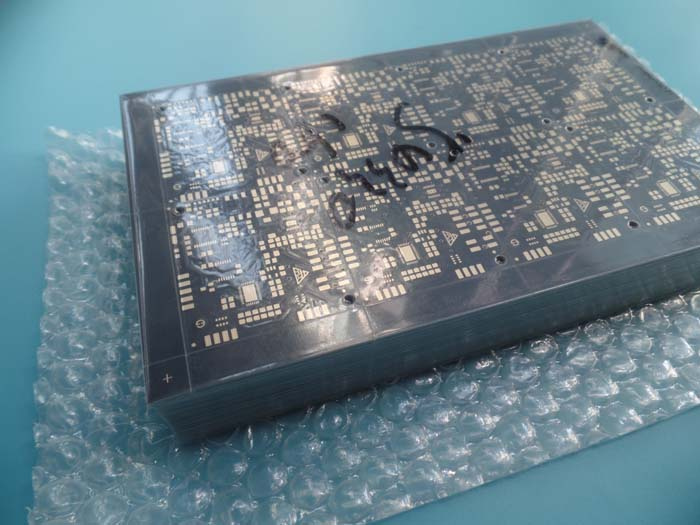

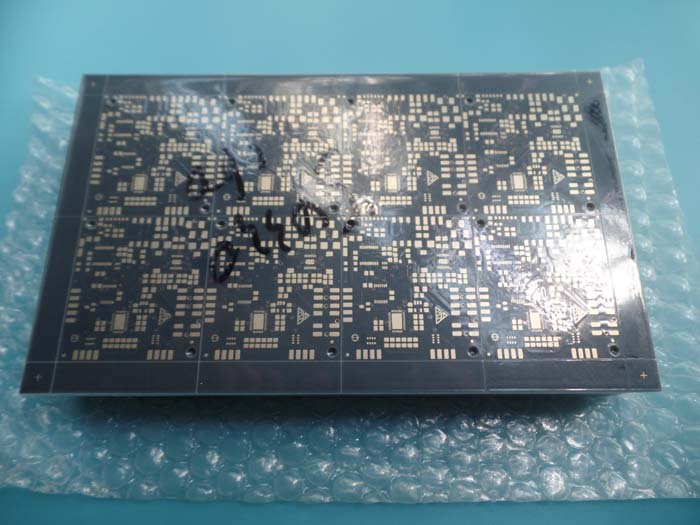

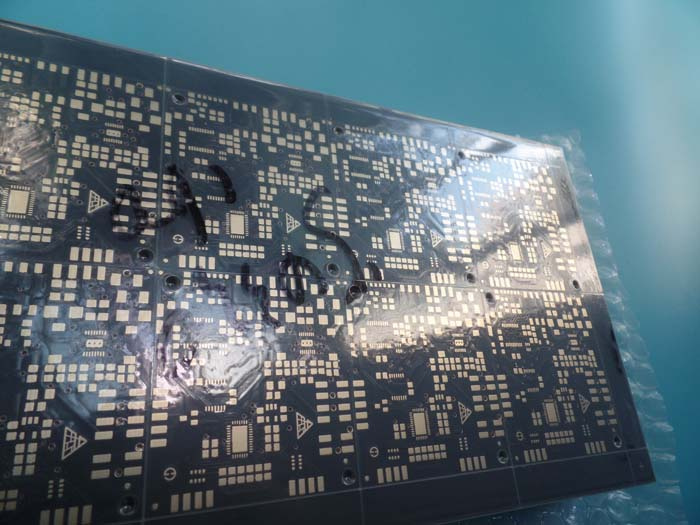

This is a type of 2 layer PCB for the application of Vehicle Tracking Device at 1.6mm thick with Immersion gold pad finish. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.

Parameter & Data Sheet

Number of Layers	2
Board Type	Double Sided PCB
Board Thickness	1.6mm +/-0.16
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

PTH Cu thickness	≥20 um (See hole wall details)
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 um (1oz)

Solder Mask Type and Model No.	LPSM, KSM-S6189BK31
Solder Mask Supplier	KUANGSHUN
Solder Mask Colour	Black
Number of Solder Masks	2
Thickness of Solder Mask	13um

Type of Silkscreen Ink	n/a
Supplier of Silkscreen	n/a
Color of Silkscreen	n/a
Number of Silkscreen	n/a

Mininum Trace (mil)	7.9 mil
Minimum Gap(mil)	5.5 mil

Surface Finish	Immersion gold
RoHS Required	Yes
Warpage	0.25%

Thermal Shock Test	Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test	Pass, 255±5ºC,5 seconds Wetting Area Least 95%
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6012C Class 2

Microsection Hole Wall (um)

Hole Wall Cu Thickness			≥20 um	Hole Wall Cu Roughness			≤25.4 um
NO.	A	B	C	D	E	F	AVE
1	24.837	23.637	23.697	25.337	24.617	24.247	24.395
2	25.797	24.597	24.657	26.297	25.577	25.207	25.355
3	26.239	25.039	25.099	26.739	26.019	25.649	25.797

Outline dimension Unit: mm

NO.	Required Dimension (toerance)		Actual dimension
1	204.00	±0.15	204.07	203.99	203.99	204.02
2	122.00	±0.15	1211.98	121.99	122.03	121.89

Hole Size and Slot Dimension (mm)

NO.	Requerment Dimension (tolerance)		PTH/NPT	Actual dimension
1	3.200	±0.05	N	3.200	3.175	3.225	3.200

Design For Manufacturability ( DFM 5)
