| Prod Model: |
Bic-14438-v2.2 |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Processing Technology: |
Immersion Gold |
| Base Material: |
Copper Clad Laminate |
| Brand: |
Bicheng |
Product Description

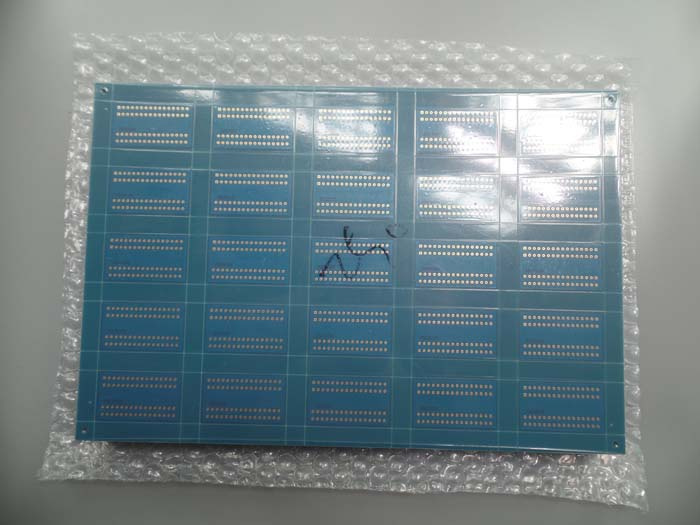

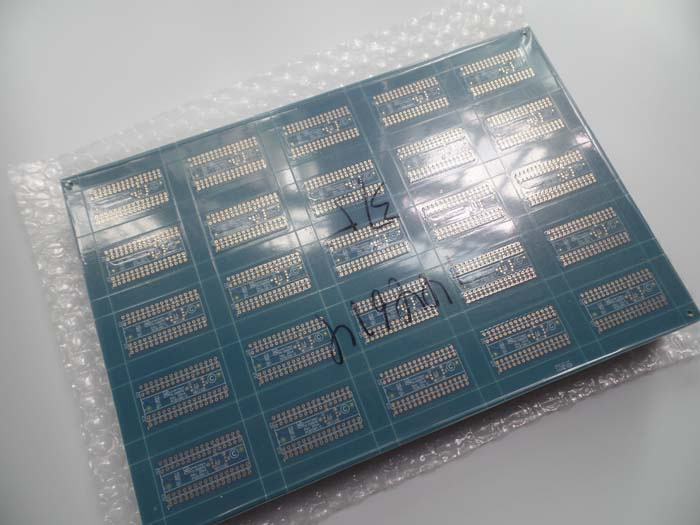

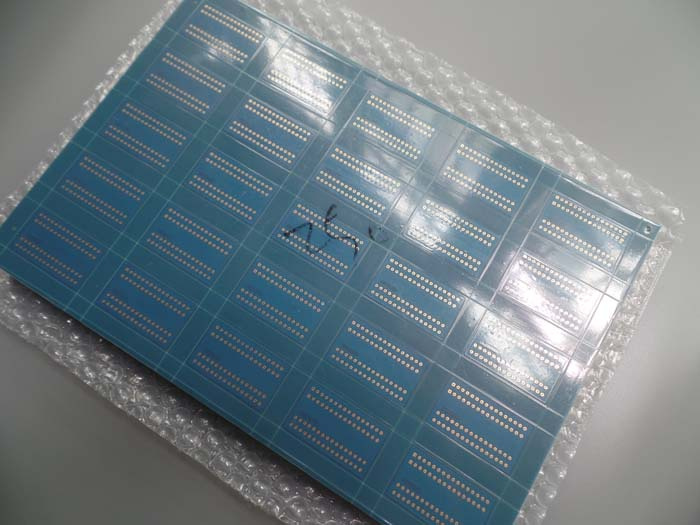

Double Sided PCB 2.2mm PCB Board Dual Layer PCB Immersion Gold PCB 367
Commodity IntroductionThis is a type of 2 layer PCB for the application of Wireless Transmitter at 2.2mm thick with Immersion gold pad finish. The base laminate is from ITEQ, Matt blue Solder mask from Kuangshun and White silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.
Parameter & Data Sheet| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Thickness | 2.2mm +/-0.22 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, KSM-S6189BL31 |
| Solder Mask Supplier | KUANGSHUN |
| Solder Mask Colour | Matt Blue |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | Whie |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 7 mil |
| Minimum Gap(mil) | mil |
| |
| Surface Finish | Immersion gold |
| RoHS Required | Yes |
| Warpage | 0.10% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um) | Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 24.216 | 23.016 | 23.076 | 24.716 | 23.996 | 23.626 | 23.774 |
| 2 | 26.900 | 25.700 | 25.760 | 27.400 | 26.680 | 26.310 | 26.458 |
| 3 | 24.575 | 23.375 | 23.435 | 25.075 | 24.355 | 23.985 | 24.133 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 291.08 | ±0.15 | 291.15 | 291.18 | 290.99 | 291.14 |
| 2 | 195.88 | ±0.15 | 195.96 | 195.89 | 195.85 | 195.91 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.710 | ±0.075 | Y | 0.725 | 0.700 | 0.750 | 0.725 |
Quality policyBicheng has developed series of management procedures and approaches to assure that PCBs are in compliance with the customers' requirements, inclusive of selection of the vendors, work in progress (WIP) inspection, outgoing delivery inspection and customer service etc. Evaluation and Audit of Suppliers Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers every year to guarantee the materials supplied are meeting Bicheng's requirements. Furthermore, Bicheng continuously develop suppliers and supervise them to improve their quality and environment management basing on the systems of ISO9001 & ISO14001. Contract Evaluation Bicheng shall review and verify customer's requirements to make sure that we have the capability to satisfy customers' requirements including specifications, delivery and other demands prior to accepting an order. Making, audit and control of manufacturing data.When customers' design data and specifications are provided to our market department, Bicheng has to verify all the requirements. Then, convert the design data into manufacturing data by CAM. Finally, a manufacturing instruction (MI) is generated according to the real manufacturing process and technologies for manufacturing department as the basis for actual fabrication. MI must be reviewed by independent engineers and QA engineers before issue. Incoming Material Quality ControlAll materials have to be inspected before warehousing. We established a series of strict inspection procedure and instruction to control the incoming materials. Furthermore, various precise inspecting instruments and apparatus guarantee the capability to judge the material good or not. We issue material with first in first out principle, and give out "alarm" for the material that will reach the shelf life to ensure the materials are used up before expiry.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
