Double Sided PCB Black Fr4 Circuit Board OEM
| Price: |
US $ 1.03/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-656-V6.56 |
| Surface Thickness: |
1 Oz |
| Board Thickness: |
0.15mm |
| Coverlay Colour: |
Yellow |
| Stiffener Thickness: |
0.2mm |
| Pth Cu Thickness: |
≥20 µm |
| Surface Finish: |
Immersion Gold |
| Color Silkscreen: |
White |
| Peeling Coverlay: |
No Peelable |
| RoHS Required: |
Yes |
| Function: |
100% Pass Electrical Test |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Surveillance System |
| Insulation Materials: |
Polyimide |
| Brand: |
Bicheng |
Product Description
Company ProfileYou're benefit from following 5 types of 2 layer PCB's from Bicheng Enterprise Limited.

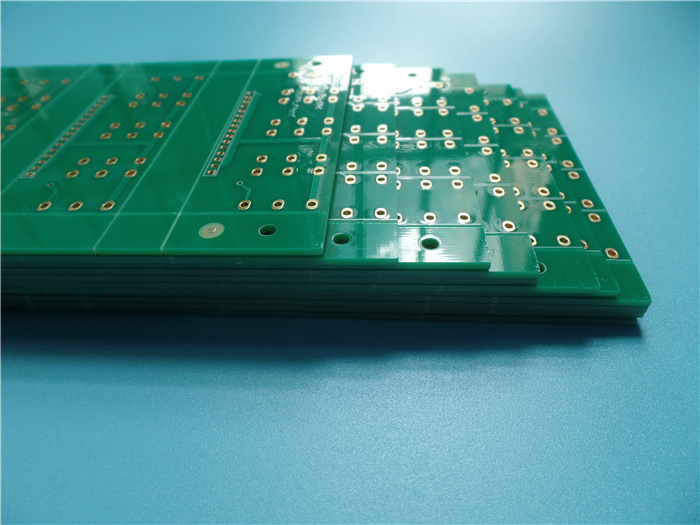

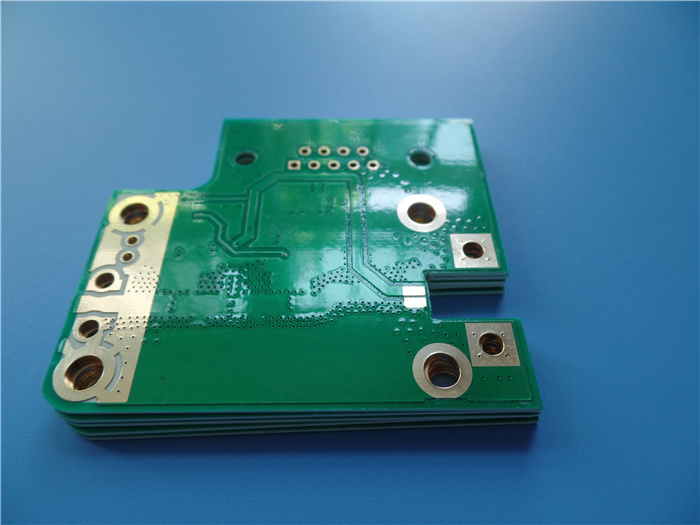

(1) FR-4 material (The most common used today)
Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB
(2) High frequency material
RO4350B, RO4003C
PTFE (F4B series from China Brand)

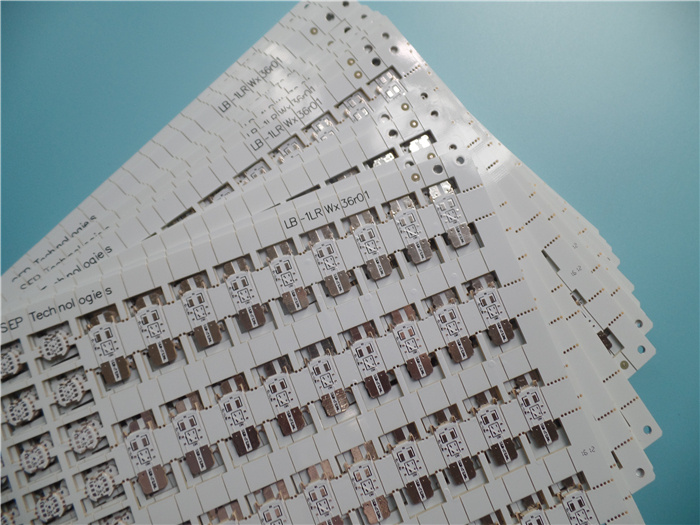

(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows
L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base

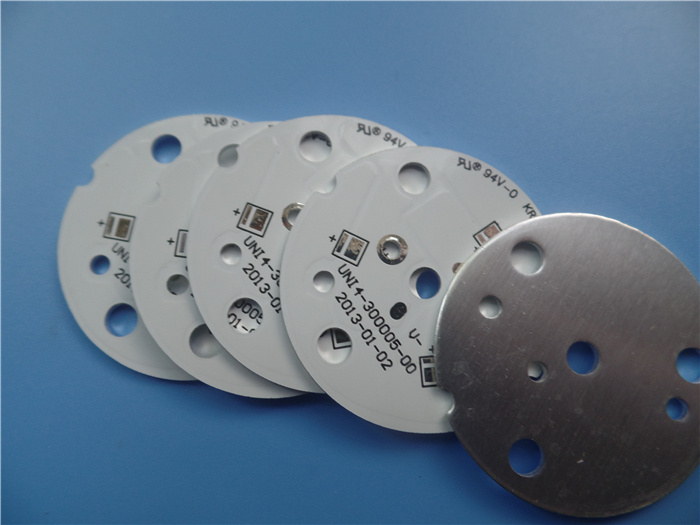

(4) Metal core PCB (MCPCB), typical stack-up as follows
L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor

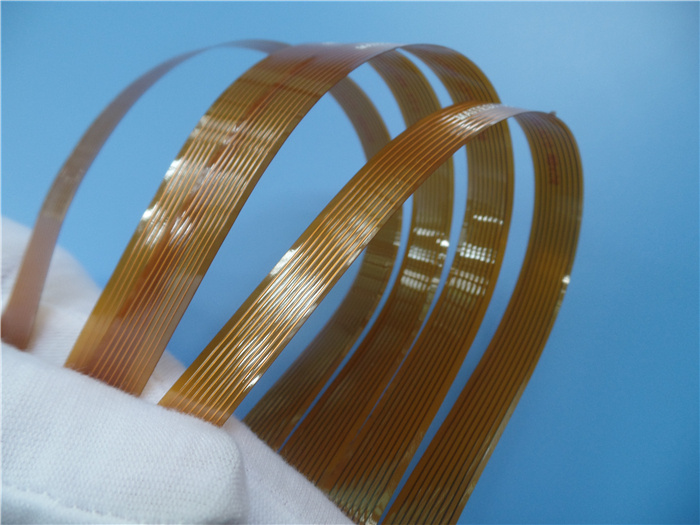

(5)Polyimide material (Flexible PCB)
Printed Circuit Board
High Frequency PCB
Aluminum PCB
Flexible PCB
Technology informationDesign For Manufacture| Serial NO. | Procedure | Item | Manufacturing capability |
Large
volume
(S<100 m²) | Middle
volume
(S<10 m²) | Prototype
(S<1m²) |
|
| 1 | Inner layer
(18um, 35um,
70um etc are
finished copper.
If not mentioned
copper, finished
1oz is the default
value ) | Min.isolation
of layers | 0.1mm | 0.1mm | 0.06mm |
| 2 | Min.track
and spacing | 5/5mil
(18um) | 4/4mil
(18um) | 3/3.5mil
(18um) |
| 3 | 5/5mil
(35um) | 4/4mil
(35um) | 3/4mil
(35um) |
| 4 | 7/9mil
(70um) | 6/8mil
(70um) | 6/7mil
(70um) |
| 5 | 9/11mil
(105um) | 8/10mil
(105um) | 8/9mil
(105um) |
| 6 | 13/13mil
(140um) | 12/12mil
(140um) | 12/11mil
(140um) |
| 7 | Min.distance
from drill to
conductor | 4 Layer
10mil,6
layer
10mil,
8-12
layer
12mil | 4 layer
8mil,6 layer
8mil,8-12
layer 10mil,
14-20 layer
14mil,22-32
layer 18mil | 4 layer
6mil,6
layer 6mil,
8-14 layer
8mil,16-22
layer 12mil,
24-32 layer
14mil |
| 8 | Min.width of
annular ring
on inner layer | 4 Layer
10mil
(35um),
≥6 Layer
14mil
(35um) | 4 Layer
8mil
(35um),
≥6 layer
12mil
(35um) | 4 Layer
6mil
(35um),
≥6 Layer
10mil
(35um) |
| 9 | Inner layer
isolation ring
width(Min) | 10mil
(35um) | 8mil
(35um) | 6mil
(35um) |
| 10 | Min.via pad
diameter | 20mil
(35um) | 16mil
(35um) | 16mil
(35um) |
| 11 | Min. distance
from board
edge to
conductor(no
copper
exposured)
(inner layer) | 14 mil
(35um) | 12 mil
(35um)) | 8 mil
(35um) |
| 12 | Maximum
copper weight
(Inner layer
and outer layer) | 3 OZ
(105 um ) | 4 OZ
(140 um ) | 6 OZ
( 210 um ) |
| 13 | Core with
different copper
foil on both sides | / | 18/35,
35/70 um | 18/35,
35/70 um |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
