Name: Double Sided PCB Board 1 Oz Copper with HASL
Brand: all-electronics-online.com
SKU: 823729945
Availability: InStock
Rating: 5 (104 reviews)

Price:	US $ 1.08/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-399-V3.99
Board Thick:	1.58-1.64mm
Surface Finish:	HASL Lead Free
Outer Copper Foil:	43.37 Um
Solder Mask Color:	Green
Silk Screen:	No
Min Line Width (Mil):	7.2 Mil
Min Line Spacing (Mil):	7.3 Mil
Electronic Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Forming:	V-Cut
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

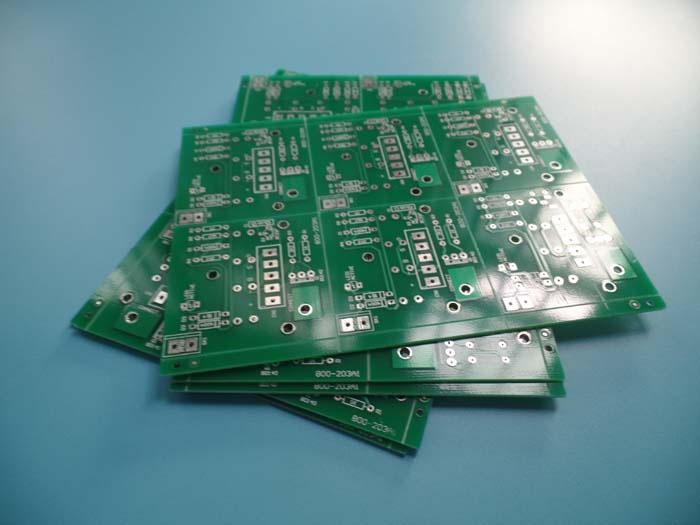

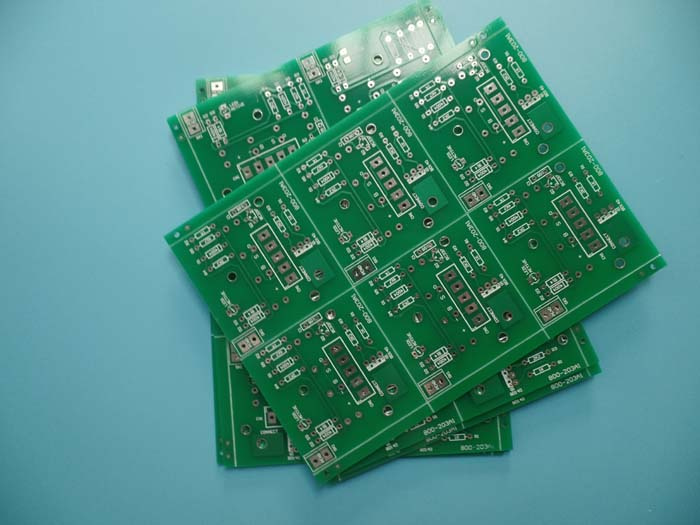

Double sided PCB board 1oz copper with HASL Lead Free

Commodity Introduction

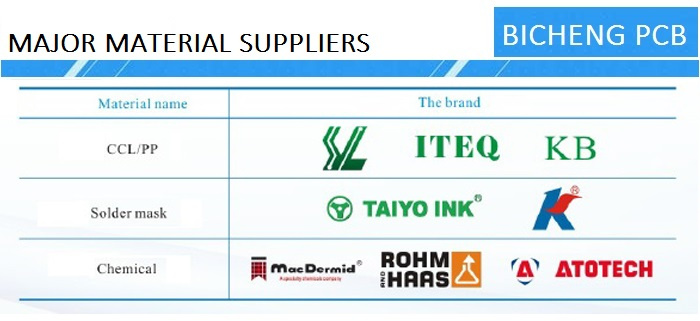

This is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.58mm thick. The base laminate
is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.60±10%mm	1.58-1.64mm
	Outer copper foil	>=35 um	43.37um
	Inner copper foil	/	/
	Warp-twist	<= 0.75%	0.90%
Legend	Type	IJR-4000 MW300	IJR-4000 MW300
	Color	White	White
	Location	CS & SS	CS & SS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		7	7.2
Min line spacing (mil)		7.5	7.3
Min ring width (mil)		NA	NA
Solder Mask	Type	PSR-2000GT600D	PSR-2000GT600D
	Color	Green	Green
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	HASL Lead free		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.750±0.076	Y	0.750	0.725	0.775	0.750
2	1.000±0.076	Y	1.000	0.975	1.025	1.000
3	1.200±0.076	Y	1.200	1.175	1.225	1.200
4	1.700±0.05	N	1.700	1.675	1.725	1.700
5	2.000±0.05	N	2.000	1.975	2.025	2.000
6	3.000±0.05	N	3.000	2.975	3.025	3.000

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	185.17±0.15	185.15	185.07	185.26
2	203.71±0.15	203.71	203.77	203.71

PCB fabrication Process

1). Contact PCB fabricator
Contact your satisfied vendor such as Bicheng. You're registered and will be quoted for you. Place your order
and follow up the production schedule.

2). Material cutting
Purpose: According to the requirement from engineering data, cut the large plate which is in compliance with
the requirement into small pieces of production board piece to meet customer requirements of the small sheet.

3). Drill
Purpose: According to the requirement from engineering data, drill all the holes.

4). Copper deposition
Purpose: Copper deposition is a thin copper deposit on the wall of the insulating hole by chemical method

5). Pattern transfer
Purpose: Pattern transfer is the transfer of image production on the film to the board

6). Pattern plating
Purpose: Pattern electroplating is a layer of copper or gold over nickel or tin that requires a thickness plated
on the exposed copper of the pattern graphic or on the hole wall.

7). Film stripping
Purpose: The NaOH solution is used to strip the anti-plating film to expose the non-pattern circuit layer.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

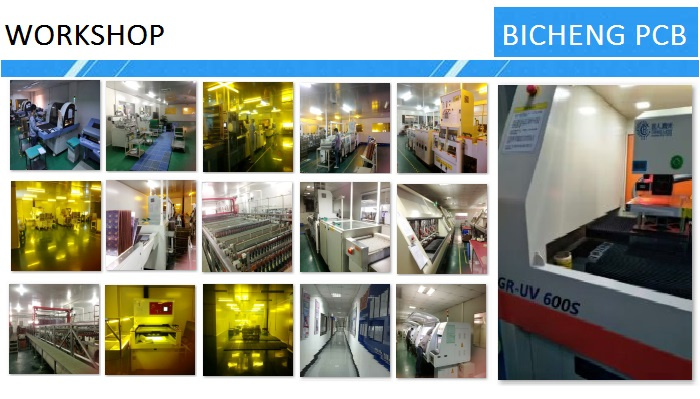

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
