Double Sided PCB Fr4 Kuang Shun Black Soldermask Copper Board
| Price: |
US $ 0.39/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1341R3.8 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Black |
| Board Thick: |
1.6mm |
| Legend Color: |
White |
| Copper Thick: |
1 Oz |
| Mininum Trace (Mil): |
5.1 Mil |
| Minimum Gap(Mil): |
5.1 Mil |
| Warpage: |
0.18% |
| RoHS Required: |
Yes |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

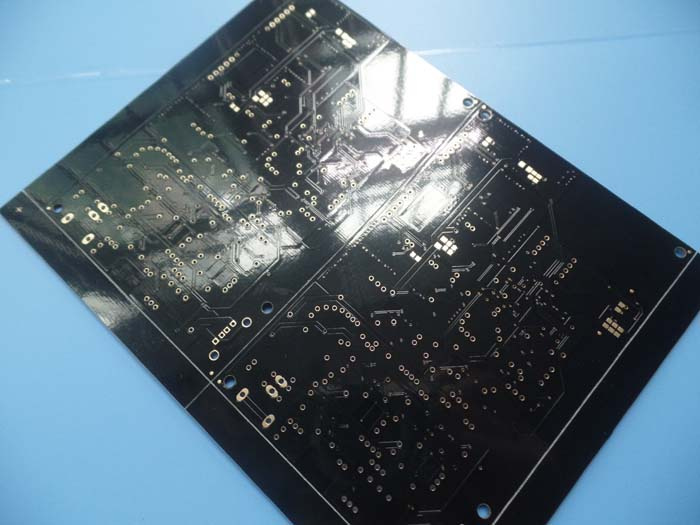

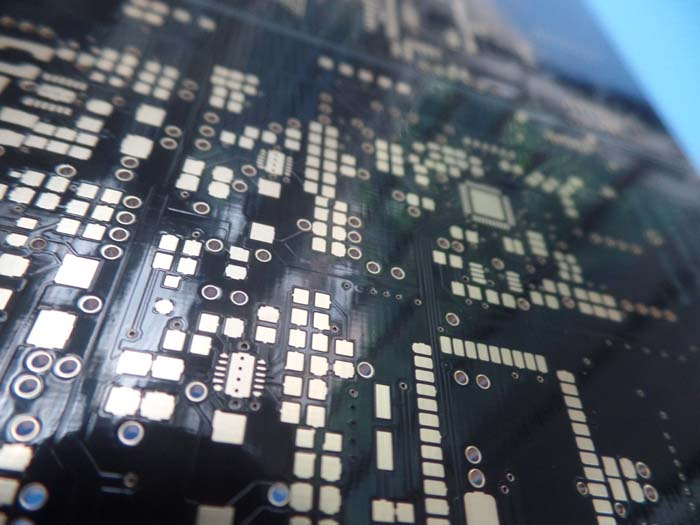

Double sided PCB FR4 Kuang Shun Black soldermask copper board 1 oz with Immersion
Gold
Commodity IntroductionThis is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.6mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Thickness | 1.6mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥23.4 um |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, KSM-S6189BK31 |
| Solder Mask Supplier | KUANGSHUN |
| Solder Mask Colour | Black |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | N/A |
| Supplier of Silkscreen | N/A |
| Color of Silkscreen | N/A |
| Number of Silkscreen | N/A |
| |
| Mininum Trace (mil) | 5.1 mil |
| Minimum Gap(mil) | 5.1 mil |
| |
| Surface Finish | Immersion gold |
| RoHS Required | Yes |
| Warpage | 0.18% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds,
3 cycles. No delamination,
no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
PCB fabrication Process
1). Contact PCB fabricator
Contact your satisfied vendor such as Bicheng. You're registered and will be quoted for you.
Place your order and follow up the production schedule.
2). Material cutting
Purpose: According to the requirement from engineering data, cut the large plate which is in
compliance with the requirement into small pieces of production board piece to meet customer
requirements of the small sheet.
3). Drill
Purpose: According to the requirement from engineering data, drill all the holes.
4). Copper deposition
Purpose: Copper deposition is a thin copper deposit on the wall of the insulating hole by
chemical method
5). Pattern transfer
Purpose: Pattern transfer is the transfer of image production on the film to the board
6). Pattern plating
Purpose: Pattern electroplating is a layer of copper or gold over nickel or tin that requires a
thickness plated on the exposed copper of the pattern graphic or on the hole wall.
7). Film stripping
Purpose: The NaOH solution is used to strip the anti-plating film to expose the non-pattern circuit
layer.
