Double Sided PCB Mass Production 1.6mm Thick at Competitive Price
| Price: |
US $ 1.05/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1295R1.6 |
| Board Thick: |
1.52-1.63mm |
| Colour Of Component Legend: |
White |
| Copper Thick: |
1 Oz |
| Solder Mask Color: |
Green |
| Surface Finish: |
HASL Lead Free |
| Minimum Trace and Space: |
5.5 Mil/6.8 Mil |
| Minimum/Maximum Holes: |
0.5/2.2mm |
| Board Plating: |
0.0030" |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Complex |
| Flame Retardant Properties: |
V0 |
Product Description

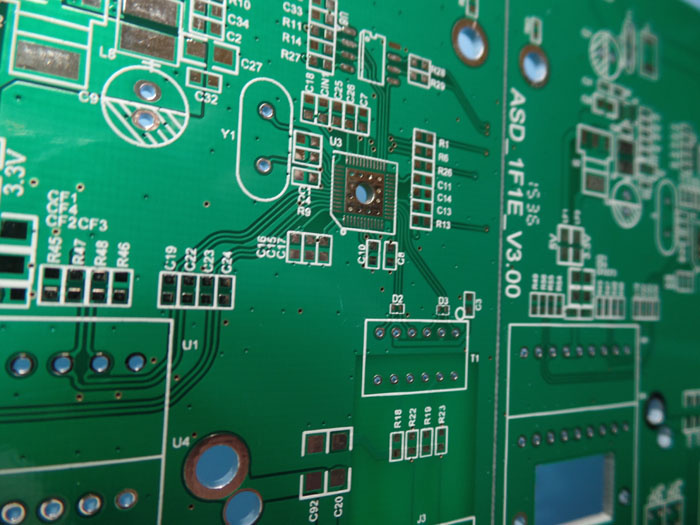

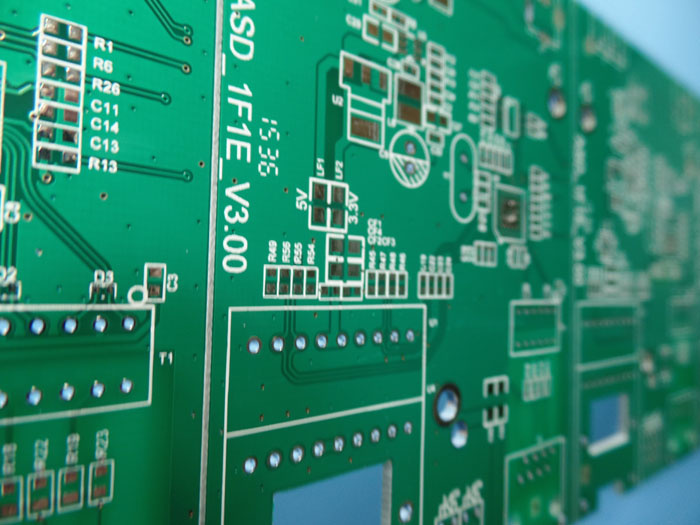

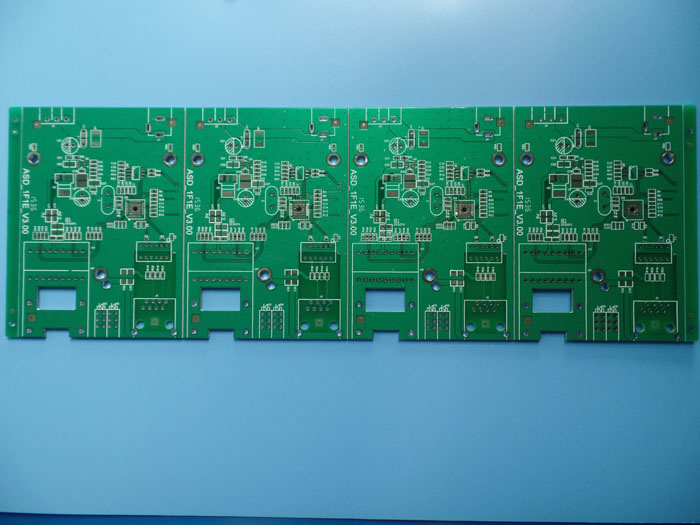

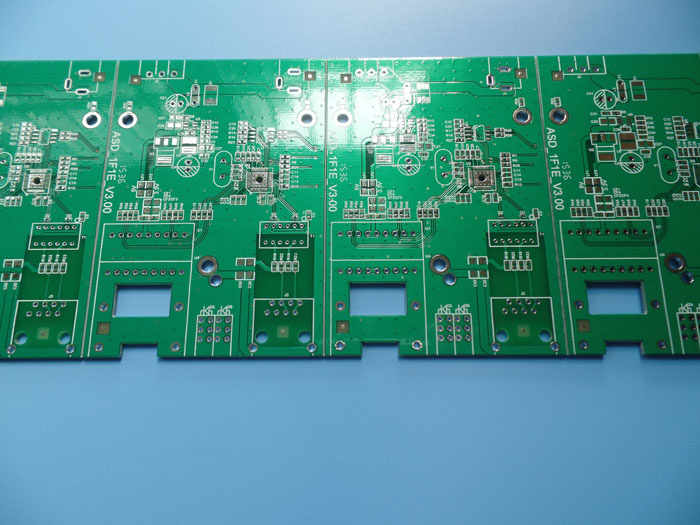

Double Sided PCB Mass Production 1.6mm Thick HASL Pb Free At Competitive Price
Applied In Data Logging Device
Commodity Introduction
This is a type of FR-4 PCB for the application of Data Logging Device. It's a 2 layer board at
1.52-1.63mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels
are packed separately.
Parameters & Data Sheet| PCB SIZE | 236 x 59mm=14PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17um(0.5oz)+plate TOP layer |
| FR-4 1.5mm (ITEQ IT-140) |
| copper ------- 17um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.5mil/6.8mil |
| Minimum/Maximum Holes: | 0.5/2.2mm |
| Number of Different Holes: | 6 |
| Number of Drill Holes: | 230 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140, TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.53-1.62mm |
| PLATING AND COATING | |
| Surface Finish | HASL ,Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Data logging device, Satellite Antenna
AC To DC Power Converter
Adsl Modem Router
Inverter Circuit
Power Converters |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Fast PCB prototypes| Category | Fastest lead time | Stanardard lead time |
| 2 layer | 24 hrs | 4 days |
| 4 layer | 48 hrs | 5 days |
| 6 layer | 72 hrs | 7 days |
| 8 layer | 96 hrs | 9 days |
| 10 layer | 120 hrs | 11 days |
| 12 layer | 120 hrs | 12 days |
| 14 layer | 144 hrs | 15 days |
| 16-20 layer | Depends on specifications |
| 20 layer above | Depends on specifications |
