Double Sided PCB RO4350b Printed Circuit Board Immersion Gold Design
| Price: |
US $ 1.88/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-112-V1.12 |
| Final Foil External: |
1 Oz |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Gloss Green |
| Colour Of Component Legend: |
White |
| Via: |
Plated Through Hole(Pth) |
| Minimum Trace and Space: |
8 Mil/8 Mil |
| Minimum / Maximum Holes: |
0.3/3.0mm |
| Board Thick: |
0.8mm |
| Board Plating: |
0.0029" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
| Dielectric: |
RO4350b 30mil (0.762mm), Tg 288 |
Product Description

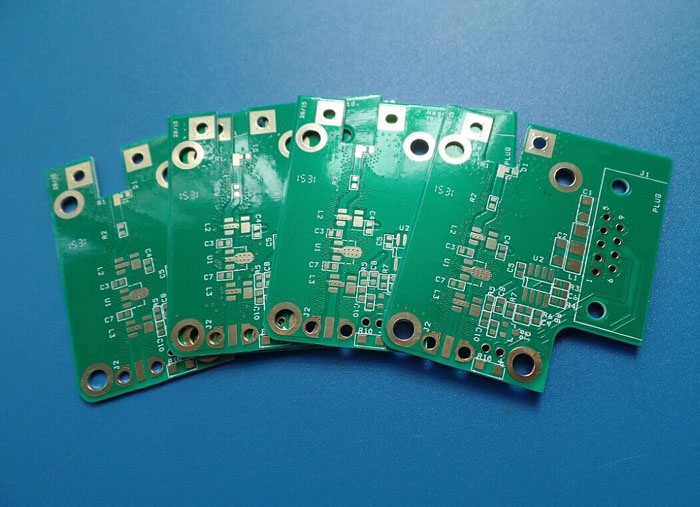

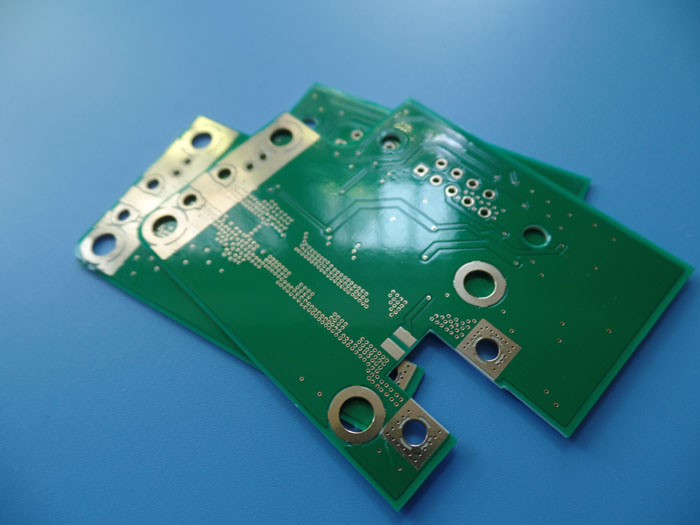

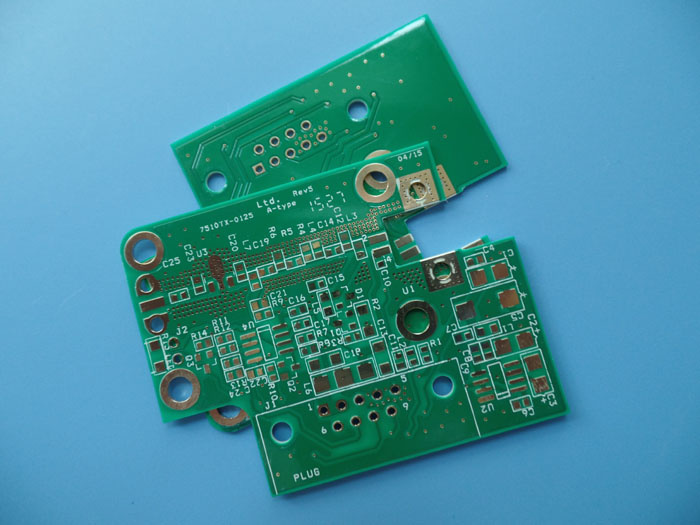

High frequency printed Circuit Board RO4350B 30mil(0.762mm) Tg288ºC immersion gold PCB Applied In VHF Radio
Commodity IntroductionThis is a type of RO4350B PCB for the application of VHF Radio. It's 2 layer board at 0.8mm thick. The base laminate is from ROGERS CORP, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class
2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 45 x 52mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17um(0.5oz)+plate TOP layer |
| RO4350B 30mil (0.762mm) |
| copper ------- 17um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 8mil/8mil |
| Minimum / Maximum Holes: | 0.3/3.0mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 82 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 30mil (0.762mm), Tg 288ºC |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.8mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.025µm over 3µm Nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | VHF radio, Electronic Products
Power Transformers
24V Transformer
Commercial Led Lighting
GPS Tracker Car |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Mass production capability The manufacturing facilities are independent industrial plant. There're 16000 square meters workshop area. And the brand new automatic equipment was introduced from Israel, Germany, Japan and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300 thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide each month. PRODUCTS & SERVICESa) FR-4 TG>135, High TG>170, High CTI>600Vb) RO4350B, RO4003C, F4B microwave materialc) Aluminum based PCB, 1W/MK-3W/MK materiald) Layer Count up to 32 layerse) Heavy Copperf) Hybrid Material Multilayer PCBg) Impedance Controlled PCBh) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin, OSPi) Colour of Solder mask: Green, Blue, Yellow, Black, Red and it's relative Matt colorj) Special holes: blind via, countersink hole, castellation hole, press-fit holek) Quick turn-around (QTA) Deliveryl) Minimum Order Quantity (MOQ) 1 pcsm) Door to Door shipment service SERVICE AREANorth America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
