| Prod Model: |
BIC-354.1744-V1 |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Processing Technology: |
HASL |
| Base Material: |
Copper Clad Laminate |
| Brand: |
Bicheng |
Product Description

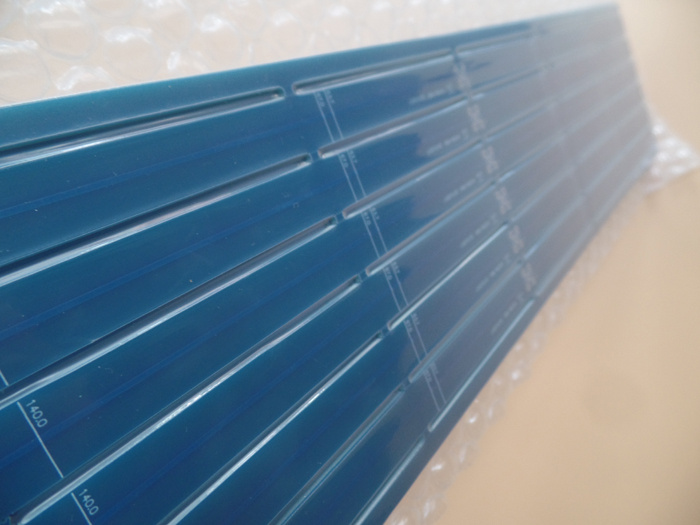

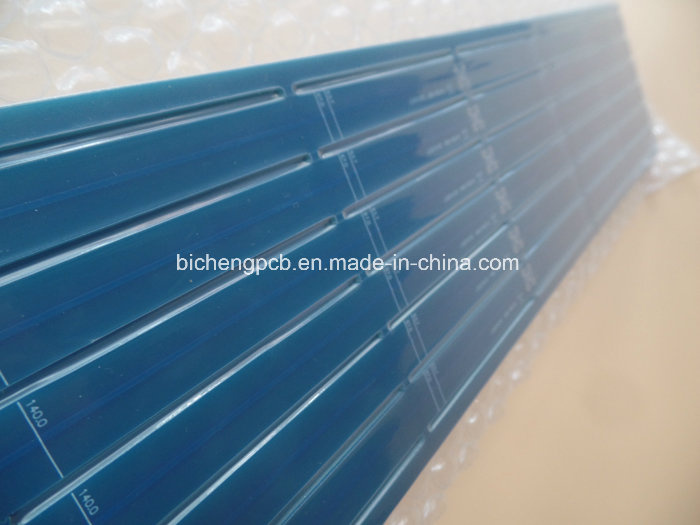

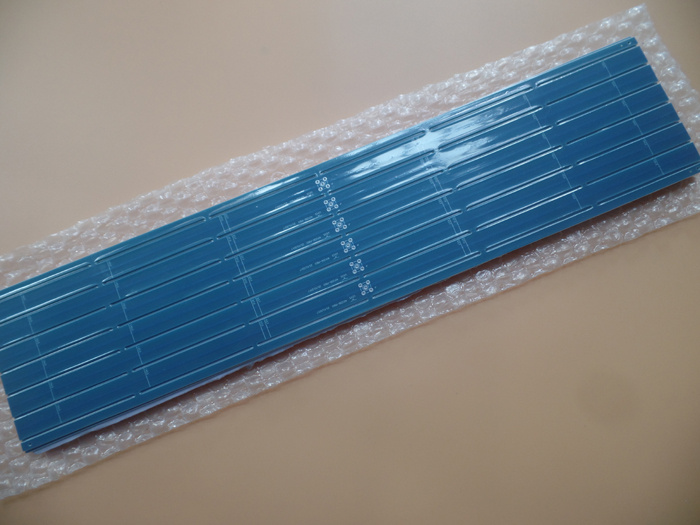

Long Circuit Board With Matt Blue Solder Mask
Commodity IntroductionThis is a type of 2 layer PCB circuit board at 1.6mm thick for the application of Multicoupler. The base laminate is from ITEQ FR-4 IT158, with matt blue solder mask and White silkscreen on board. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.
Parameter & Data Sheet| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Thickness | 1.60 mm +/-0.16 |
| Board Material | FR-4 IT158 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, KSM-S6189BLM1 |
| Solder Mask Supplier | KUANG SHUN |
| Solder Mask Colour | Matt Blue |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13 um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 10 mil |
| Minimum Gap(mil) | 12 mil |
| |
| Surface Finish | HASL Lead Free |
| RoHS Required | Yes |
| Warpage | 0.25% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 24.301 | 23.101 | 23.161 | 24.801 | 24.081 | 23.711 | 23.860 |
| 2 | 24.265 | 23.063 | 23.125 | 24.765 | 24.045 | 23.675 | 23.824 |
| 3 | 24.240 | 23.040 | 23.100 | 24.740 | 24.020 | 23.650 | 23.799 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 440.00 | ±0.15 | 439.88 | 440.10 | 439.92 | 439.92 |
| 2 | 96.00 | ±0.15 | 95.90 | 96.11 | 95.98 | 96.10 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 1.500 | ±0.076 | Y | 1.500 | 1.475 | 1.525 | 1.500 |
| 2 | 2.000 | ±0.076 | N | 2.000 | 1.975 | 2.025 | 2.000 |
