| Prod Model: |
DXP1010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
1000W |
| Surge Power: |
2000W |
| Output Frequency: |
50/60Hz |
| Output Waveform: |
Modified Sine Wave |
| No Load Current Draw: |
<1.2A <0.7A |
| Input DC Voltage Range: |
DC10V-15.5V DC20V-30V |
| Output Voltage Range: |
AC220+/-5% |
| Output Frequency Range: |
50+/3Hz |
| Max Power Efficiency: |
>90% |
| Low Voltage Cut Off Level: |
|
| Power Source: |
Electric Power |
| Phase: |
Single |
Product Description

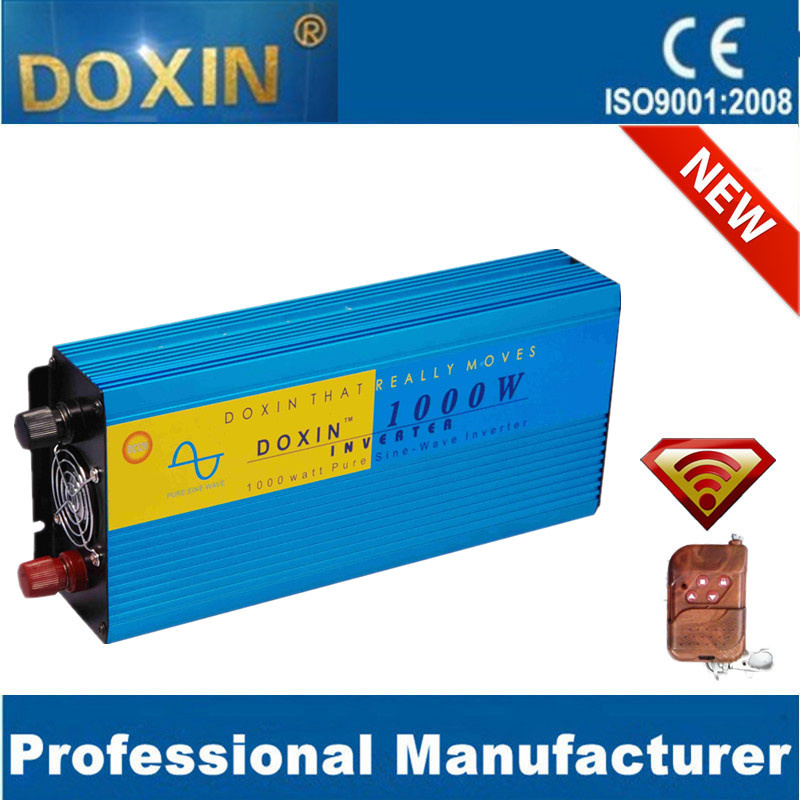

HOT SALE 1000W DC to AC pure sine wave inverter with best quality(DXP1000)
Feature:
1)Compact and light weight
2)pure sine wave output
3)High efficiency
4)Voltage overload protection
5)High output current surge
6)Low battery alarm / shut down
7)With Cooling Fan
Protection Funtion:
1. Buzzer Alarm
2. Over-Load Protection
3. Over-Voltage Protection
4. Low-Voltage Protection
5. Over-Temperature Protection
6. Short-circuit protection
Indicator:
Normal output: Green light
Audible Alarm for Battery Low: Red light flash
Off signal for Battery Low: Red light
Over output protection: After 30 minutes, yellow light flash, shutdown, restart, 15 minutes after the light is yellow
Over load protection: 5 seconds after the yellow light flash, shutdown, restart after 15 minutes
Temperature protection: Yellow light
Application:
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electricalappliances.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product category
Car inverter
Pure sine wave invertre
Modify sine wave inverter
Solar energy power source
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
Item No. |
DXP1000 |
|
* Max continuous power: |
1000W |
* Peak Load Power Rate: |
2000W |
* NO load current draw: |
<1.2A <0.7A |
* Input DC voltage Range: |
DC10V-DC15.5V DC20V-30V |
* Output Voltage Range: |
AC220+/-5% |
* Output Frequency Range: |
50/60+/- 3Hz |
* Max Outer Temperature: |
< 65°C |
* Max Power Efficiency: |
> 86% |
* High Voltage Cut Off Level: |
>DC15V±1V |
* Low Voltage Alarm Level: |
DC 10.5±0.3V |
* Low Voltage Cut Off Level: |
DC10V±0.3V |
* Overload and Short-circuit Protection |
yes |
* Input Voltage: |
DC12V |
* Output waveform: |
Pure sine wave |
* Cooling: |
Fan |
* Product Size: |
320*150*70 |
* Packing size(40pcs/ctn) |
49*46*47cm |
* N.W: |
2550G |
* G.W: |
3.35kG |
