| Prod Model: |
DXP100H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Welcome |
| Wave Form: |
Modified Sine Wave |
| Warranty: |
1 Year |
| Small Order For Testing: |
Acceptable |
| Shell: |
Aluminum Alloy |
| Mulit-Protection: |
Yes |
| Output Waveform: |
Modified Sine Wave |
| Color: |
Sliver |
| Brand: |
Doxin |
| Application: |
Car |
Product Description

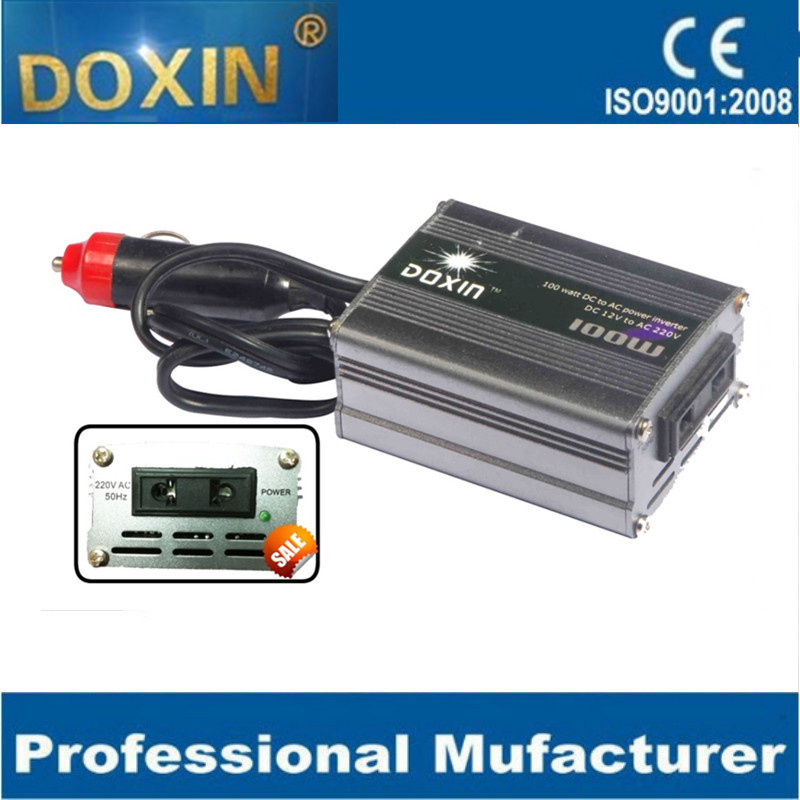

100W ower inverter(100W DC 12V to AC 220V)
Model: DXP100H
PRODUCT DESCRIPTION
Modified Sine Wave Power Inverter 10W DC 12V to AC 220V power converter
Technical Data:
Aluminum alloy casing
Includes one AC outlet
Output power: 100W
Input voltage: DC 12V
Output voltage: AC 220V
Compatible with electric devices under 100W
By the vector control to achieve high start-up power and steady low-speed power easily and afford you the best drive unit
Features:
Operate home or office electrical products from a vehicle or boat. Supplies 100W of AC 220V power from a 12V outlet or battery.
1. Provides 100W of AC power and 200W surge power
2. Audio alarm warns of low battery level prior to auto shut down
3. Safely shuts down if over temperature or overload condition
4. Operate a 13" TV for about 5 hours from a typical car battery
How to determine what products the 100W power
Volts: 220V
AMPS: 0.45
Watts: 100W
Regarding vehicle-use power inverter, besides 100W, we also have 80W, 160W, 150W, 300W, 500W, 800W, 1000W 1200W, 1500W and 2000W
Mark: 1. For power inverter 500W, 600W, 800W, they should be with below 100AH car battery, to protcet the battery.
2. For inverter 1000W and above 1000W, they should be with above 150AH car battery, to make them get charged rapidly and protect the battry.
3. Adapt to various electrical appliance, like TV, DVD, fridge, air condition, computer, daylight lamp and so on
| Item No. | DXP100H | |
| * Max continuous power: | 100W |
| * Peak Load Power Rate: | 200W |
| * NO load current draw: | <0.3A |
| * Input DC voltage Range: | DC9.7V-15.5V |
| * Output Voltage Range: | AC220+/-5% |
| * Output Frequency Range: | 50+/- 3Hz |
| * Max Outer Temperature: | < 65 °C |
| * Max Power Efficiency: | > 90% |
| * High Voltage Cut Off Level: | 14.5V-15.5V |
| * Low Voltage Alarm Level: | DC 10.4-11.V |
| * Low Voltage Cut Off Level: | DC 9.7V-DC10.3V |
| * Overload and Short-circuit Protection | yes |
| * Input Voltage: | DC12V |
| * Output waveform: | Modified sine wave |
| * Cooling: | Natural |
| * Product Size: | 92*63*38mm |
| * Packing size(40pcs/ctn) | 49*31*39cm |
| * N.W: | 242.7g |
| * G.W: | 298.9g |
Guangzhou Doxin Electronic Factory is a manufacturer specialized in automobile electronic products. Currently, we mainly produce Car Power Inverter, Solar charge controller, Battery charger, transformer, Power adapter, Mobile phone charger, car emblem badge, wheel center cap, tire valve cap, car wheel sticker, car logo keychain which was established at the beginning of 1998.
We utilize advanced encrypting technologies, full automatic production line, Multi function testing. With features of "high efficiency, detection function, intelligent and environmental protection and energy saving", Products meet EU RoHS Green Directives, and wildly used in Car, Home furnishing, Outdoor, Travel, Patrol, Fieldwork ect.
Our production base with the perfect size was built and the base passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK. Modern factories, outstanding management and advanced technology become the best guarantee of product quality. Our products are selling well in our country, Europe, the United States, Middle East, Southeast Asia and other area with unique and innovative design, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R & D and production experience, OEM service. Our company has become one of the famous power inverter manufacturers in China.
Our Company continued to expand into international markets, at the same time, efforts to develop the domestic market, "DOXIN" products have caused widespread concern in the industry through the domestic marketing system, such as dealer network, OEM market. Car owners comprehensive experience to DOXIN forefront automotive technology products, which bring them convenience and happiness, once again demonstrates the strength and determination of the Guangzhou DOXIN electronic factory.
Adhering to the business principle of "Achieve Mutual Benefits from Good Cooperation", our employees are looking forward to establishing business relationships with clients both in the domestic and the overseas markets.
